Terminals And Reference Value For BCM
Terminals And Reference Value For BCM

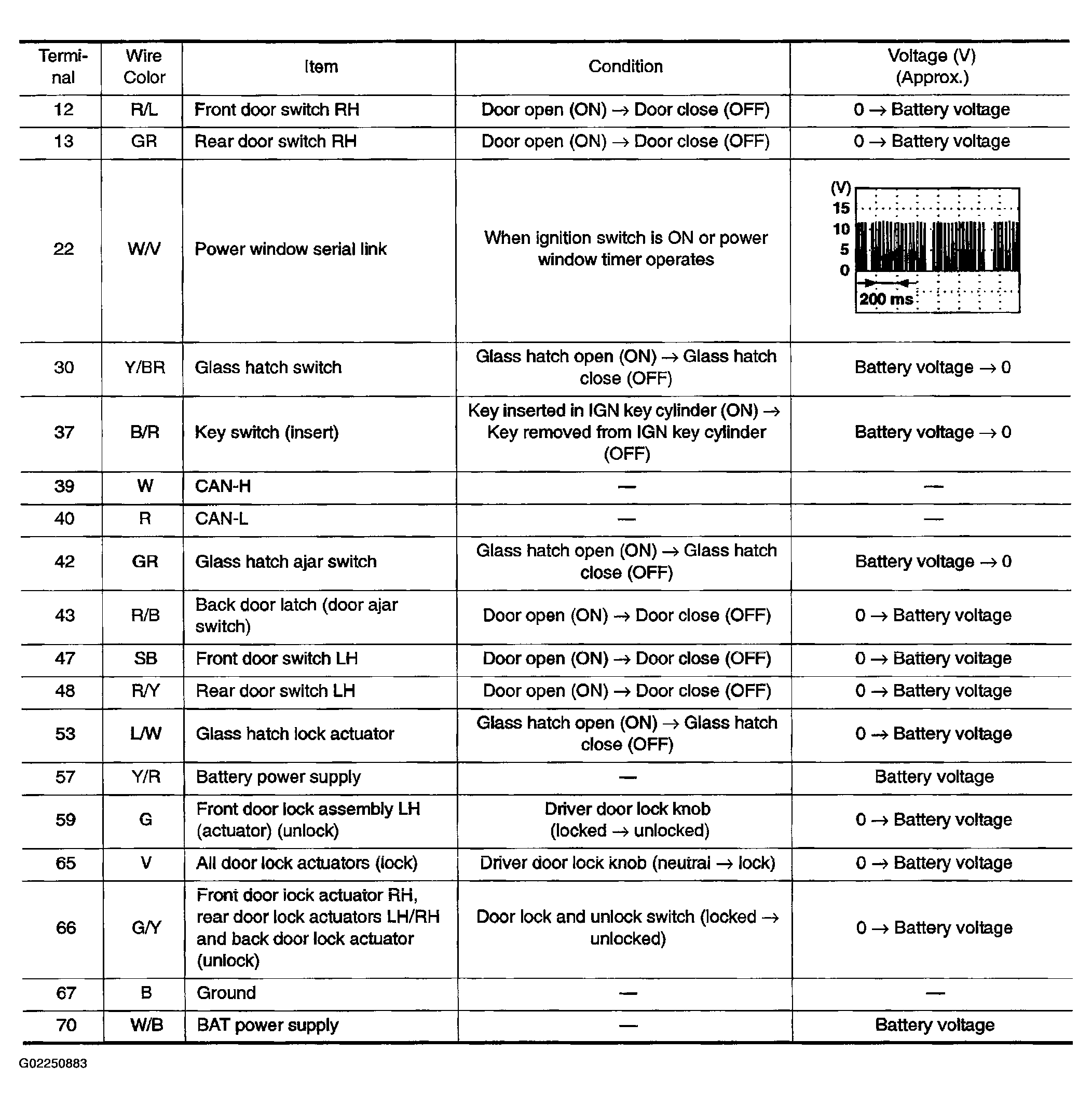

Fig 1: Terminals And Reference Value For BCM Table
Courtesy of NISSAN MOTOR CO., U.S.A.
