CONSULT-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

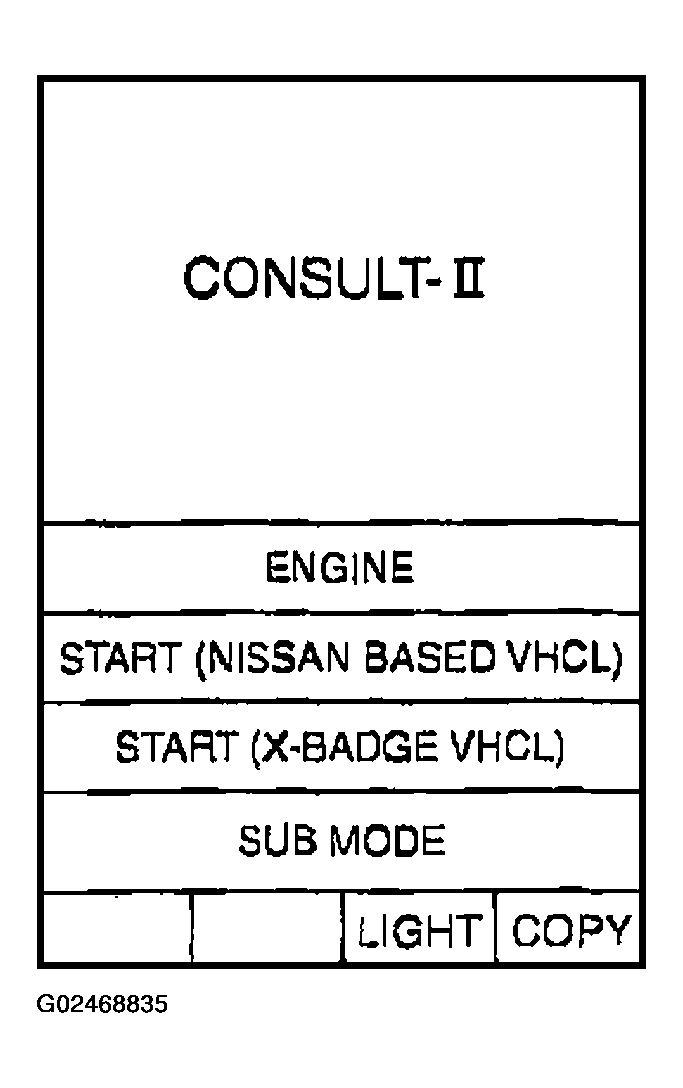

Fig 2: Displaying CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch AUTO DRIVE POS and BCM.
If AUTO DRIVE POS. is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Displaying CONSULT-II SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.

DATA MONITOR, ACTIVE TEST, SELF-DIAG RESULTS, ECU PART NUMBER and WORK SUPPORT are available.

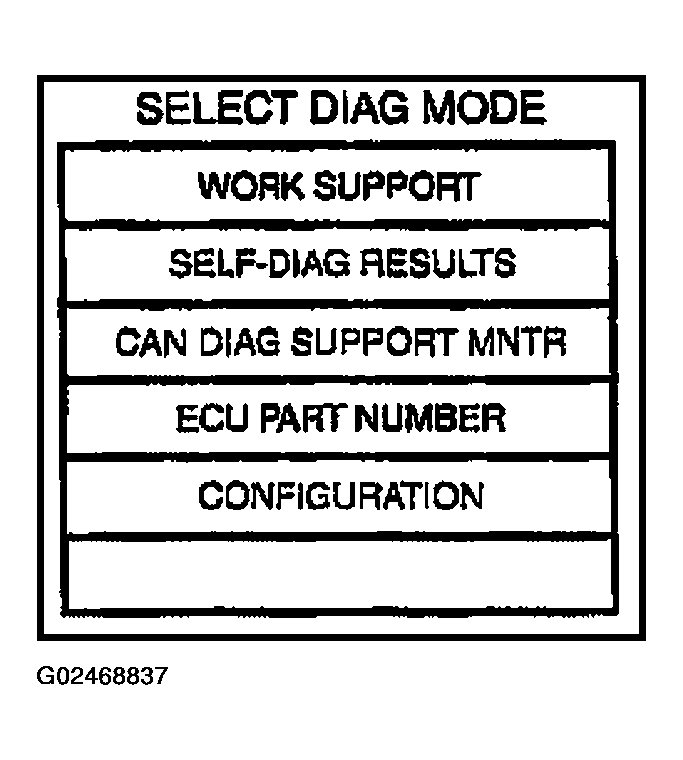

Fig 4: Displaying CONSULT-II SELECT DIAG MODE Screen
