Solenoid Valve Operation Chart

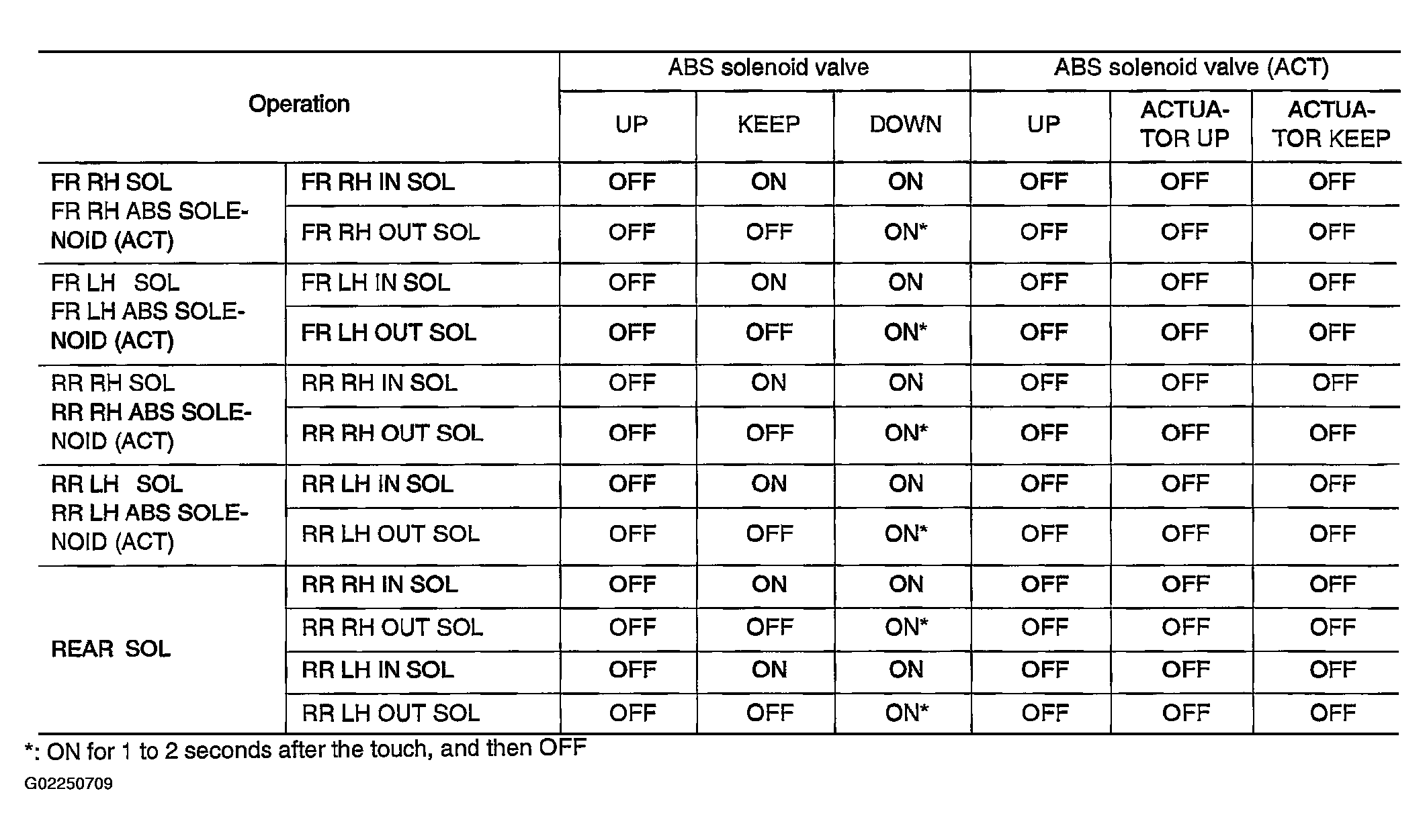

Fig 1: Solenoid Valve Operation Chart

G02250709

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
After "TEST IS STOPPED" is displayed, to perform test again, repeat Step 6.
