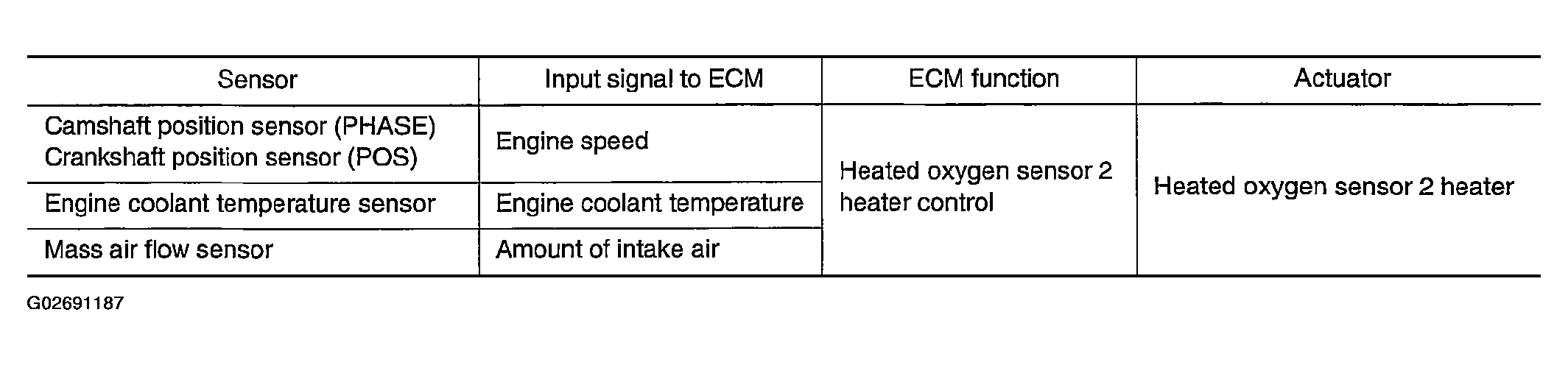

Fig 1: Heated Oxygen Sensor 2 Heater - System Description
Courtesy of NISSAN MOTOR CO., U.S.A.
The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed, amount of intake air and engine coolant temperature.
