DTC P0181: FTT Sensor: Wiring Diagram

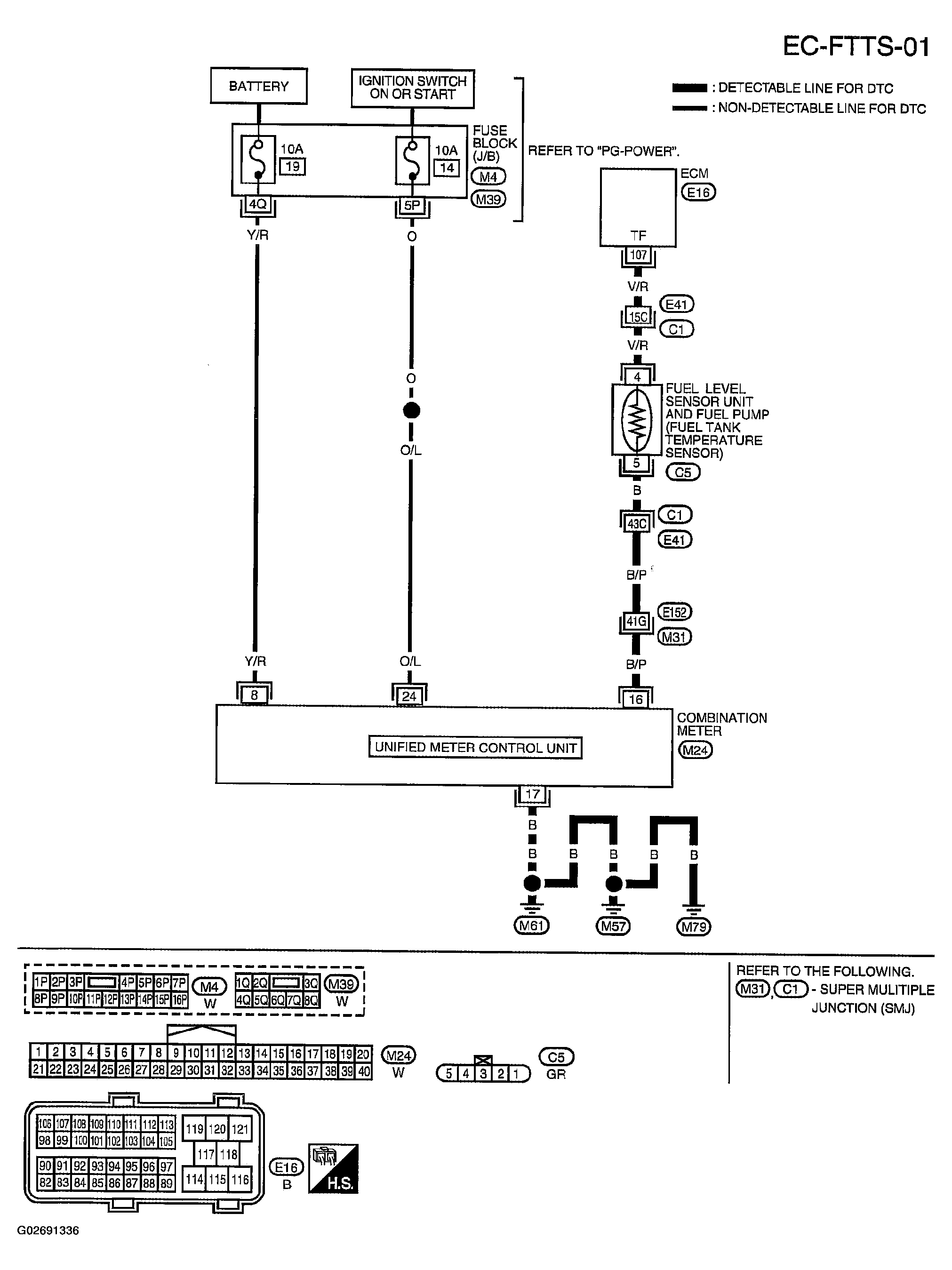

Fig 1: DTC P0181 FTT Sensor - Wiring Diagram - EC-FTTS-01
G02691336Courtesy of NISSAN MOTOR CO., U.S.A.
