DTC P0335: CKP Sensor (Pos)
›
On Board Diagnosis Logic
On Board Diagnosis Logic

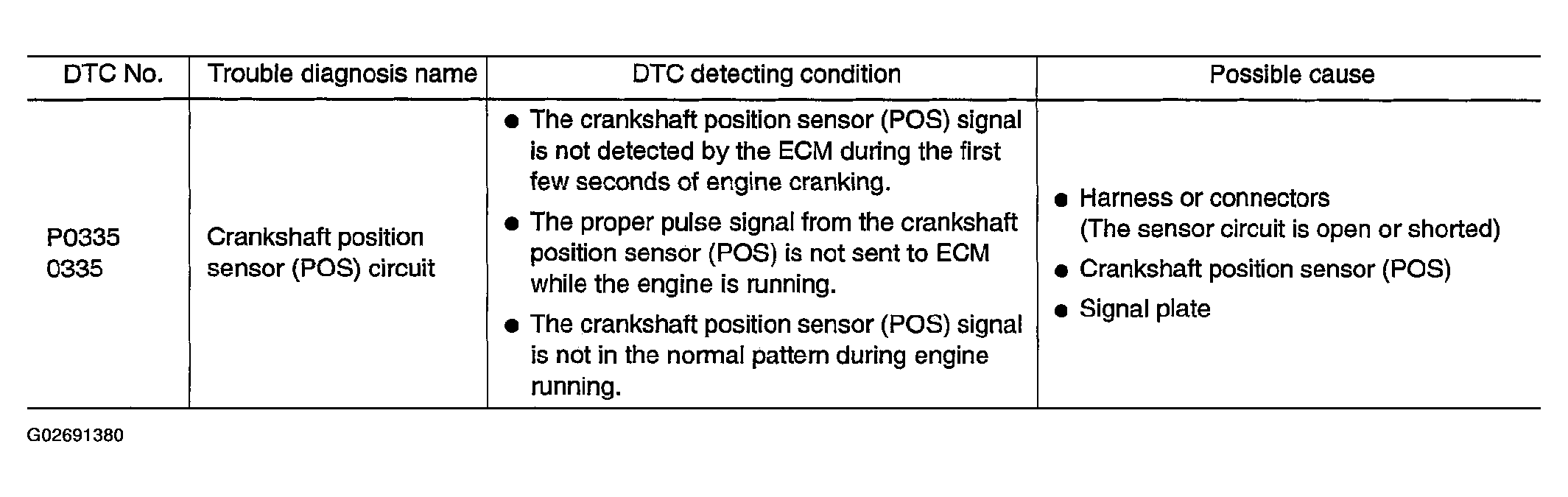

Fig 1: DTC P0335 CKP Sensor (POS) - On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
