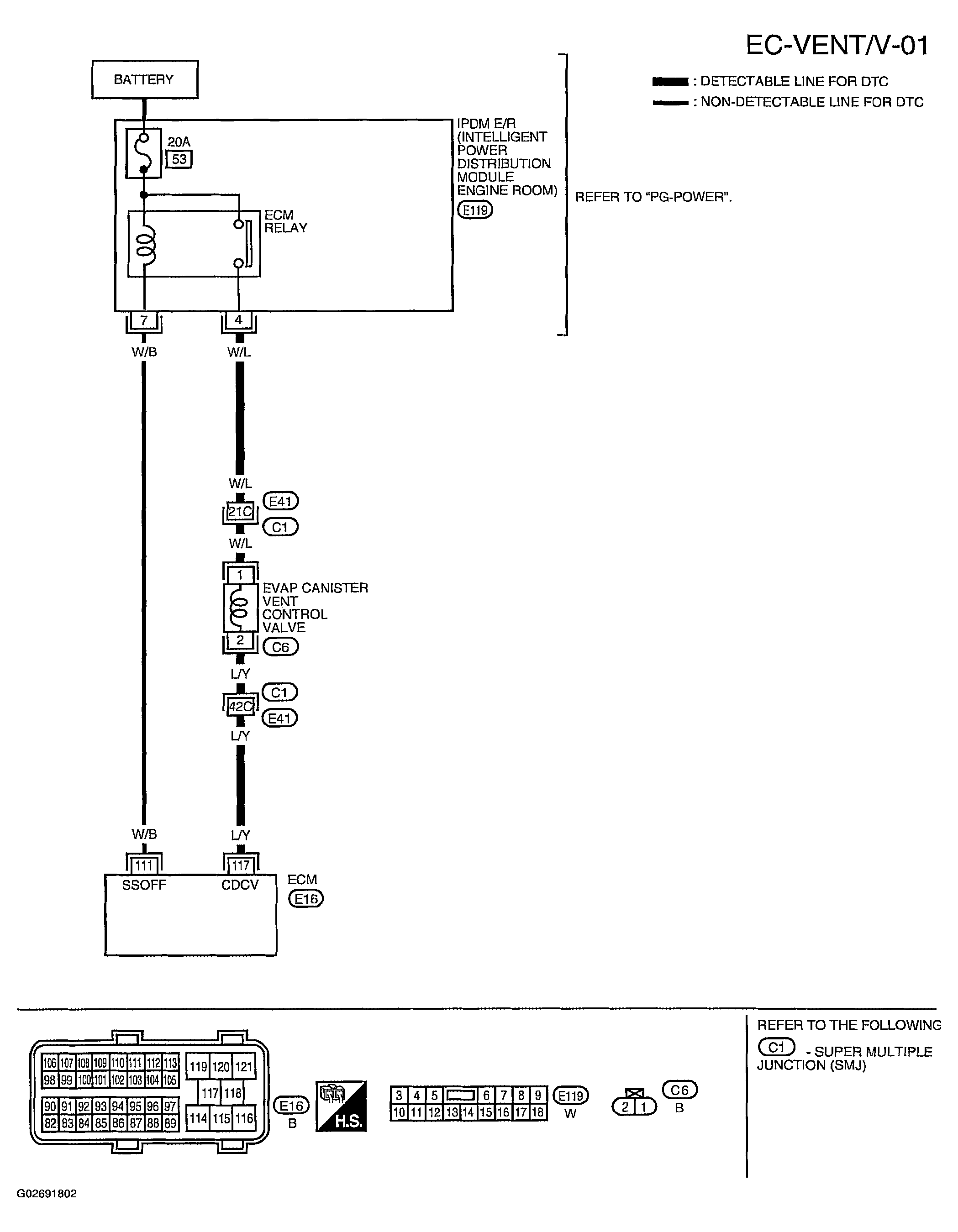

DTC P1446: EVAP Canister Vent Control Valve: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINAL NO AND CONDITION
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 117 | R/Y | EVAP canister vent control valve | [Ignition switch: ON] | BATTERY VOLTAGE (11-14V) |
