DTC U1000, U1001: Can Communication Line
›
Wiring Diagram
DTC U1000, U1001: Can Communication Line: Wiring Diagram

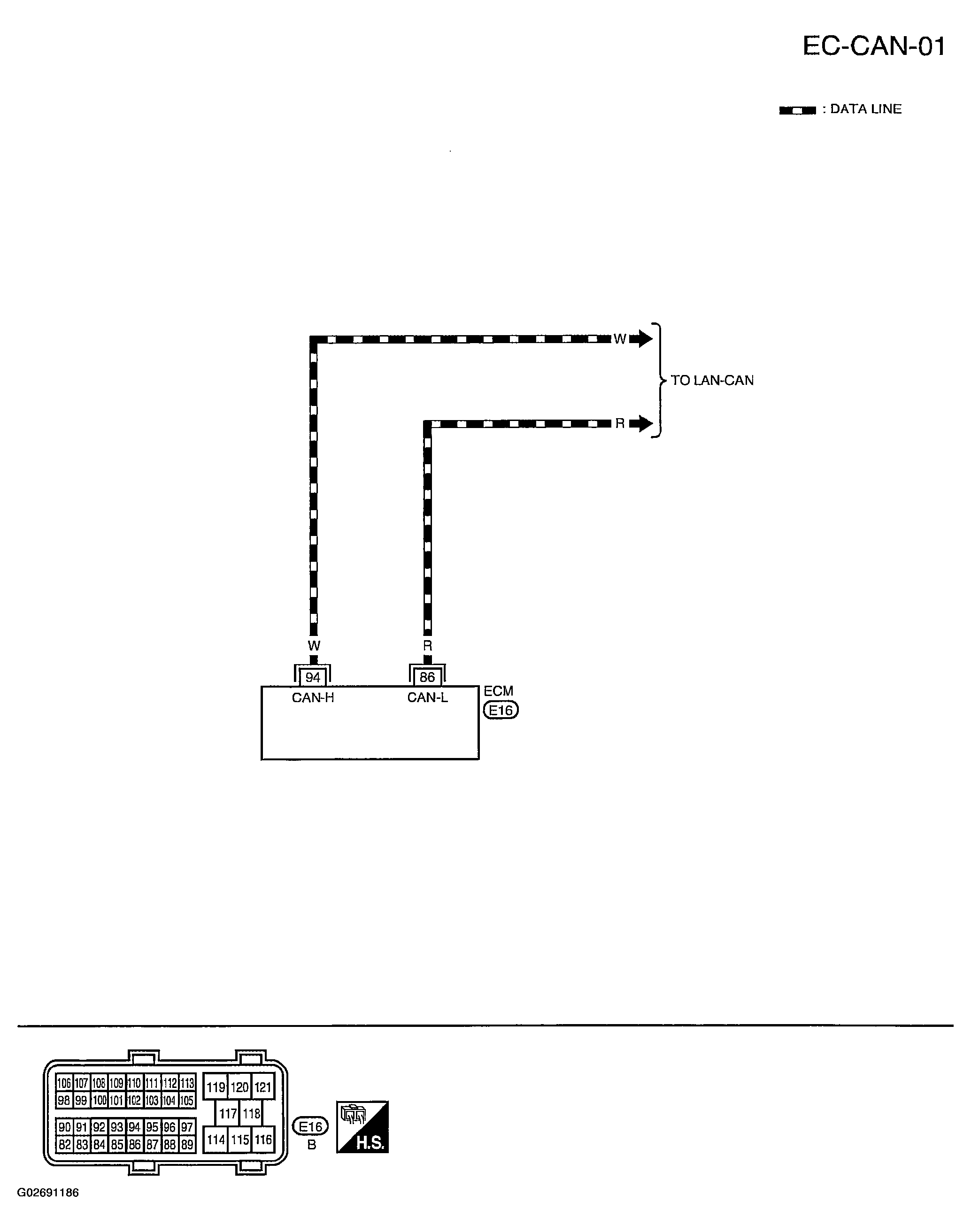

Fig 1: CAN Communication Line - Wiring Diagram - EC-CAN-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
