Engine Control System
›
Mil And Data Link Connector
›
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram

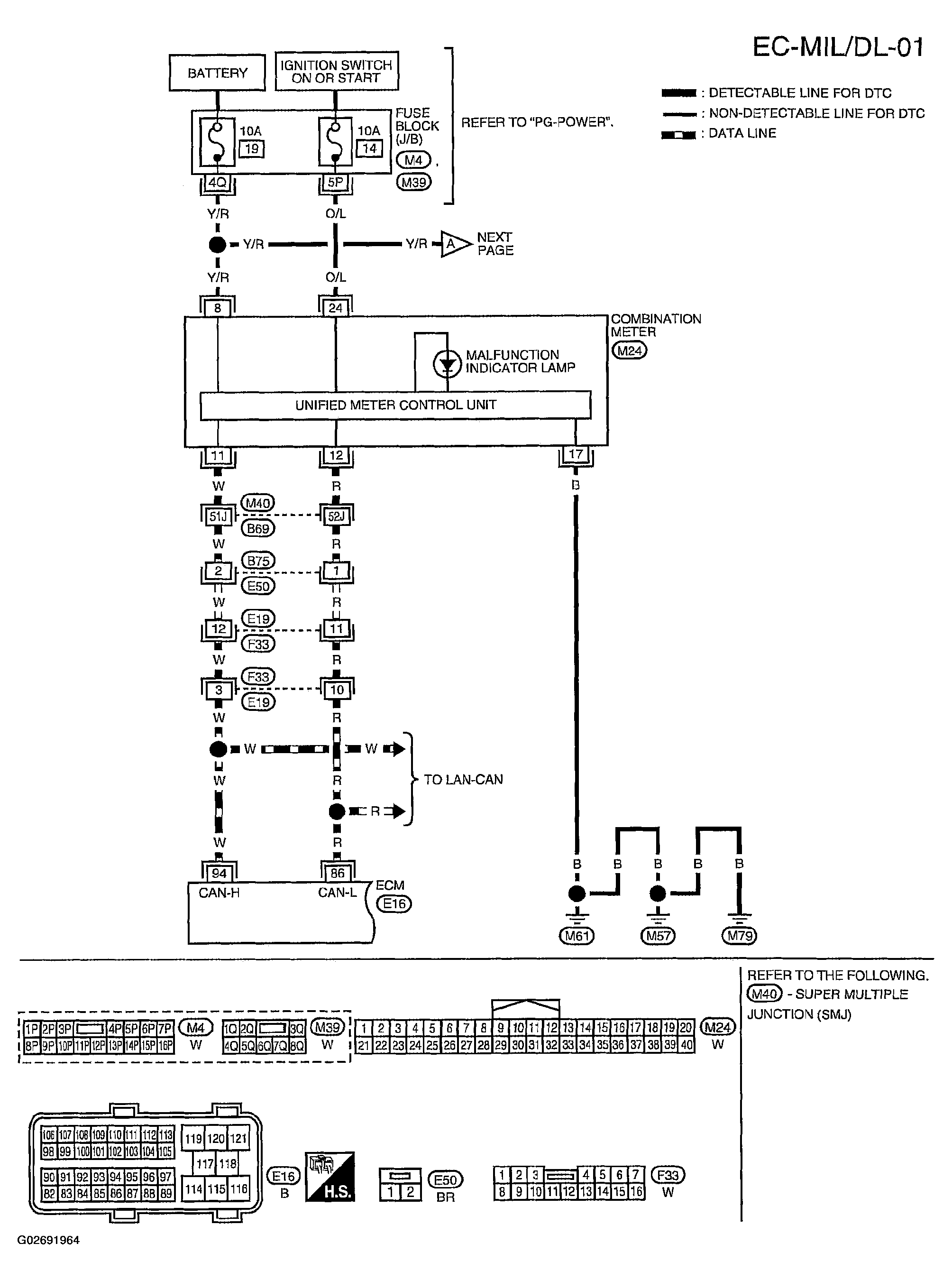

Fig 1: MIL And Data Link Connector Wiring Diagram (1 Of 2) - EC-MIL/DL-01
Courtesy of NISSAN MOTOR CO., U.S.A.

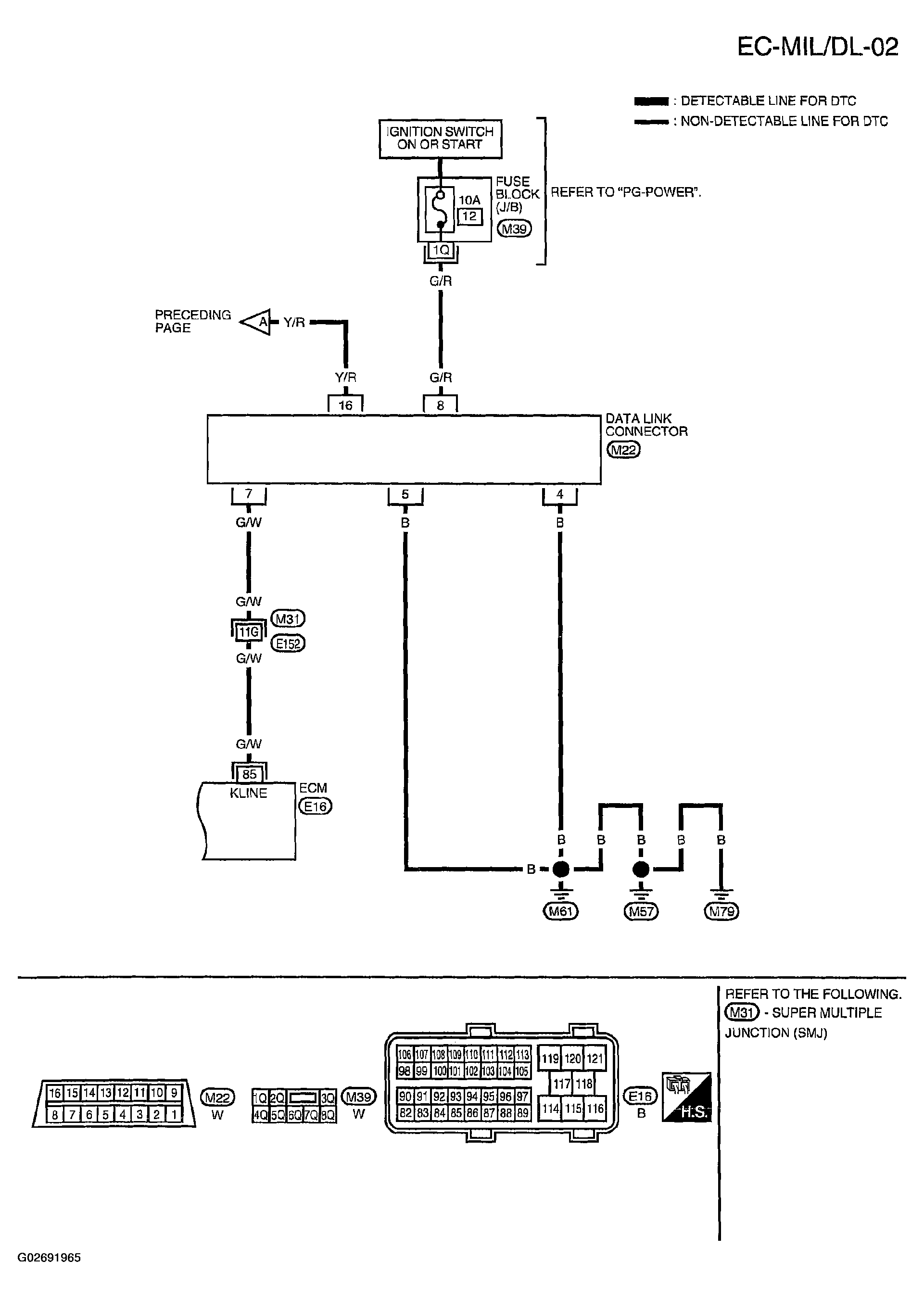

Fig 2: MIL And Data Link Connector Wiring Diagram (2 Of 2) - EC-MIL/DL-02
Courtesy of NISSAN MOTOR CO., U.S.A.
