Emission-related Diagnostic Information: Notes

EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS

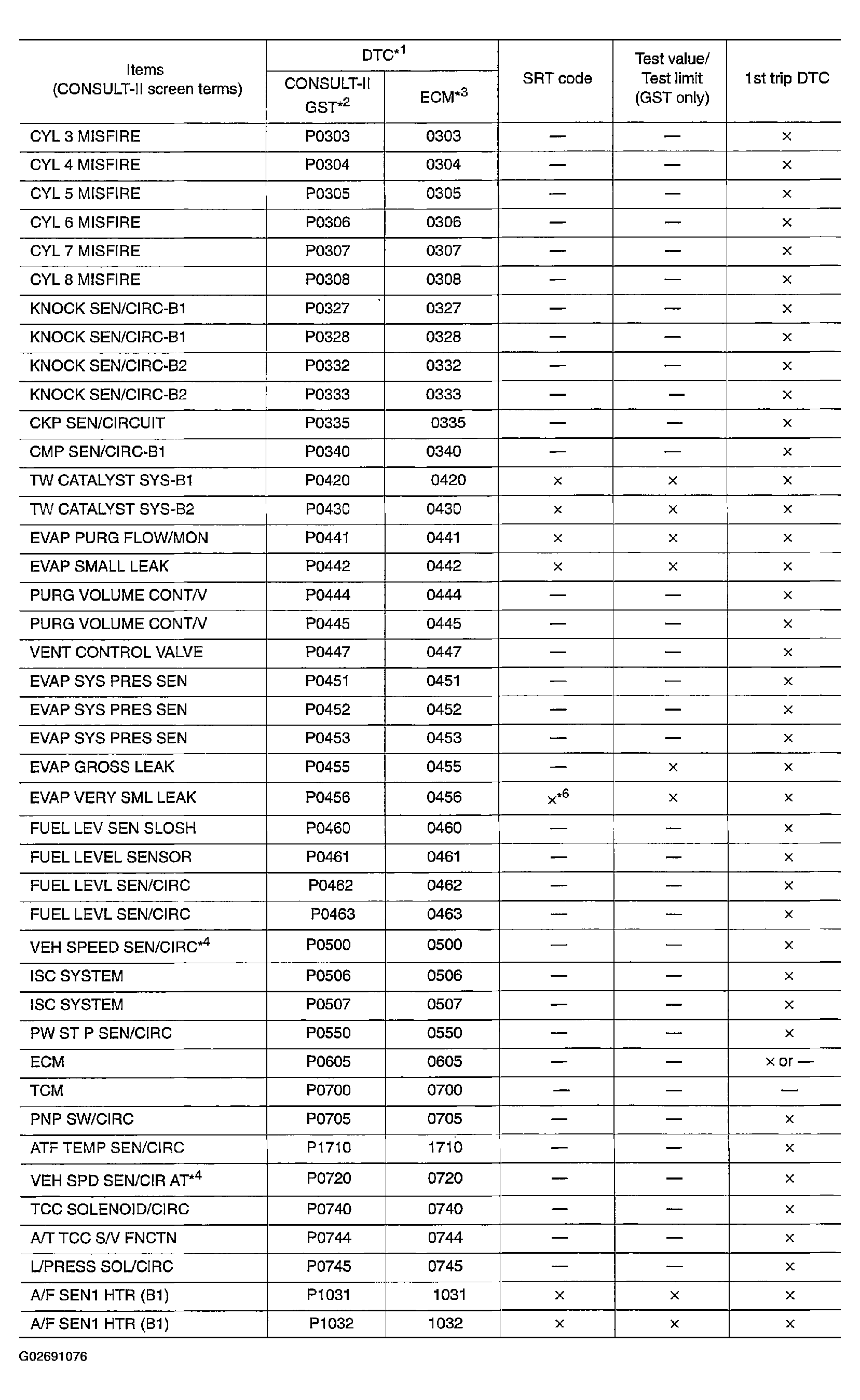

Fig 1: Emission-Related Diagnostic Information Items (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

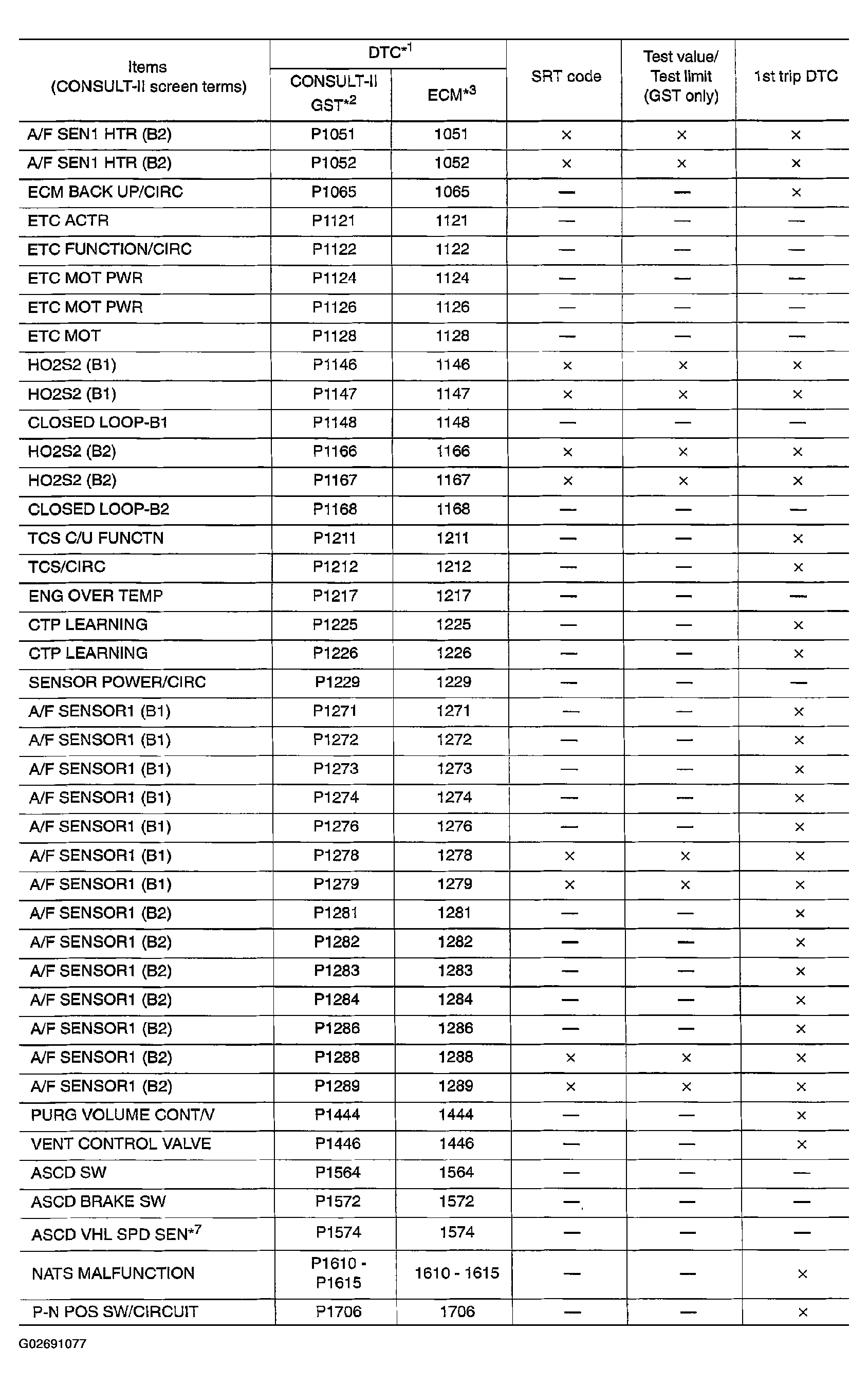

Fig 2: Emission-Related Diagnostic Information Items (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Emission-Related Diagnostic Information Items (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

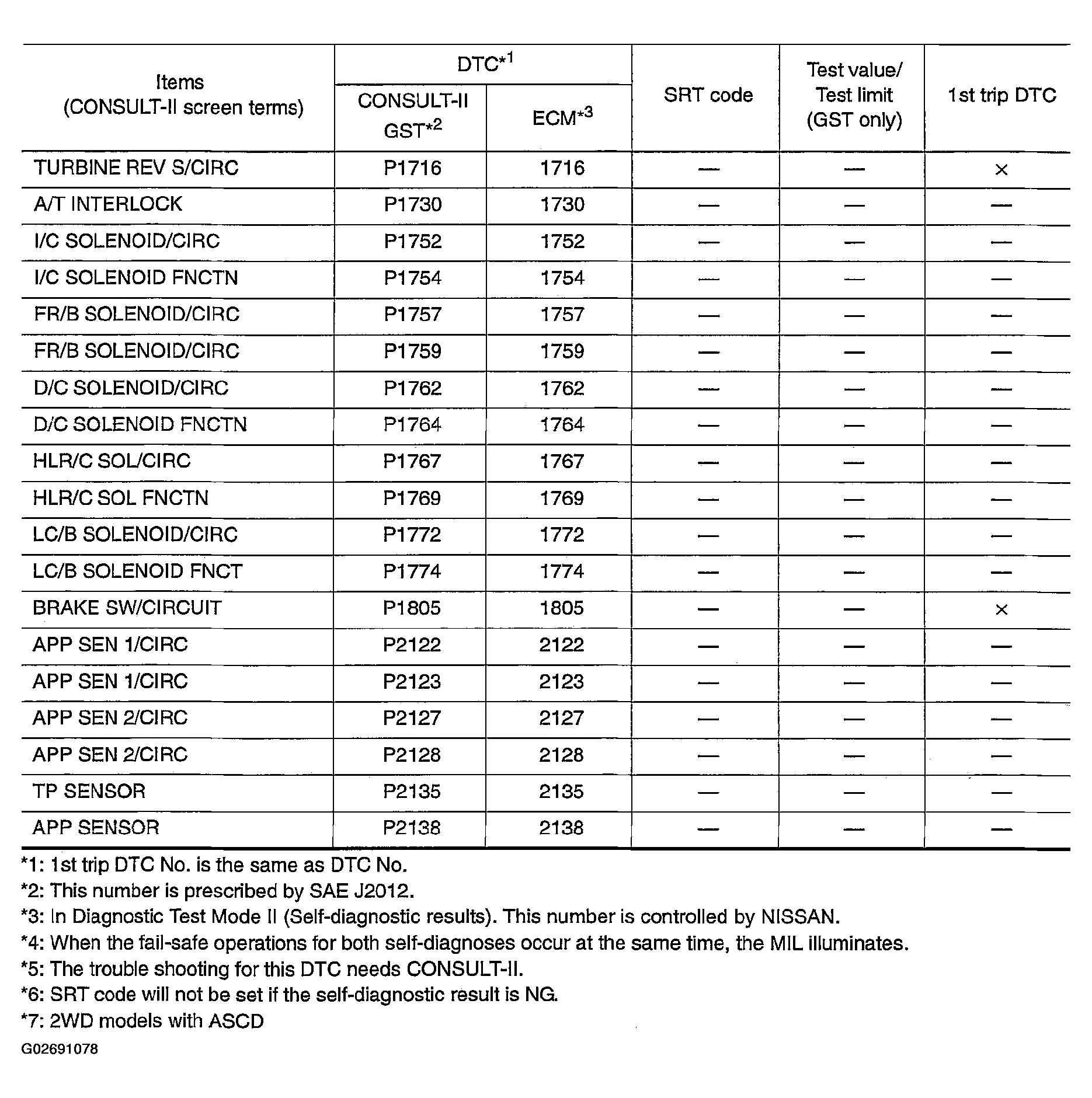

Fig 4: Emission-Related Diagnostic Information Items (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
