Infiniti
›
2004
›
QX56 AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram

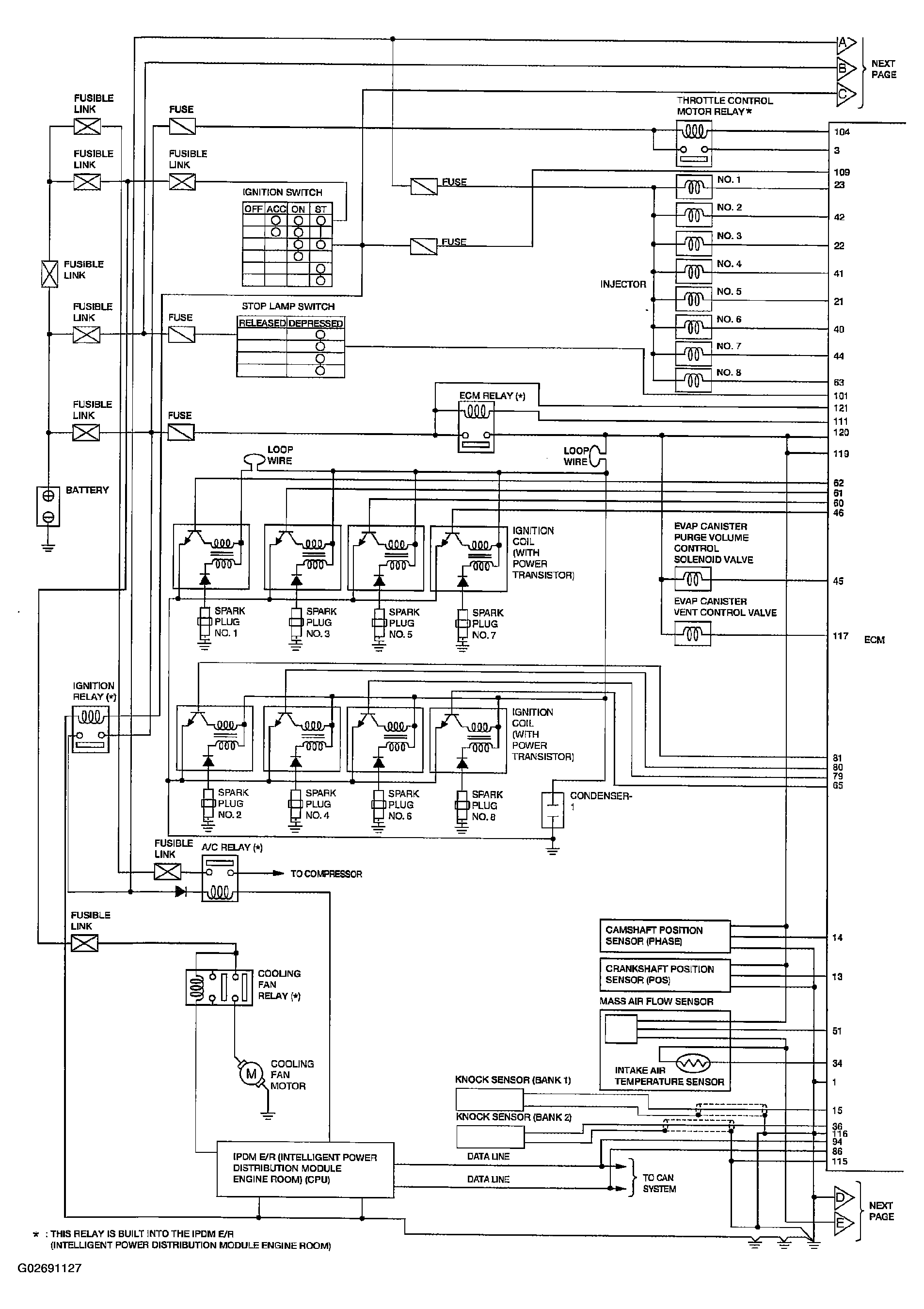

Fig 1: Circuit Diagram - Engine Control (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

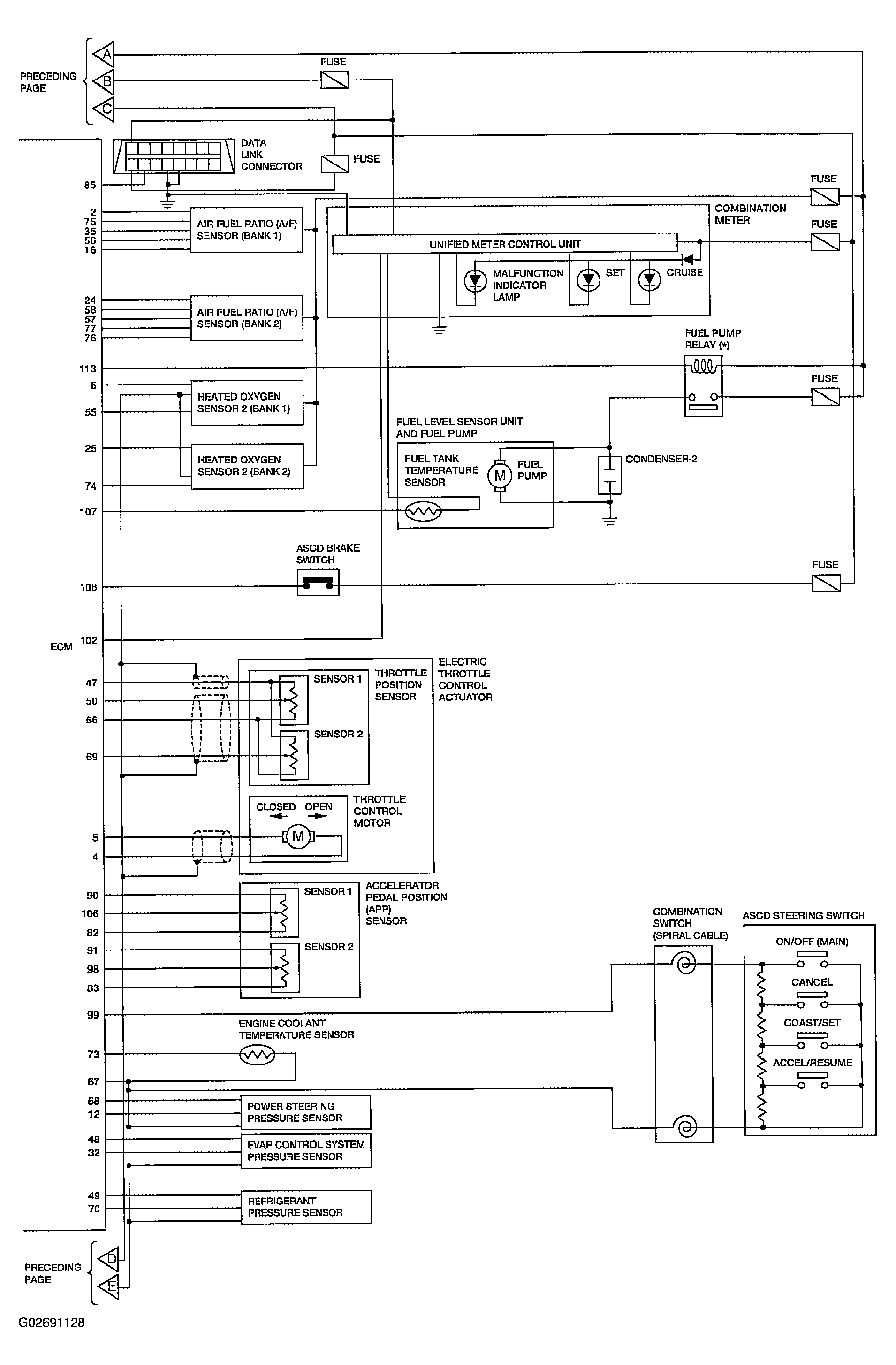

Fig 2: Circuit Diagram - Engine Control (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
