Work Flow
Work Flow
Flow Chart

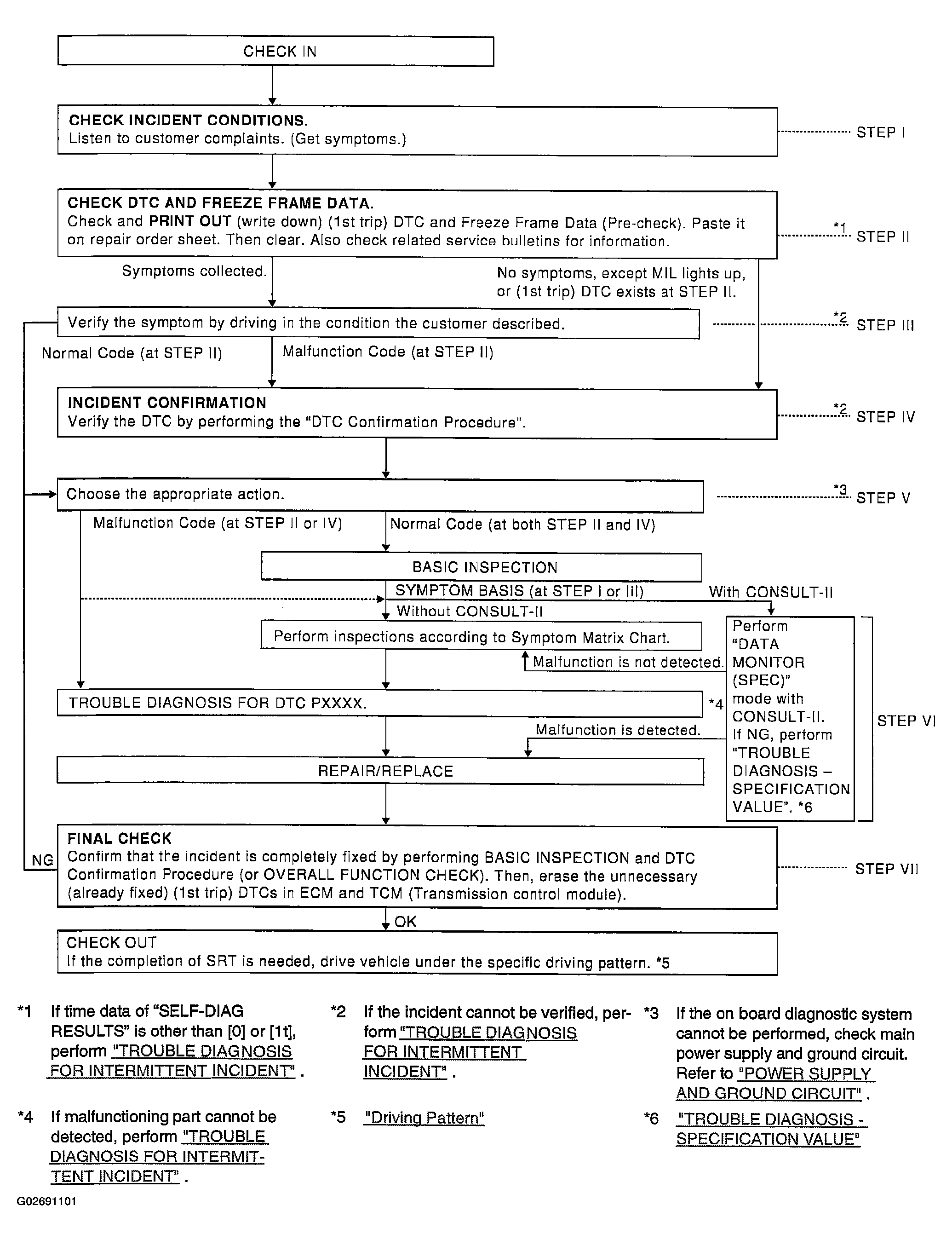

Fig 1: Trouble Diagnosis - Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Description for Work Flow

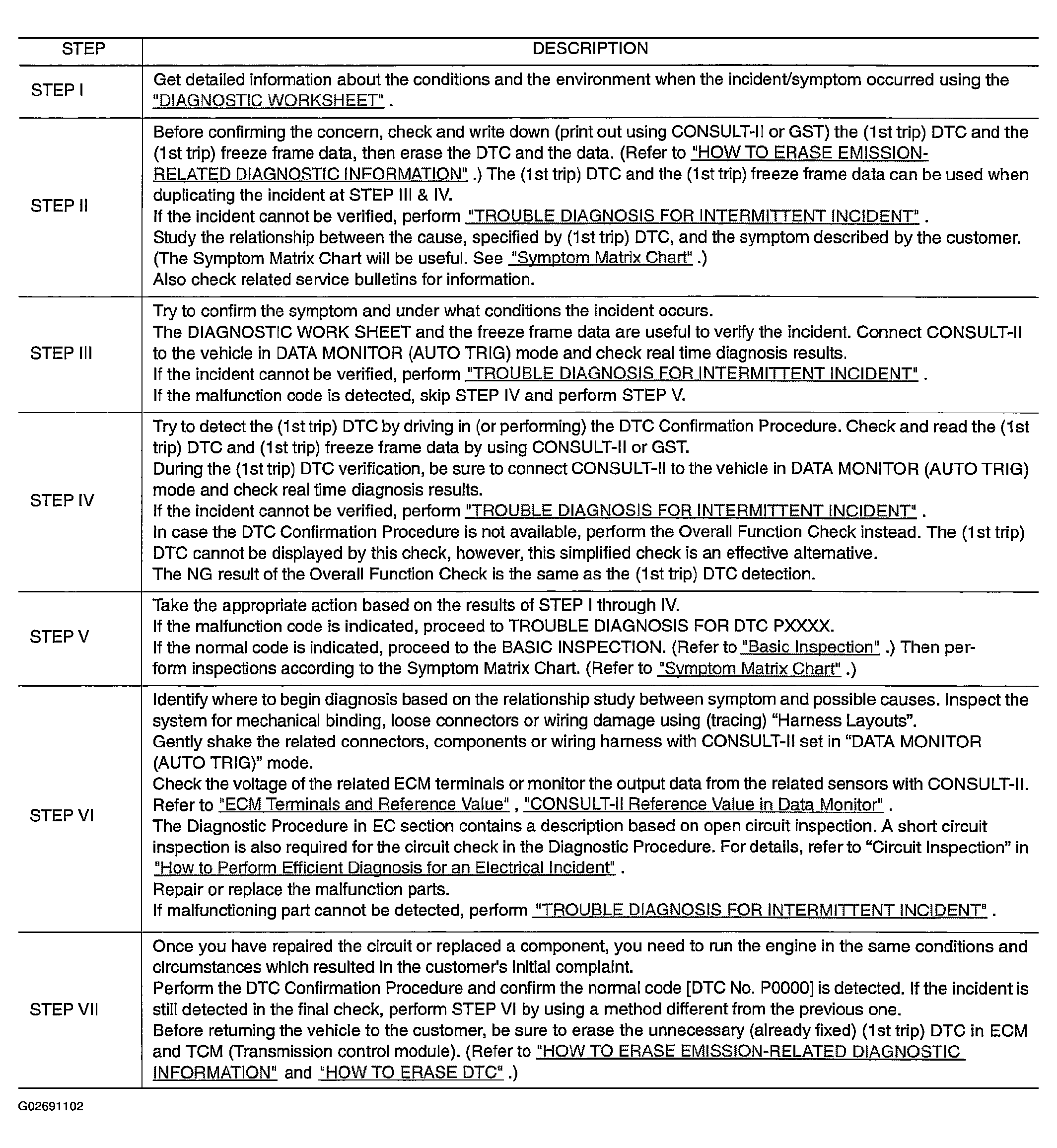

Fig 2: Description For Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
