Terminals and Reference Values for ICC Sensor

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

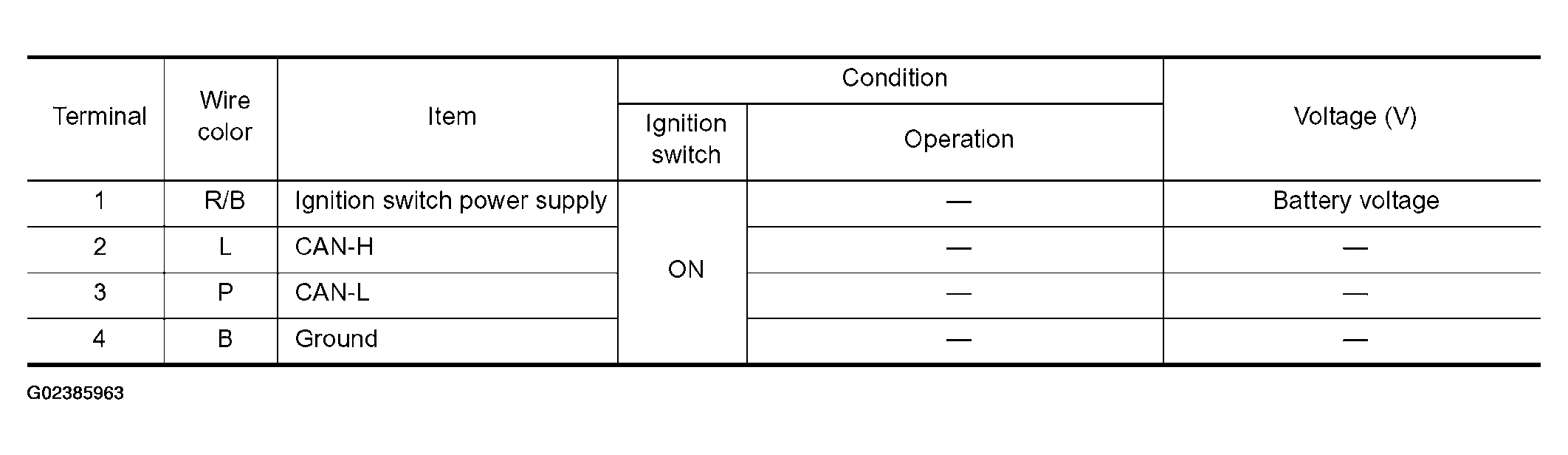

Fig 1: ICC Sensor Terminals And Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
