Component Locations

WARNING: This page is about a different car, the 2002 Pontiac Grand Am and 2002 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component locations, refer to illustrations. See Fig 2 -Fig 4 .

COMPONENT LOCATIONS

Component	Location
Brakelight Switch	On Brake Pedal Bracket. See Fig 1
Cruise Control Clutch Switch	On Clutch Pedal Bracket
Cruise Control Functional Switches	On Steering Wheel
Cruise Control Module	Passenger Side Front Corner Of Engine Compartment. See Fig 2
Driver Side Instrument Panel Fuse Block	Driver Side End Of Instrument Panel
Powertrain Control Module	Under Driver Side Of Instrument Panel. See Fig 3
Passenger Side Instrument Panel Fuse Block	Passenger Side End Of Instrument Panel
Torque Converter Clutch/Brakelight Switch	On Brake Pedal Bracket. See Fig 1

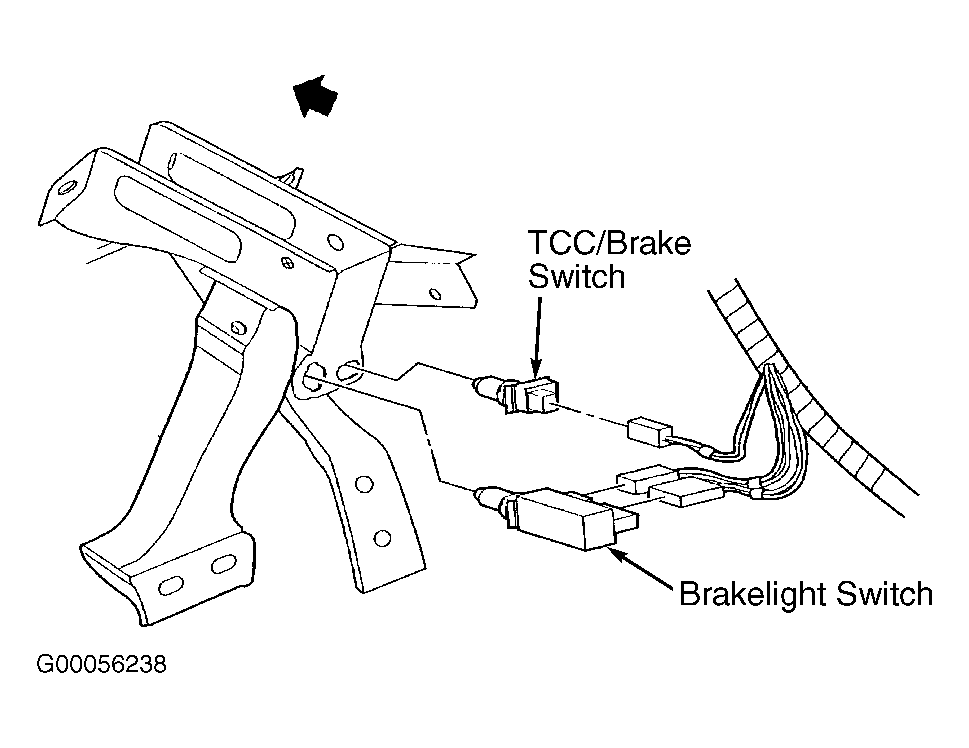

Fig 1: Locating Torque Converter Clutch/Brakelight Switch & Stoplight Switches

Courtesy of GENERAL MOTORS CORP.

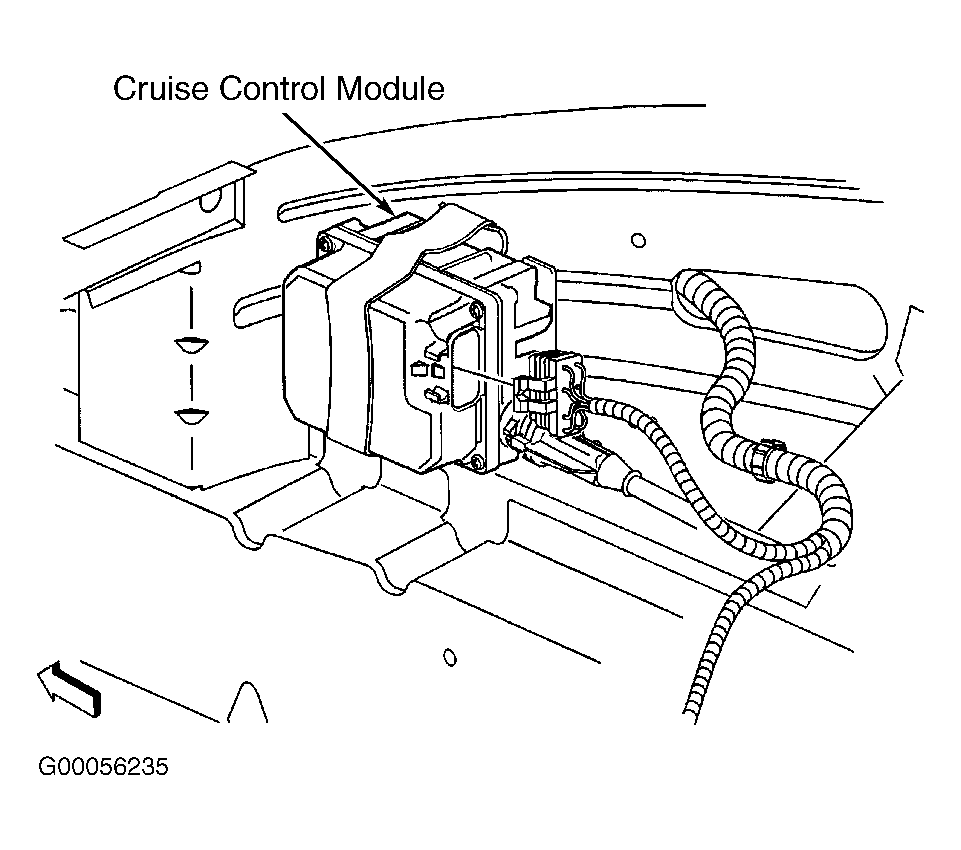

Fig 2: Locating Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

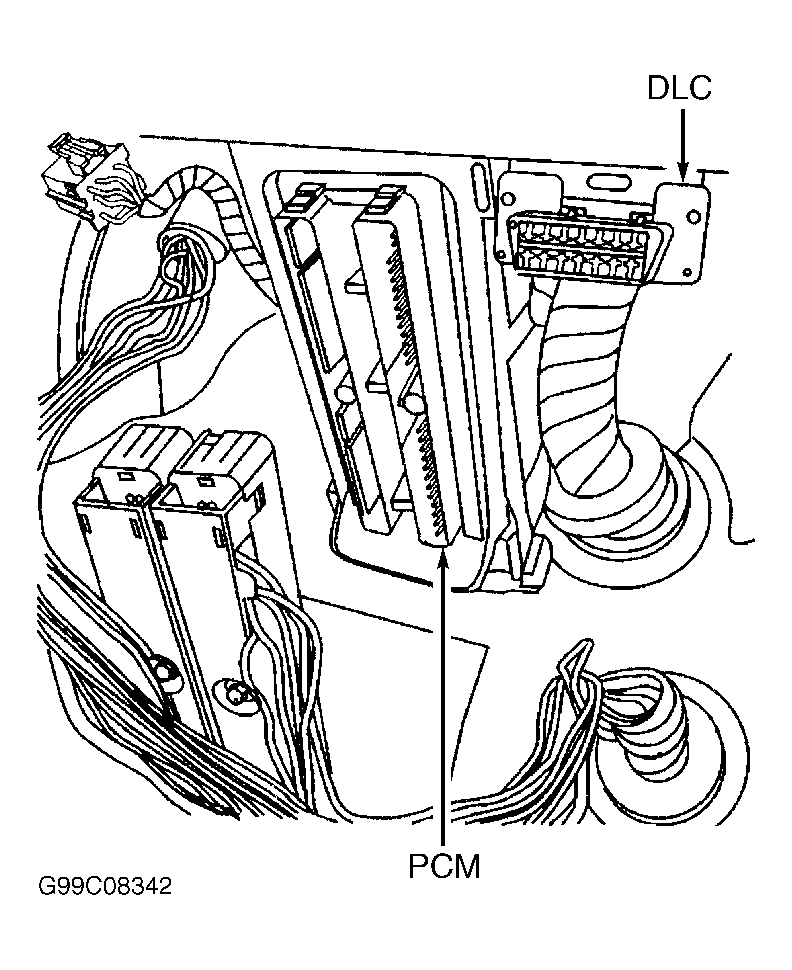

Fig 3: Locating Powertrain Control Module

Courtesy of GENERAL MOTORS CORP.

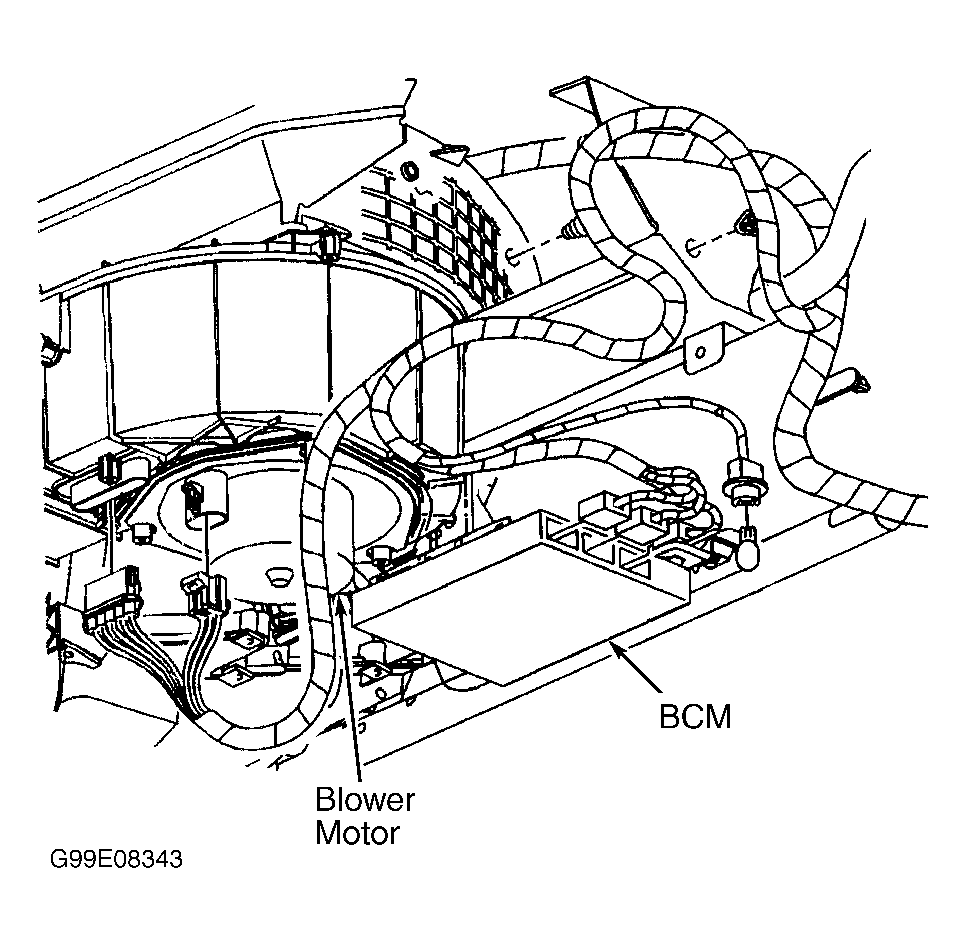

Fig 4: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.
