Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Grand Am and 2002 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

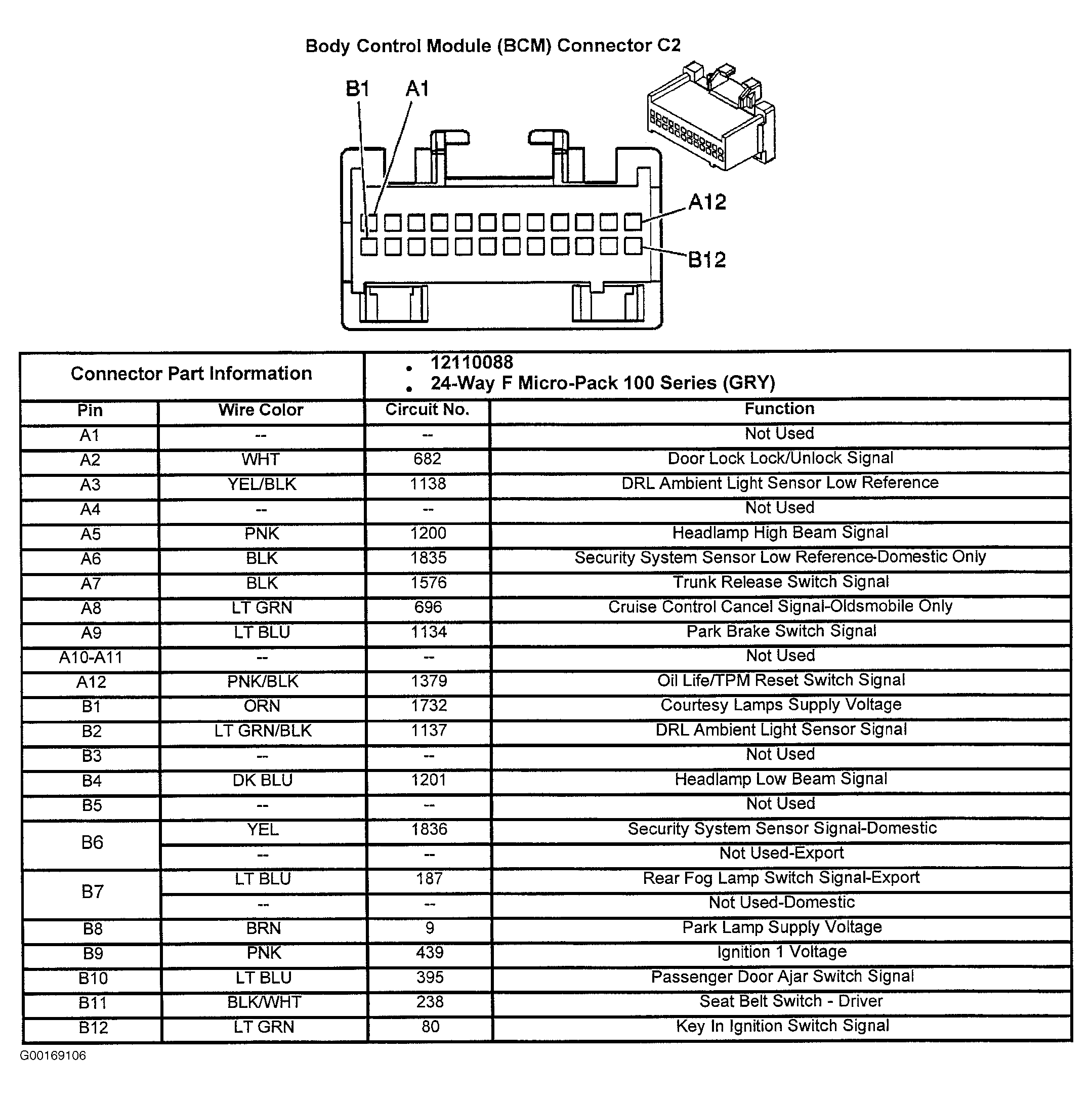

Fig 1: Identifying BCM Harness Connector C2 Terminals

G00169106

Courtesy of GENERAL MOTORS CORP.

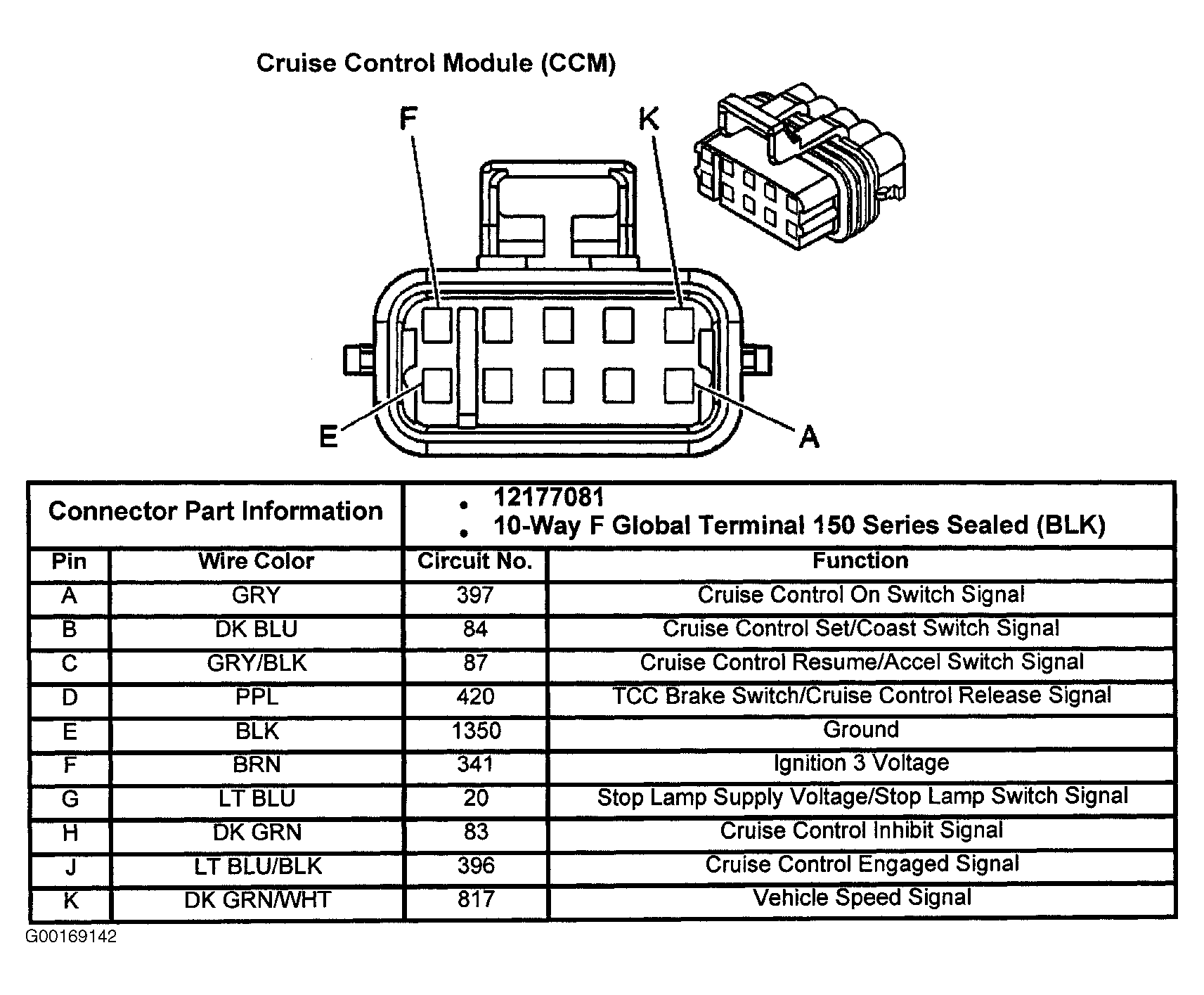

Fig 2: Identifying Cruise Control Module Harness Connector Terminals

G00169142

Courtesy of GENERAL MOTORS CORP.

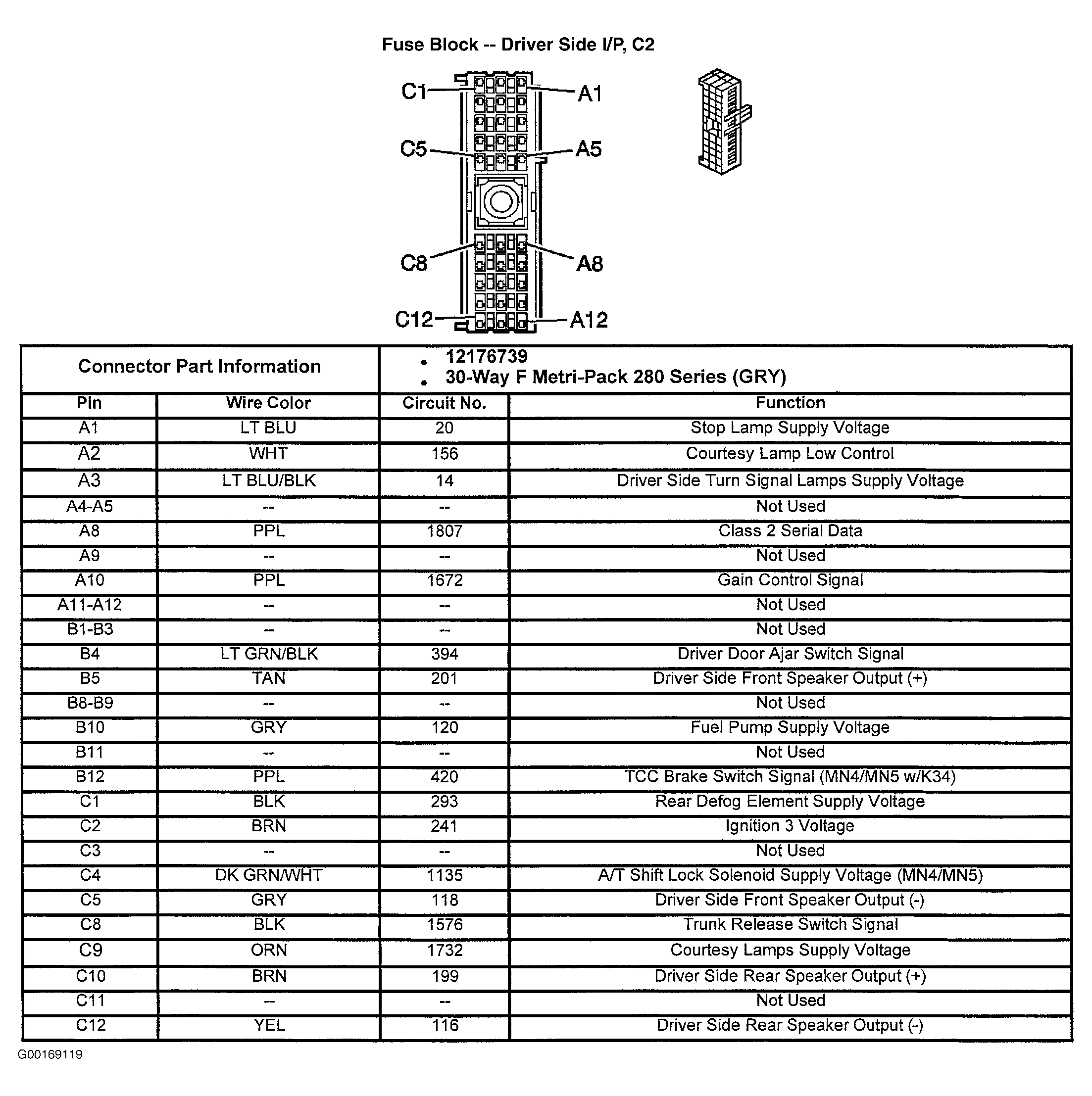

Fig 3: Identifying Driver Side Junction Block Harness Connector C2 Terminals

G00169119

Courtesy of GENERAL MOTORS CORP.

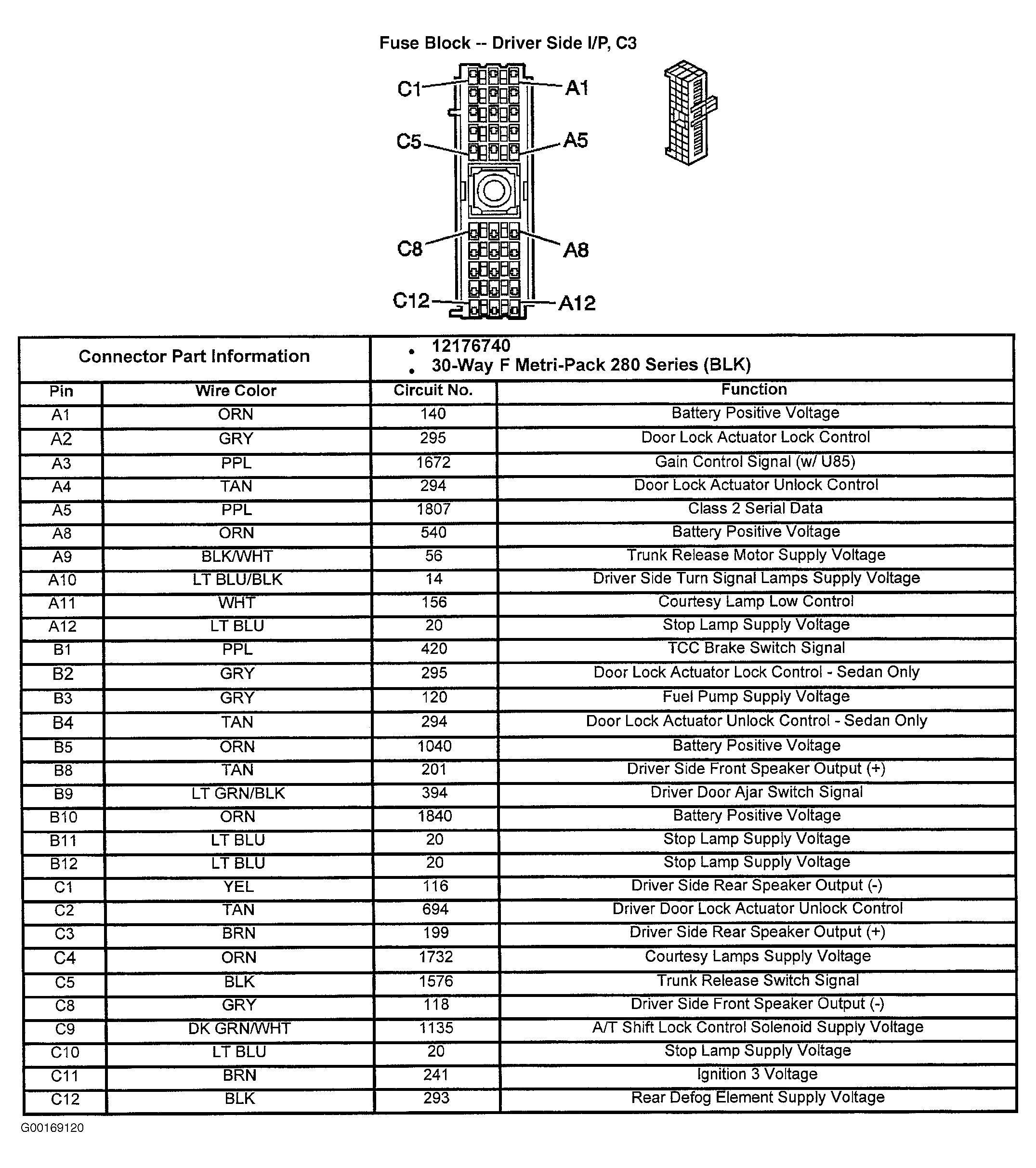

Fig 4: Identifying Driver Side Junction Block Harness Connector C3 Terminals

G00169120

Courtesy of GENERAL MOTORS CORP.

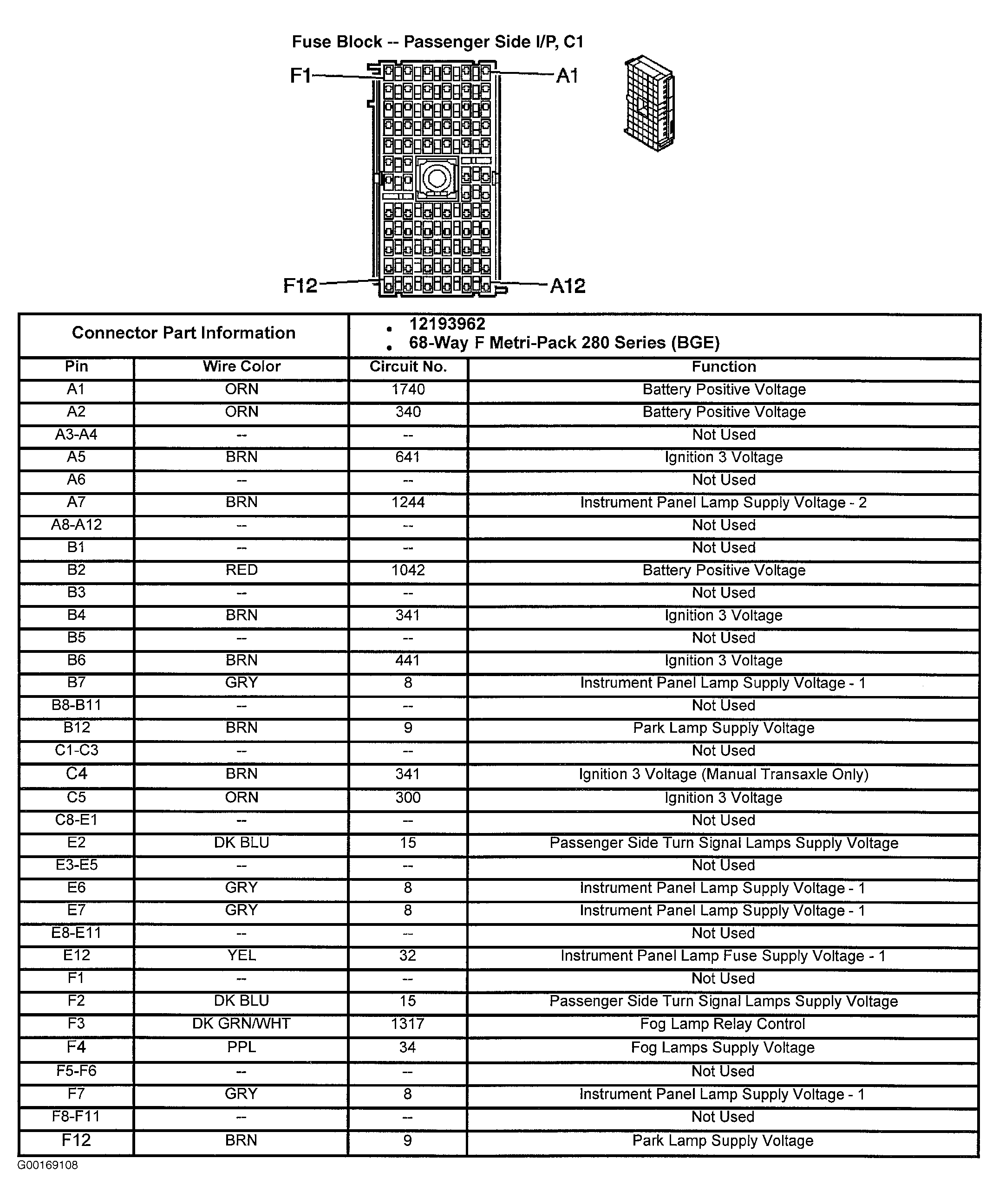

Fig 5: Identifying Passenger Side Junction Block Harness Connector C1 Terminals

G00169108

Courtesy of GENERAL MOTORS CORP.

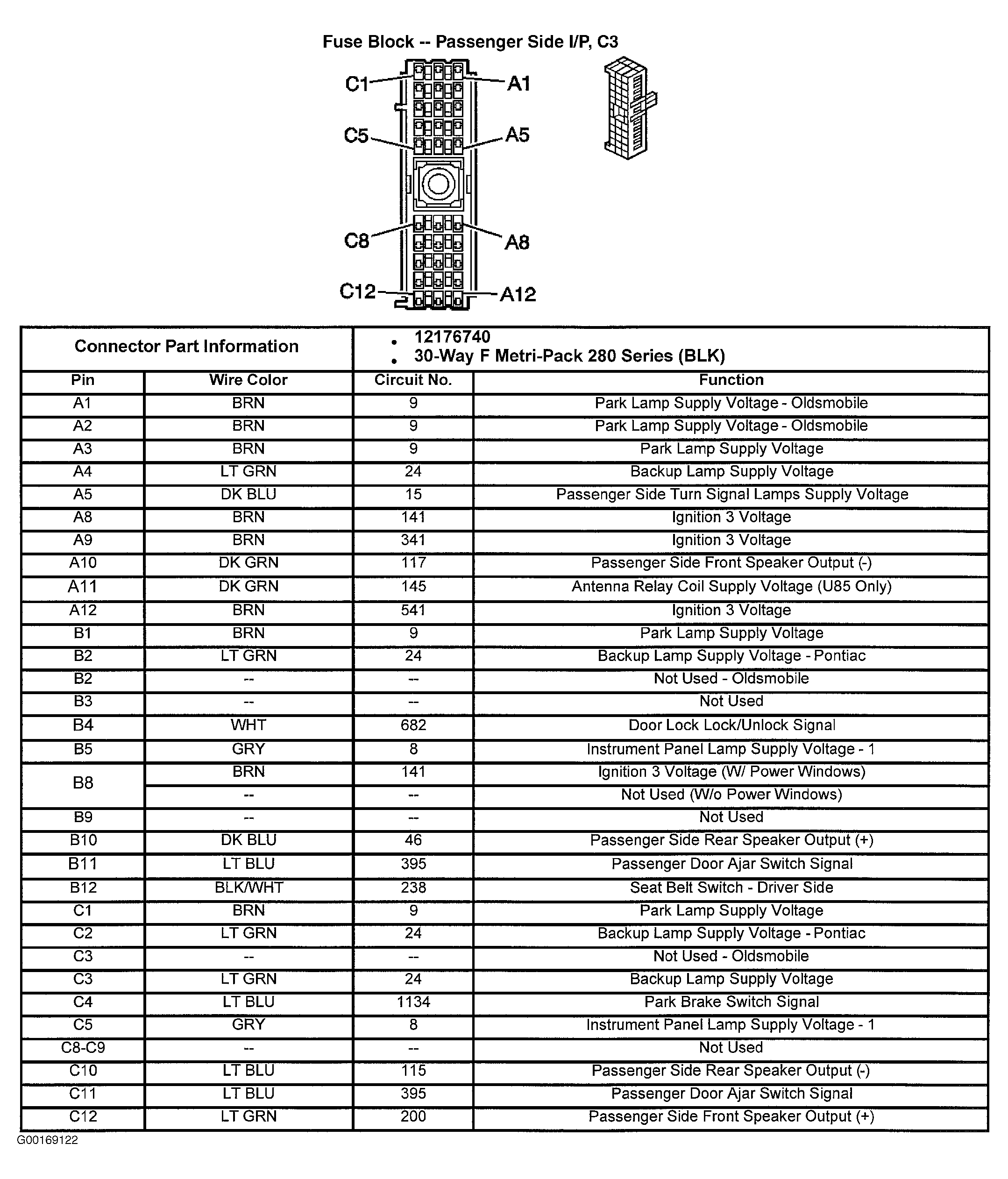

Fig 6: Identifying Passenger Side Junction Block Harness Connector C3 Terminals

G00169122

Courtesy of GENERAL MOTORS CORP.

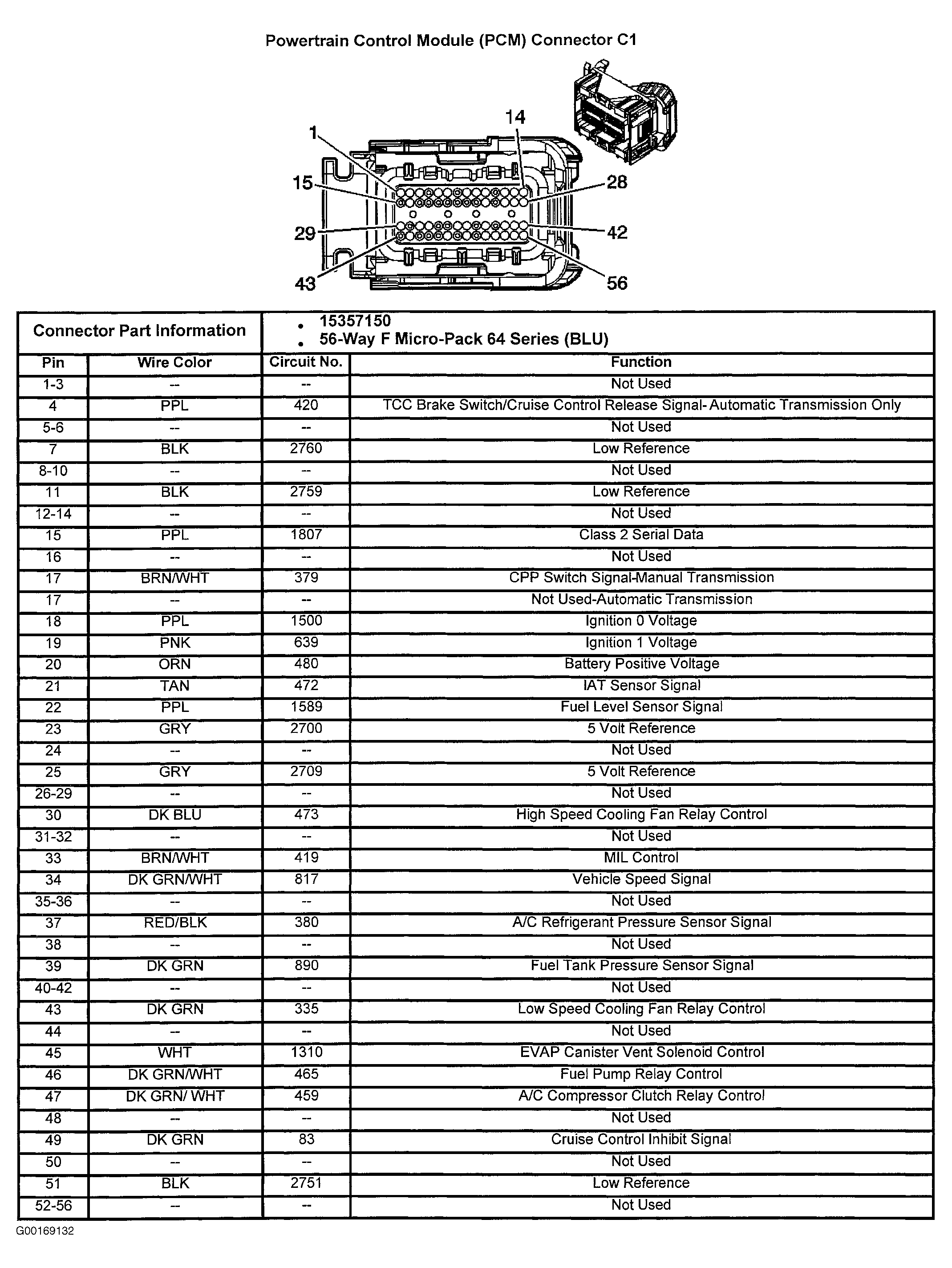

Fig 7: Identifying PCM Harness Connector C1 Terminals (2.2L)

G00169132

Courtesy of GENERAL MOTORS CORP.

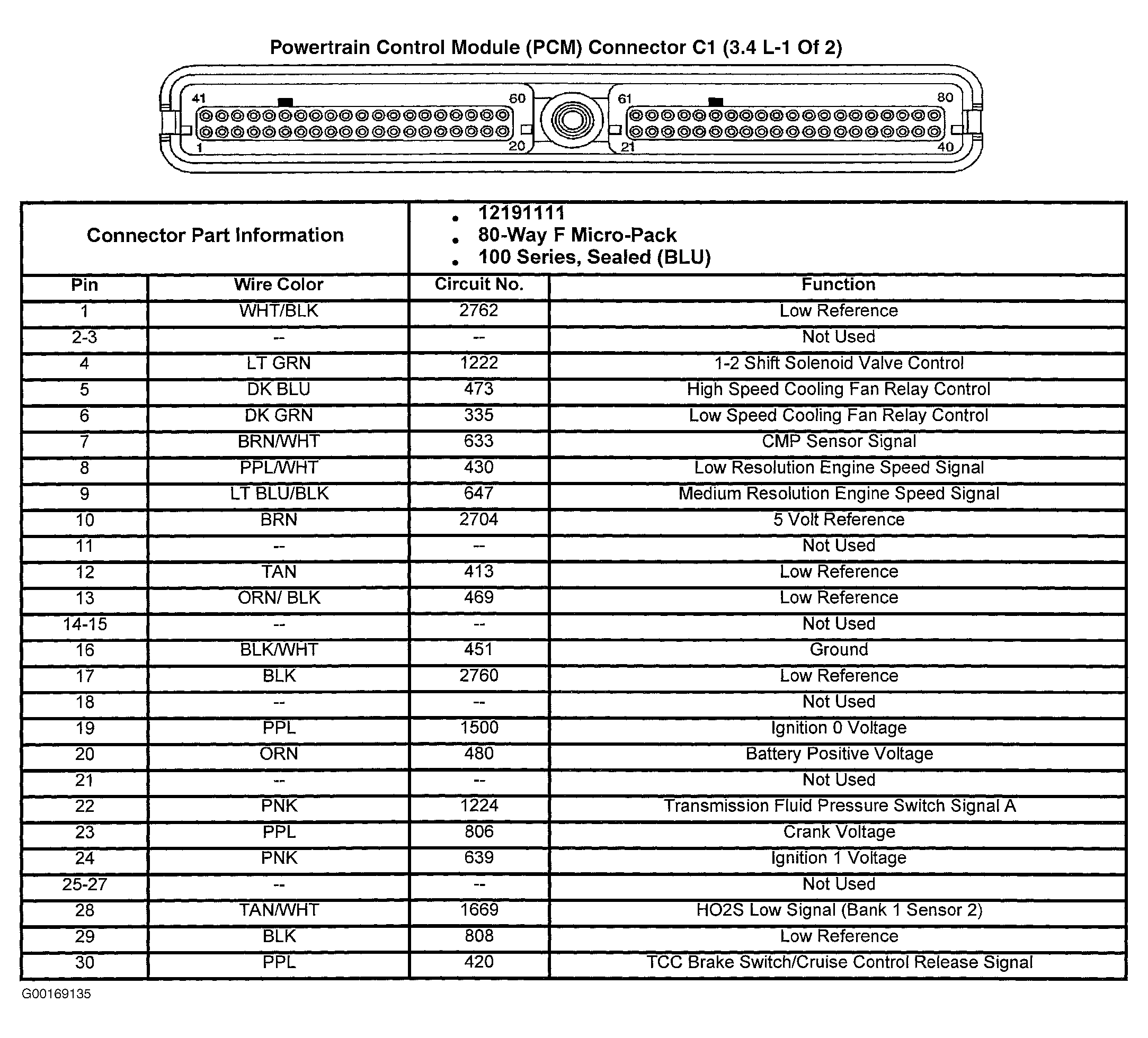

Fig 8: Identifying PCM Harness Connector C1 Terminals (3.4 L - 1 Of 2)

G00169135

Courtesy of GENERAL MOTORS CORP.

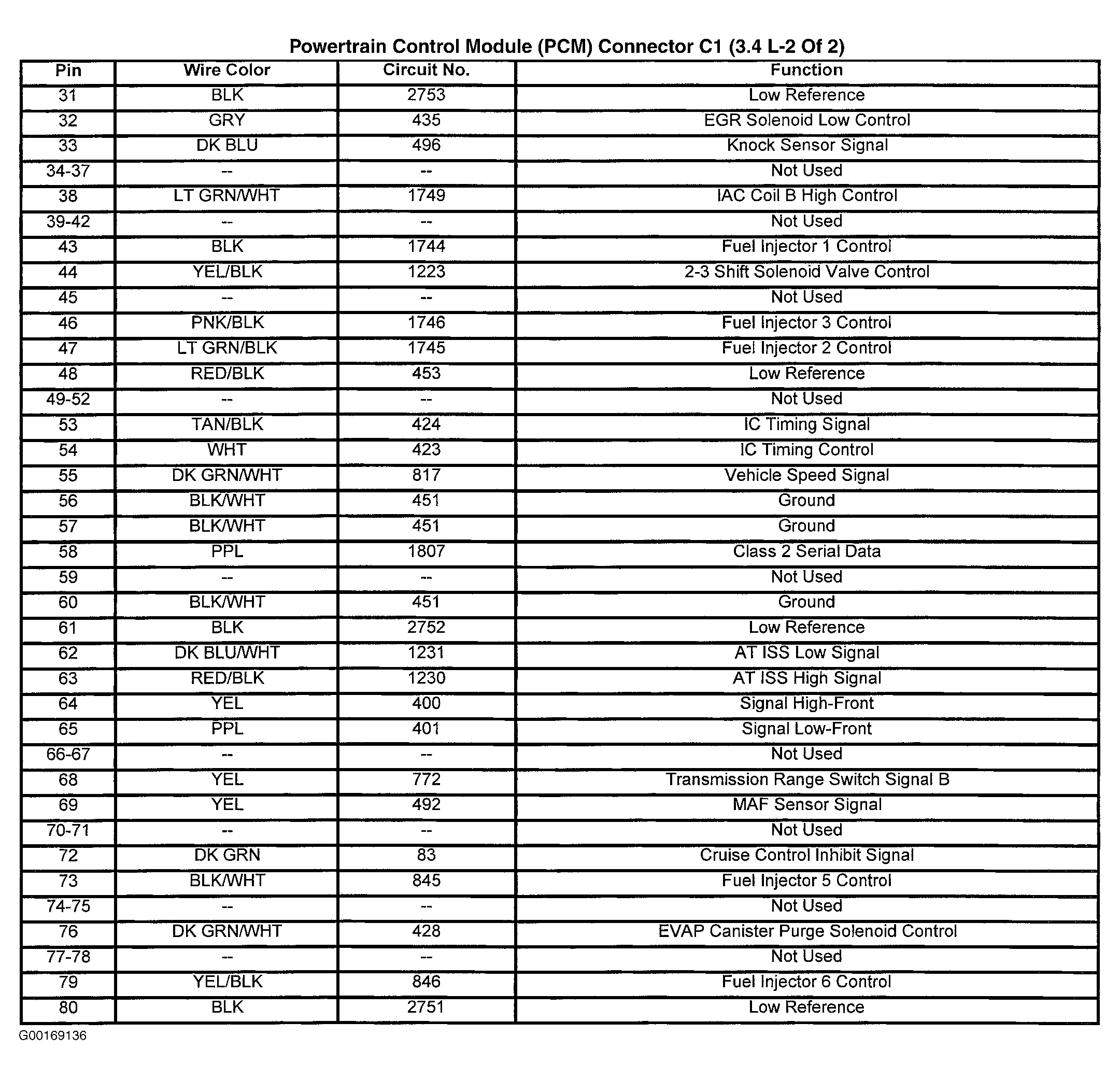

Fig 9: Identifying PCM Harness Connector C1 Terminals (3.4 L - 2 Of 2)

G00169136

Courtesy of GENERAL MOTORS CORP.

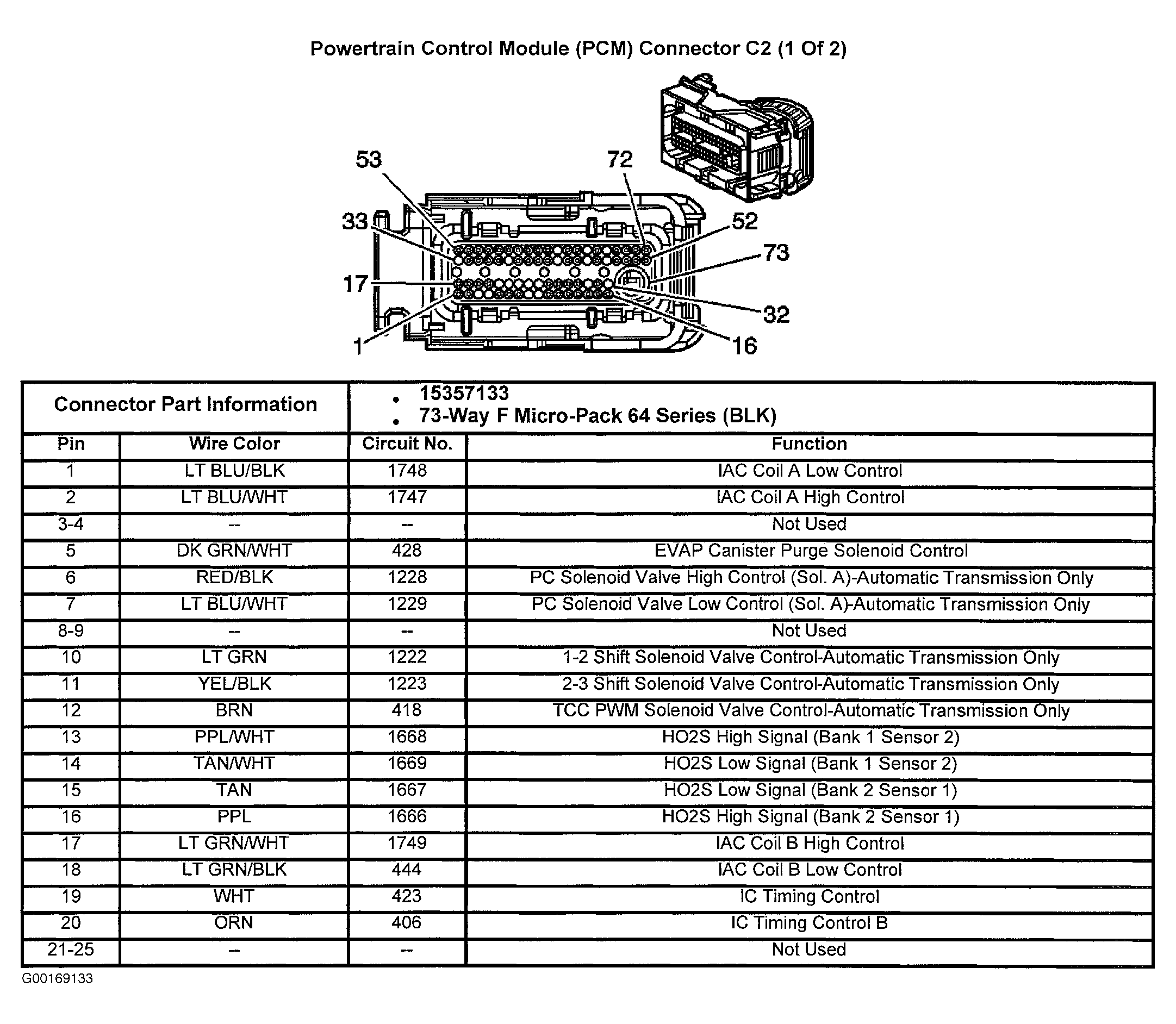

Fig 10: Identifying PCM Harness Connector C2 Terminals (2.2 L - 1 Of 2)

G00169133

Courtesy of GENERAL MOTORS CORP.

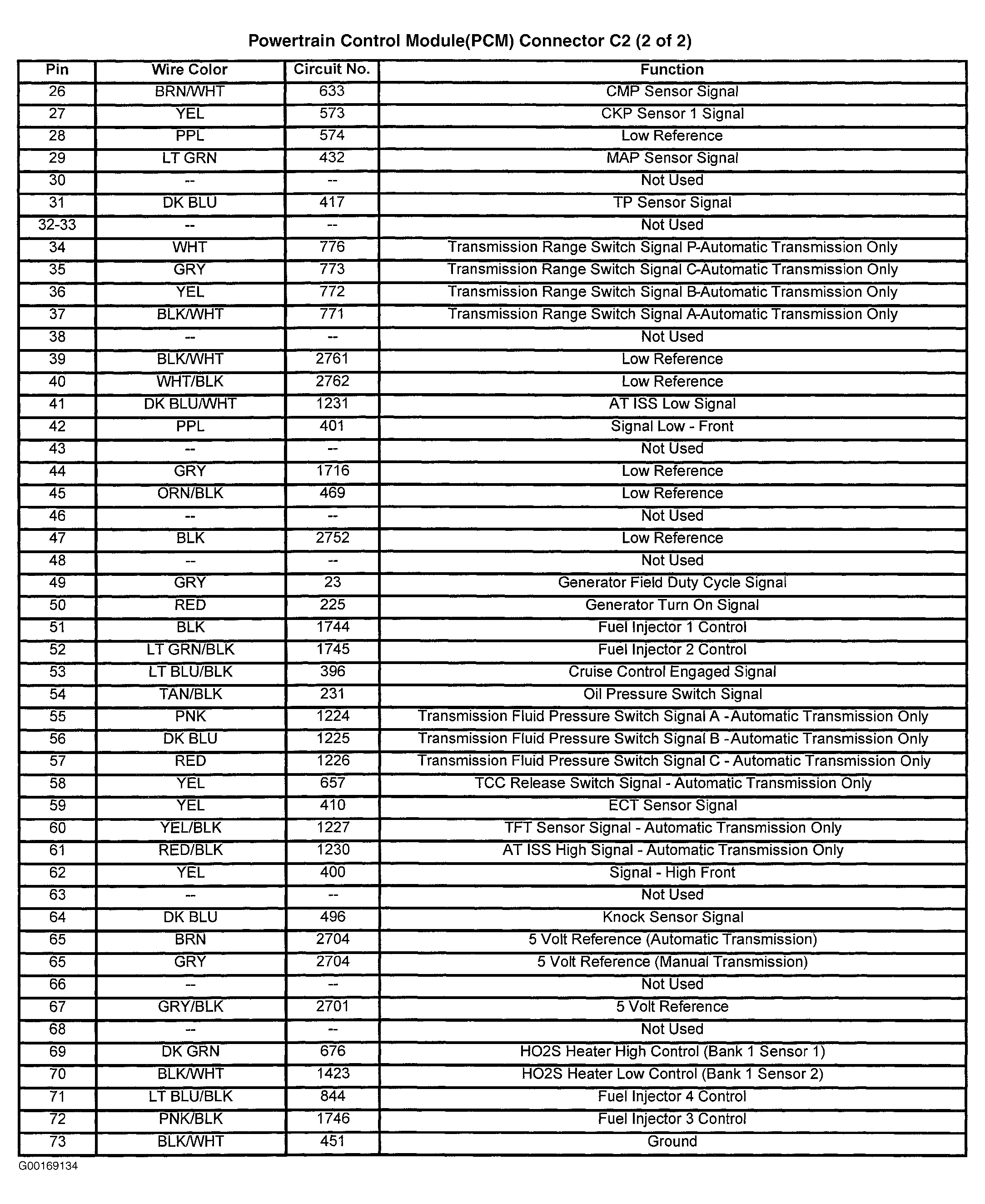

Fig 11: Identifying PCM Harness Connector C2 Terminals (2.2 L - 2 Of 2)

G00169134

Courtesy of GENERAL MOTORS CORP.

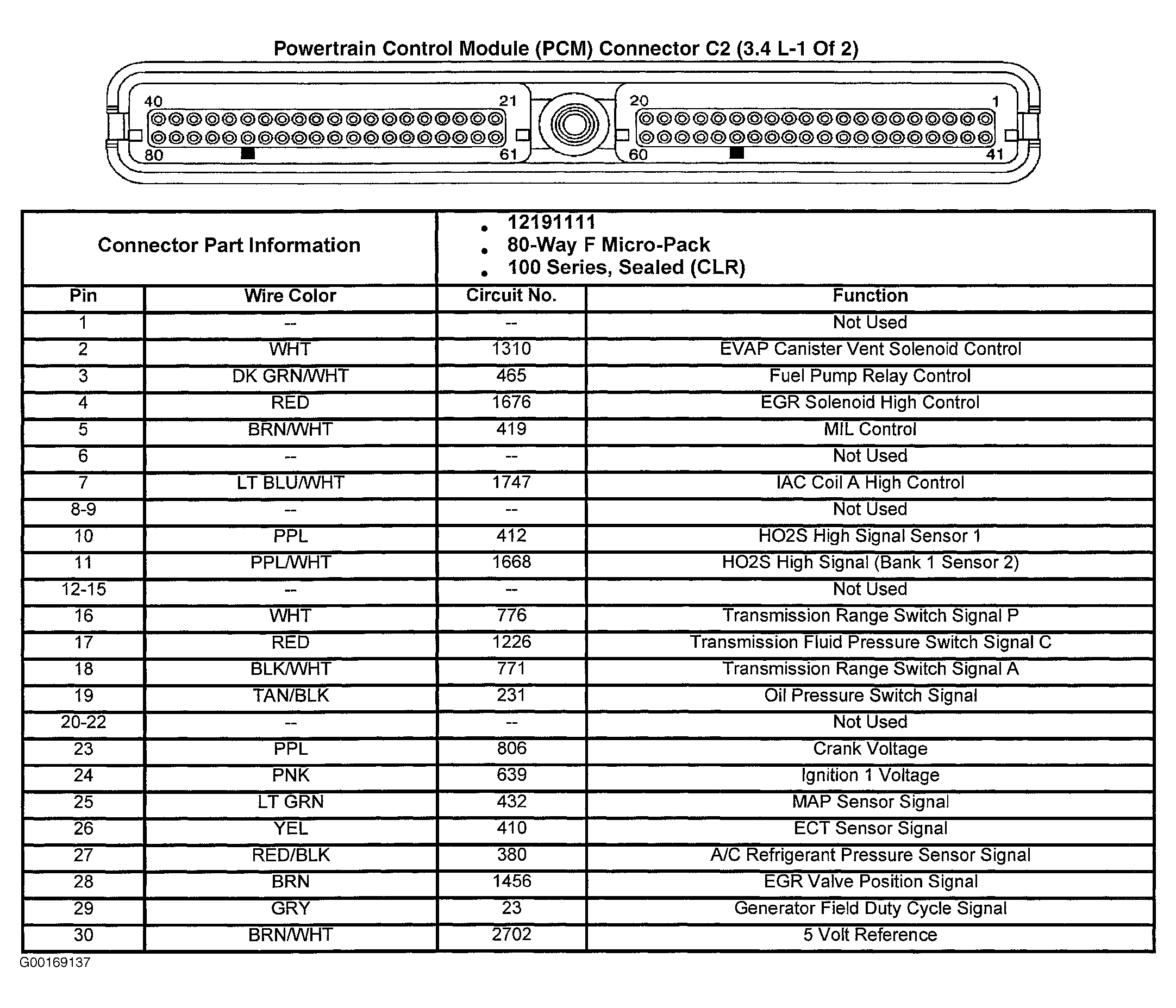

Fig 12: Identifying PCM Harness Connector C2 Terminals (3.4 L - 1 Of 2)

G00169137

Courtesy of GENERAL MOTORS CORP.

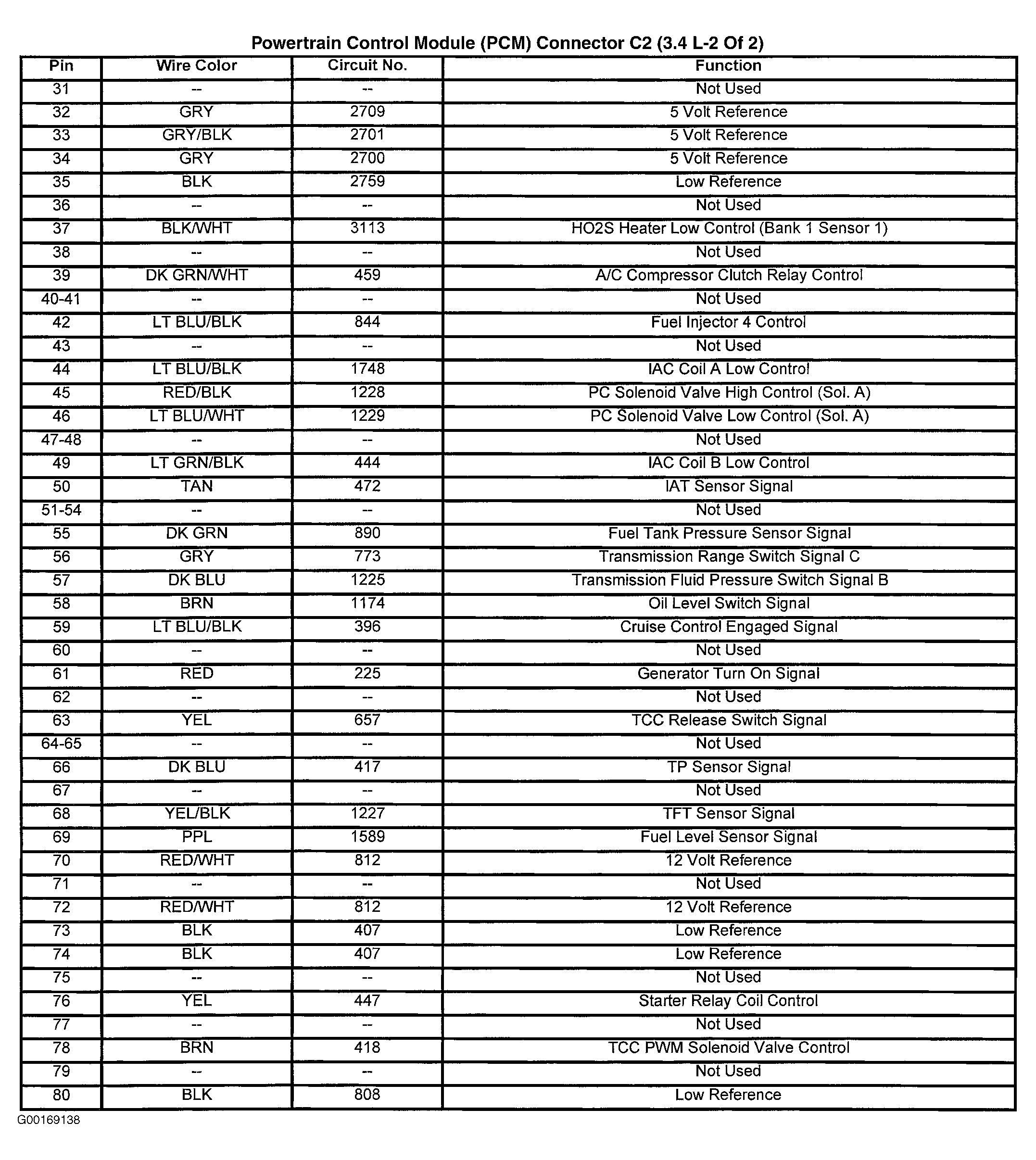

Fig 13: Identifying PCM Harness Connector C2 Terminals (3.4 L - 2 Of 2)

G00169138

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Torque Convertor Clutch/Brake Switch Harness Connector Terminals

G00056237

Courtesy of GENERAL MOTORS CORP.

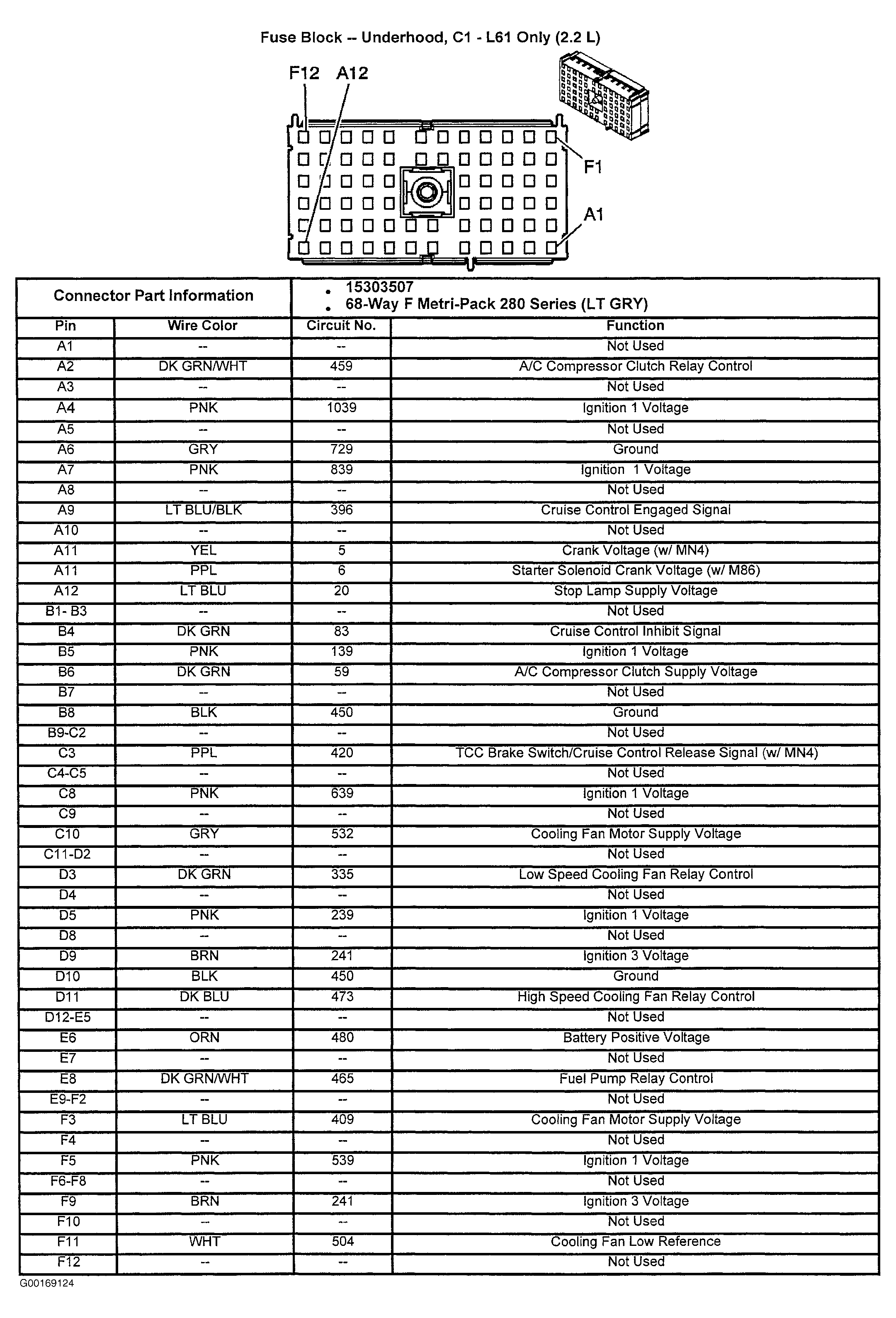

Fig 15: Identifying Underhood Junction Block Harness Connector C1 Terminals (2.2L)

G00169124

Courtesy of GENERAL MOTORS CORP.

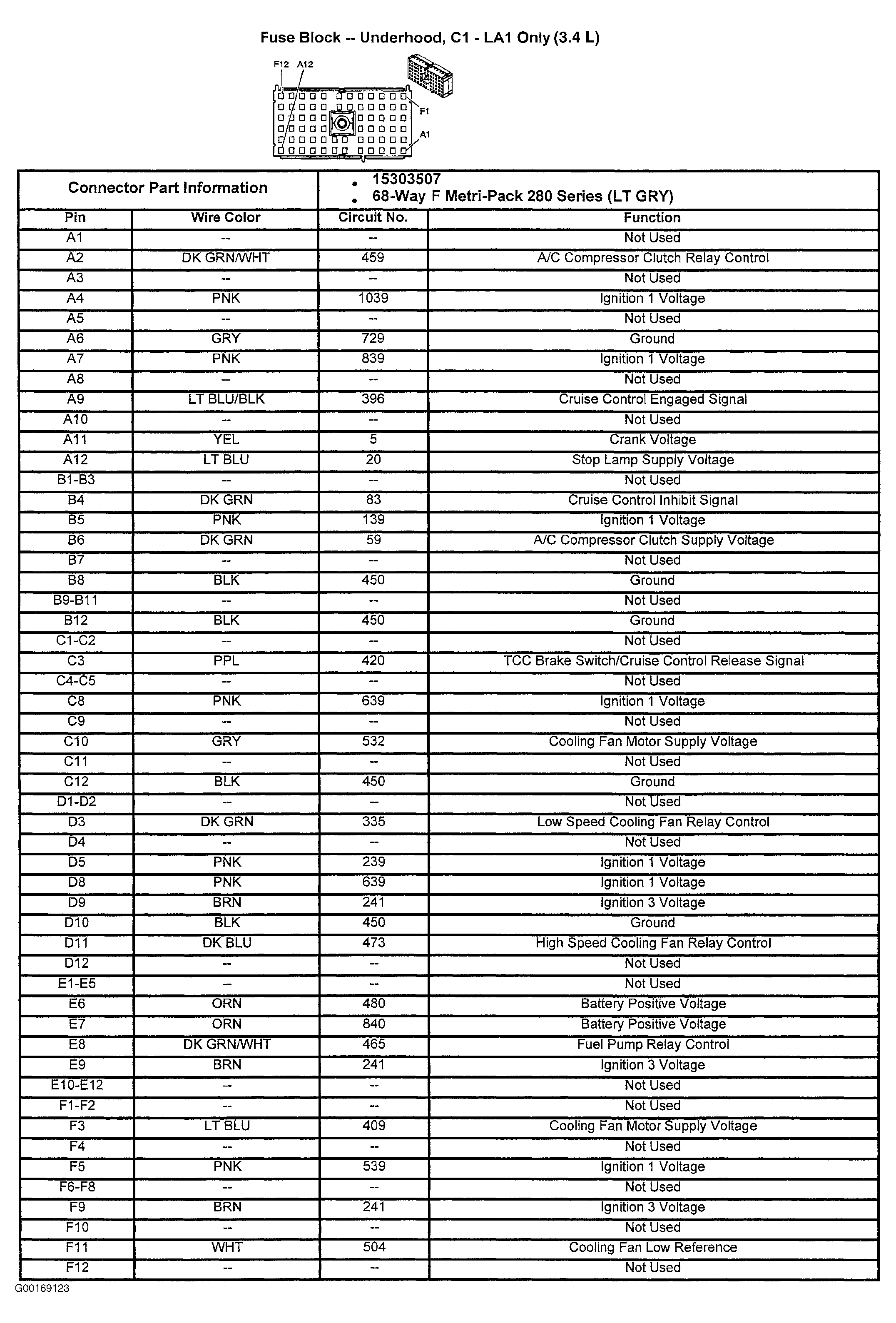

Fig 16: Identifying Underhood Junction Block Harness Connector C1 Terminals (3.4L)

G00169123

Courtesy of GENERAL MOTORS CORP.

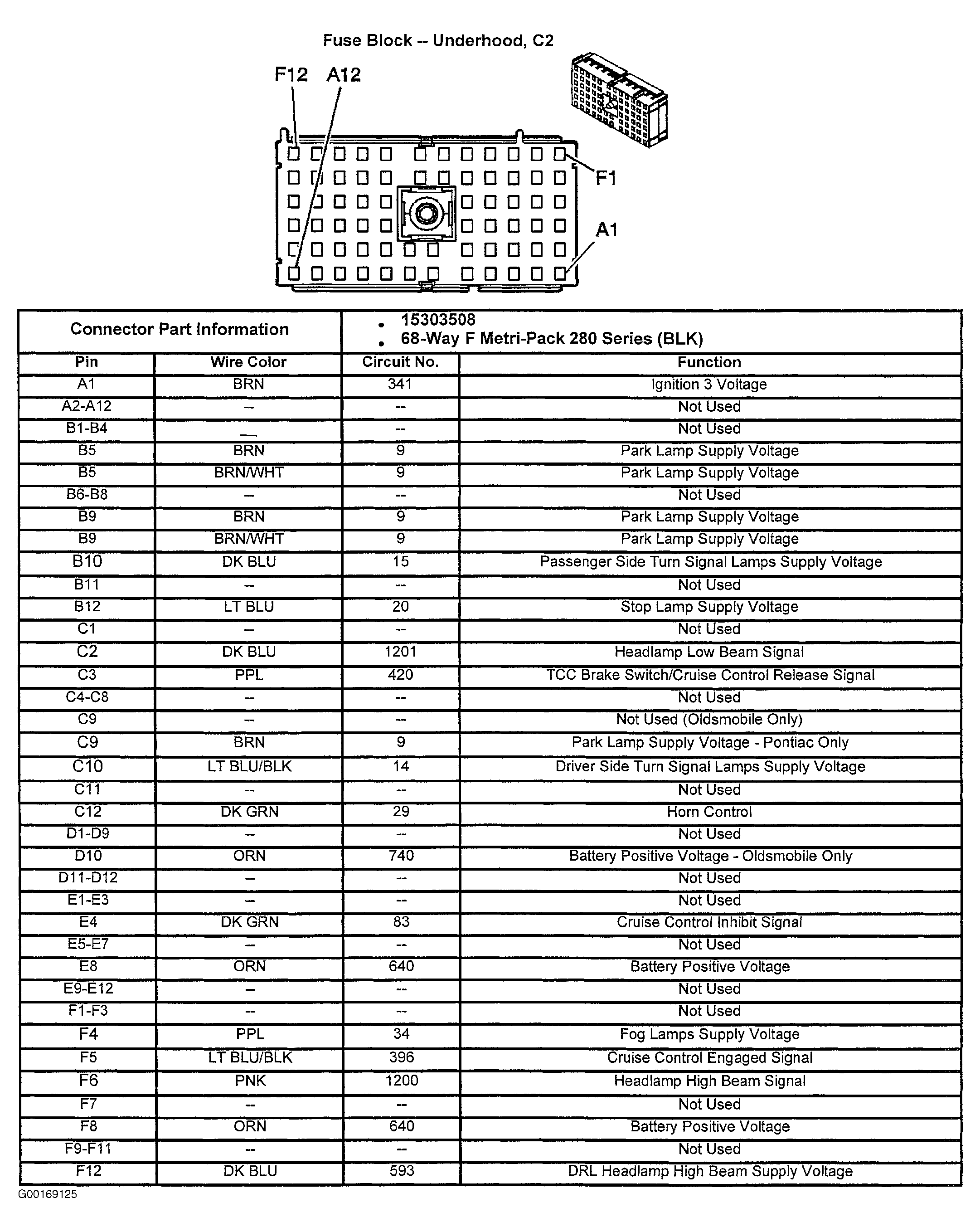

Fig 17: Identifying Underhood Junction Block Harness Connector C2 Terminals

G00169125

Courtesy of GENERAL MOTORS CORP.

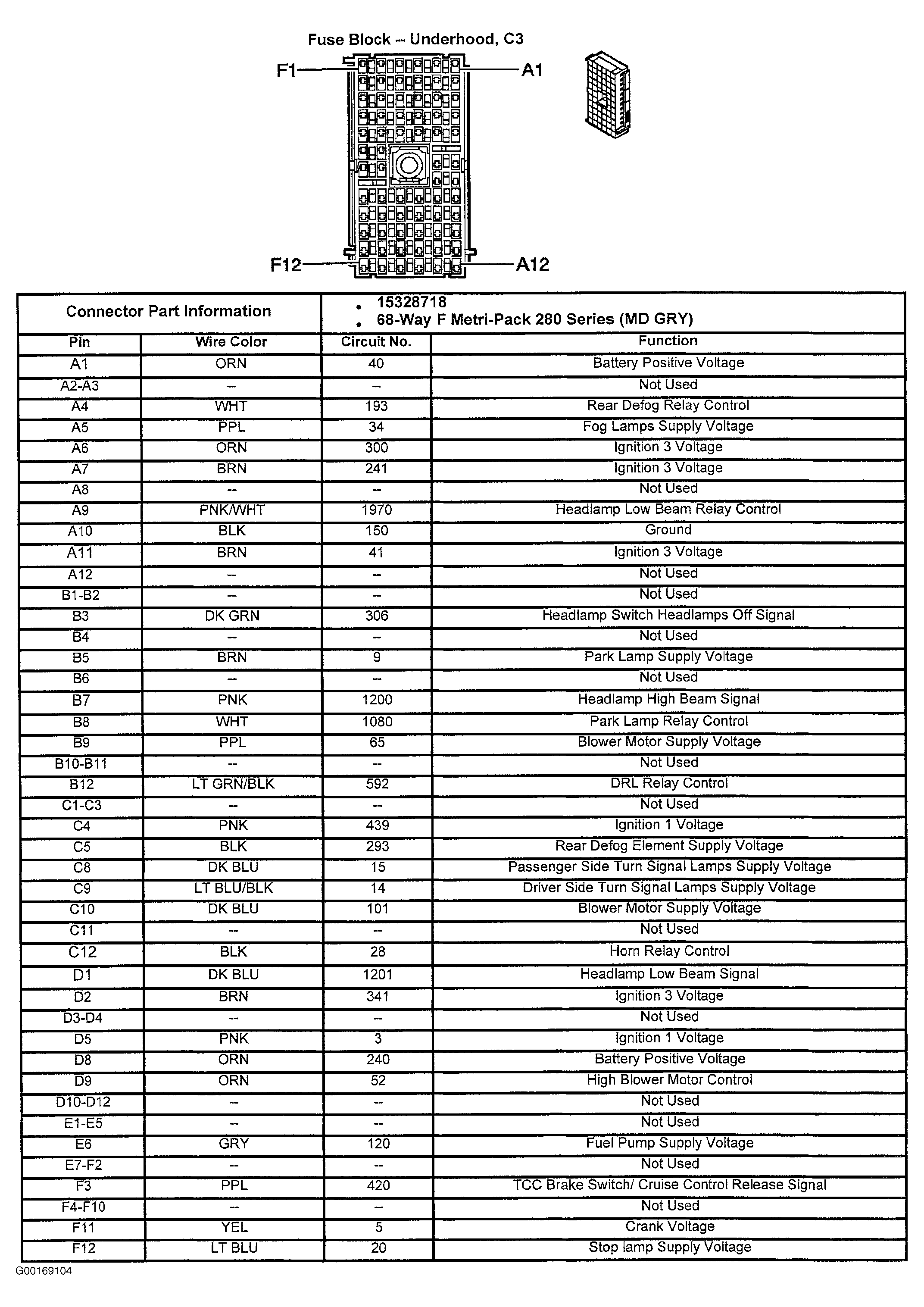

Fig 18: Identifying Underhood Junction Block Harness Connector C3 Terminals

G00169104

Courtesy of GENERAL MOTORS CORP.
