Camber And Caster

Measure camber and caster of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.

Fig 1: Placement Of Alignment Gauge

Courtesy of NISSAN MOTOR CO., U.S.A.

If outside of the specified value, adjust camber and caster using the adjusting bolts in the front lower link.
CAUTION: After adjusting the camber then check the toe-in.

NOTE: Camber changes about 3' (0.11°) with each graduation of one adjusting bolt. Refer to table below for examples of lower link adjusting bolt effect on camber and caster.

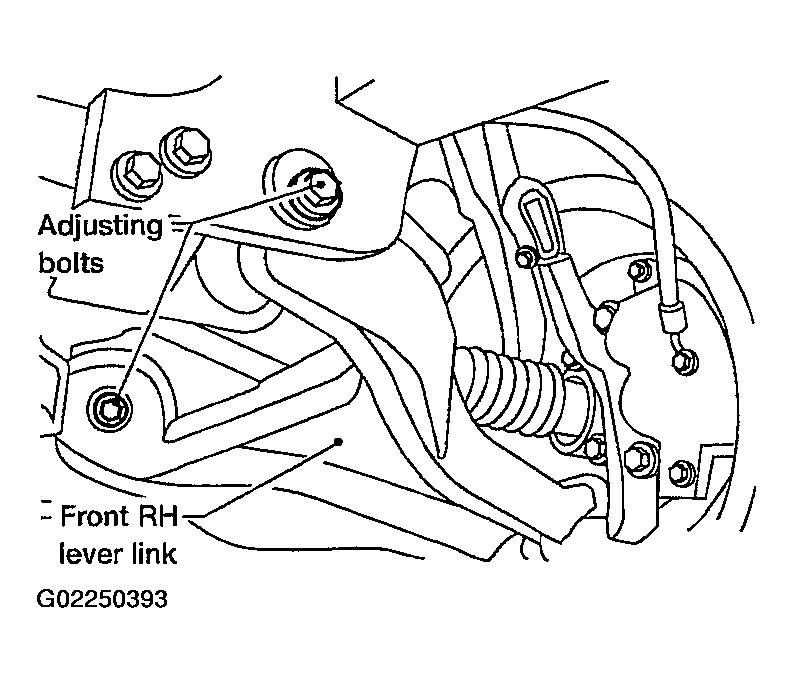

Fig 2: Locating Adjustment Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

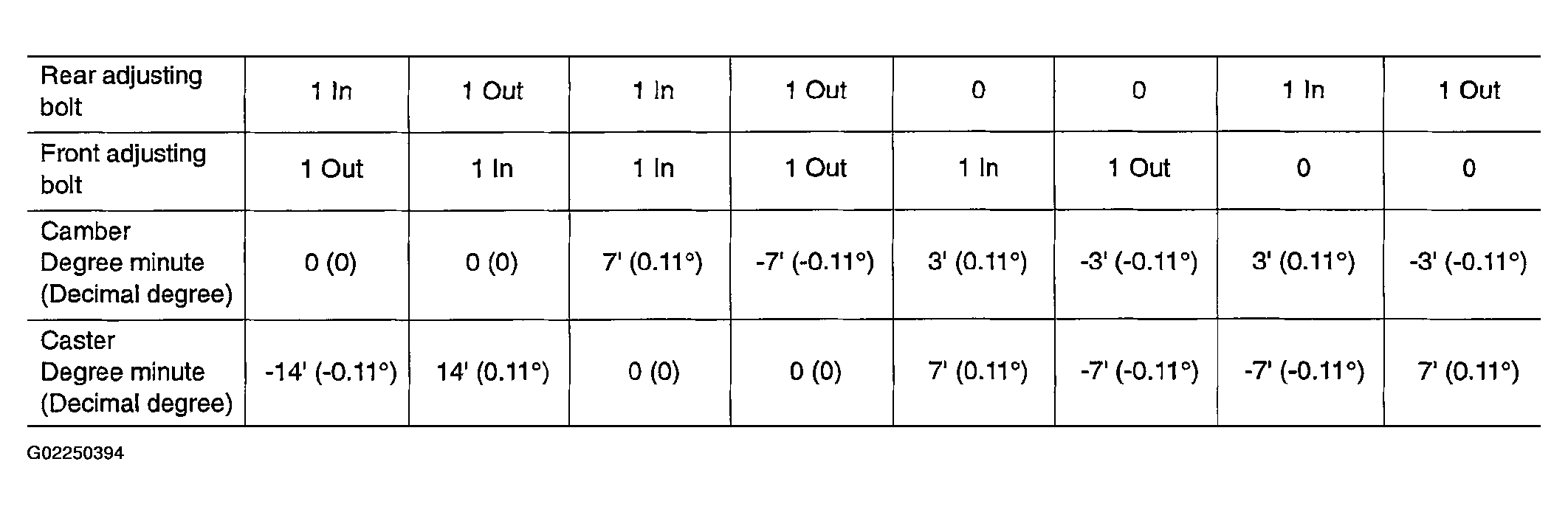

Fig 3: Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.
