Direct Clutch: Disassembly

  1. Using a flat-bladed screwdriver, remove snap rings from direct clutch drum.
  2. Remove drive plates, driven plates and retaining plate from direct clutch drum.

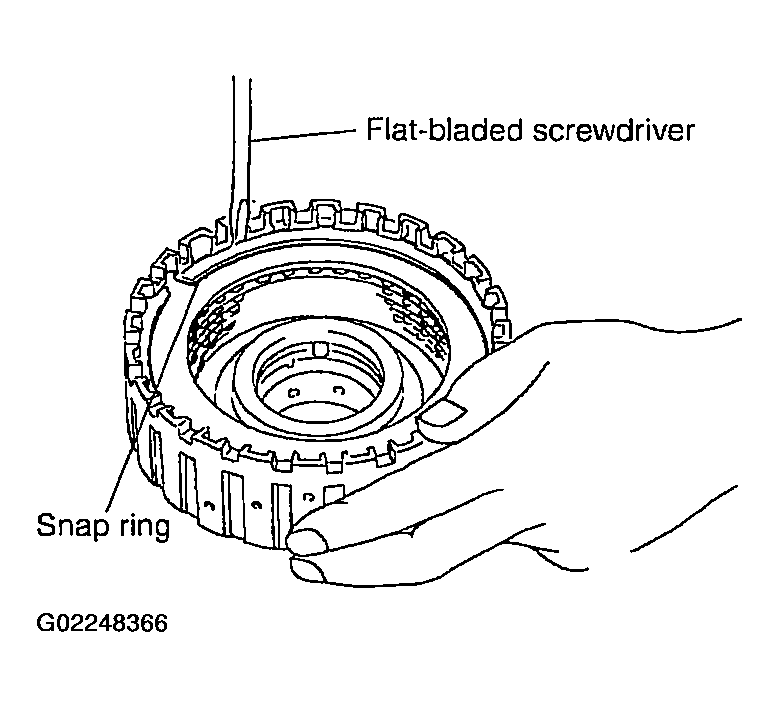

Fig 1: Removing Snap Rings From Direct Clutch Drum
G02248366Courtesy of NISSAN MOTOR CO., U.S.A.
