Oil Pump: Assembly

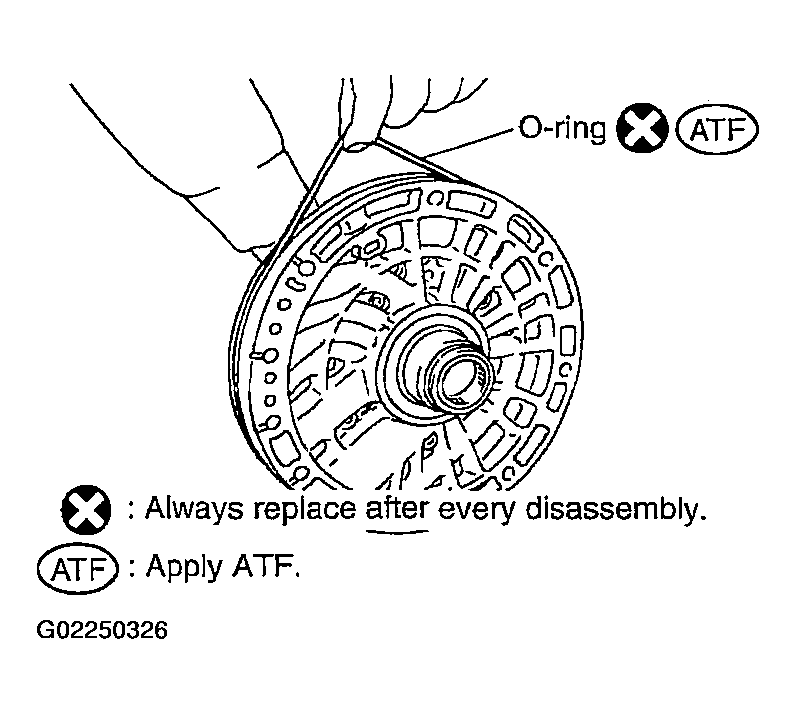

Install O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

Fig 1: Installing O-Ring To Oil Pump Cover

Courtesy of NISSAN MOTOR CO., U.S.A.

Install O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

Fig 2: Installing O-Ring To Oil Pump Housing

Courtesy of NISSAN MOTOR CO., U.S.A.

Using a drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.

Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing

Courtesy of NISSAN MOTOR CO., U.S.A.

Install oil pump housing in oil pump cover. Tighten oil pump housing fitting bolt to the specified torque. Refer to COMPONENTS .

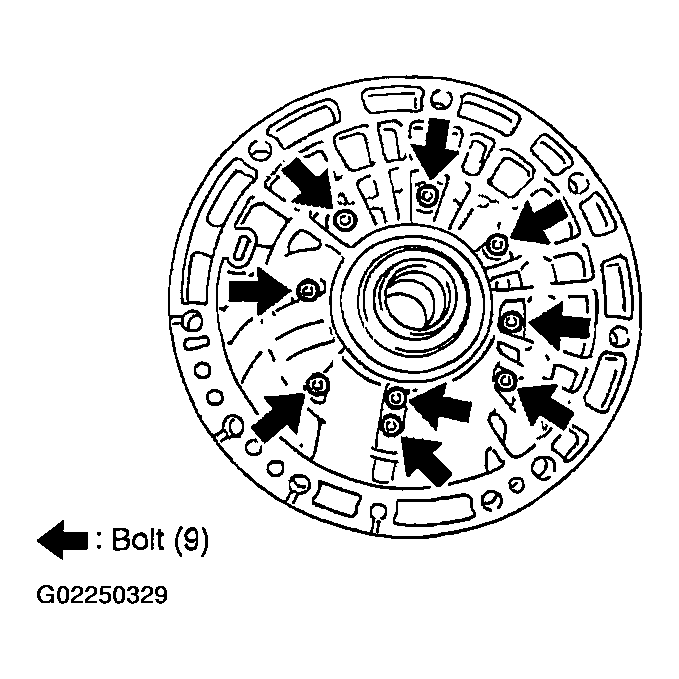

Fig 4: Locating Oil Pump Housing Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
