A/T interlock

If there is an A/T interlock judgment malfunction, the transmission is fixed in 2nd gear to make driving possible.
NOTE: When the vehicle is driven fixed in 2nd gear, a turbine revolution sensor malfunction is displayed, but this is not a turbine revolution sensor malfunction.
When the coupling pattern below is detected, the fail-safe action corresponding to the pattern is performed.

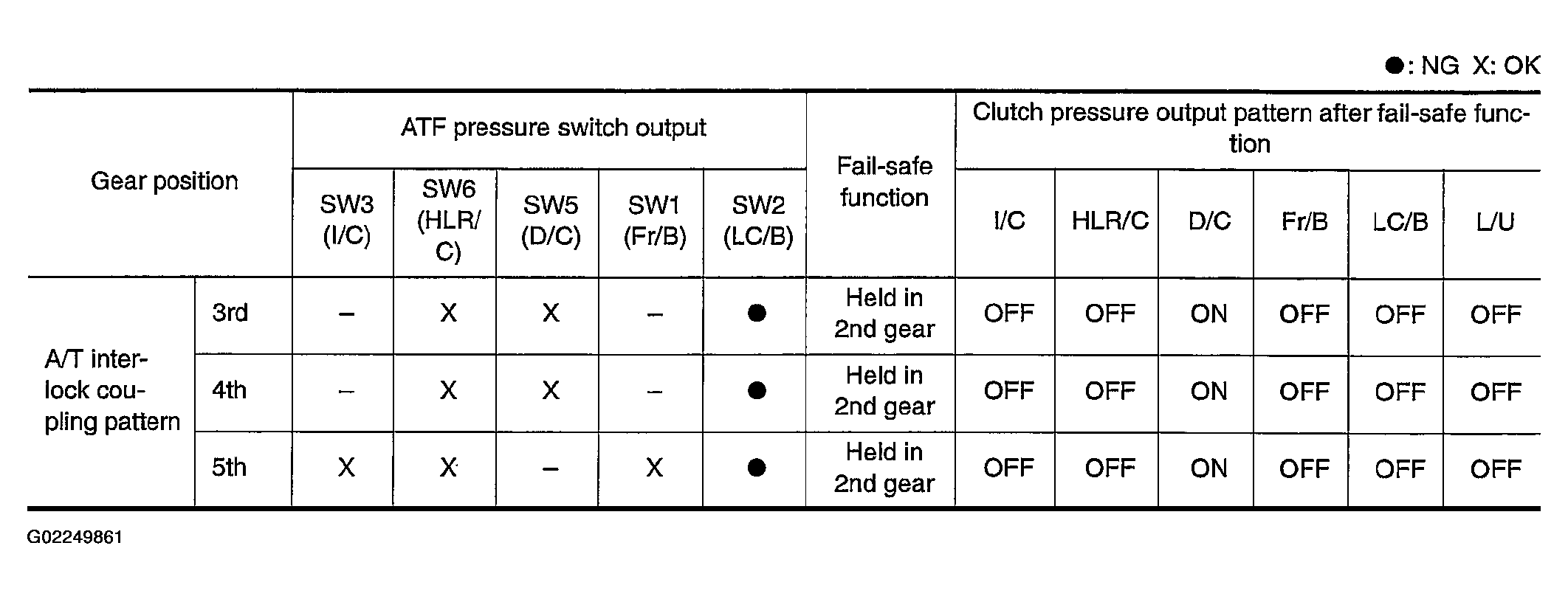

Fig 1: A/T Interlock Coupling Pattern Table
Courtesy of NISSAN MOTOR CO., U.S.A.
