Circuit Diagram for Quick Pinpoint Check

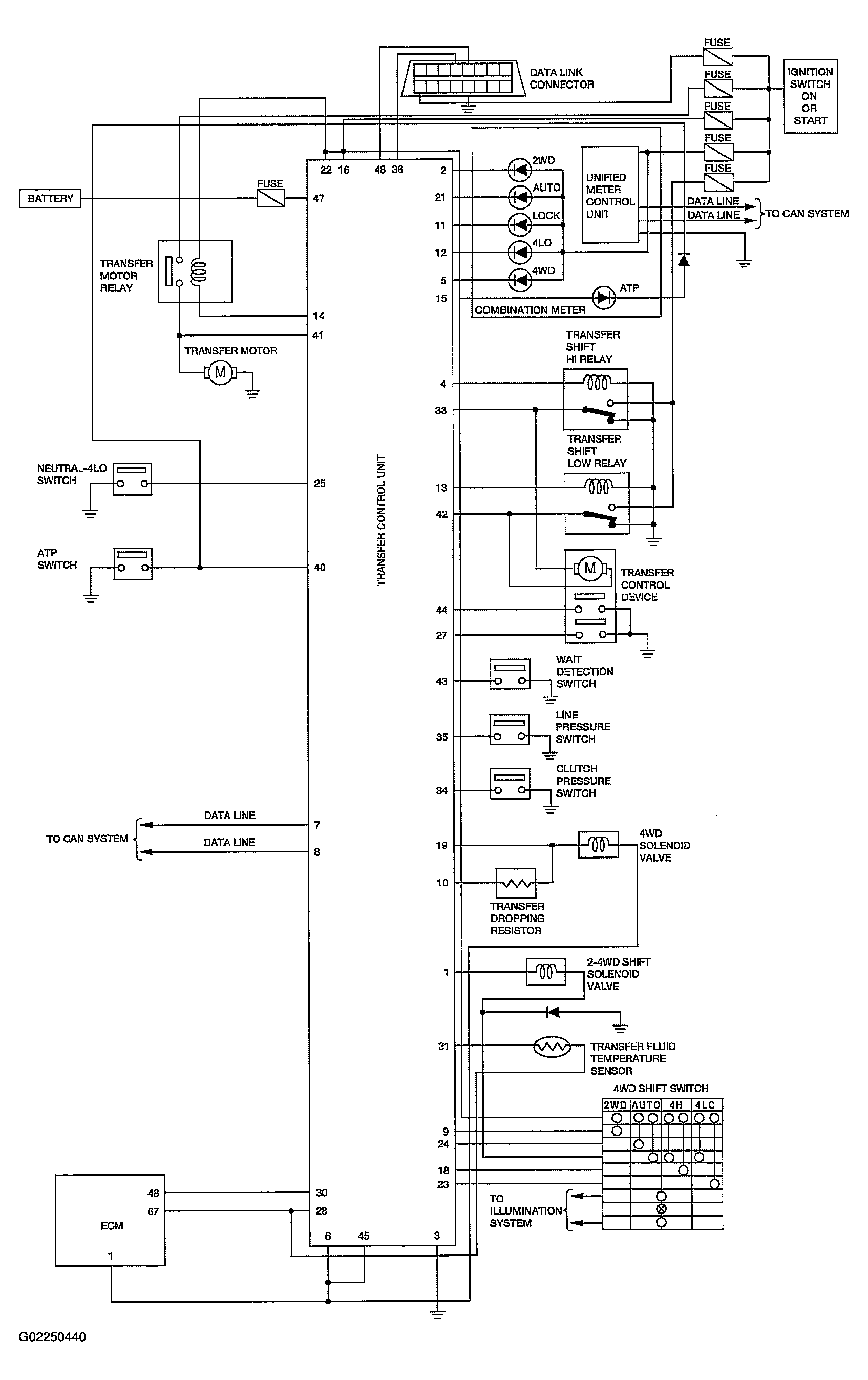

Fig 1: Quick Pinpoint Check Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
