Service Data And Specifications (SDS)
›
Control Valve
›
Spring
Control Valve: Spring

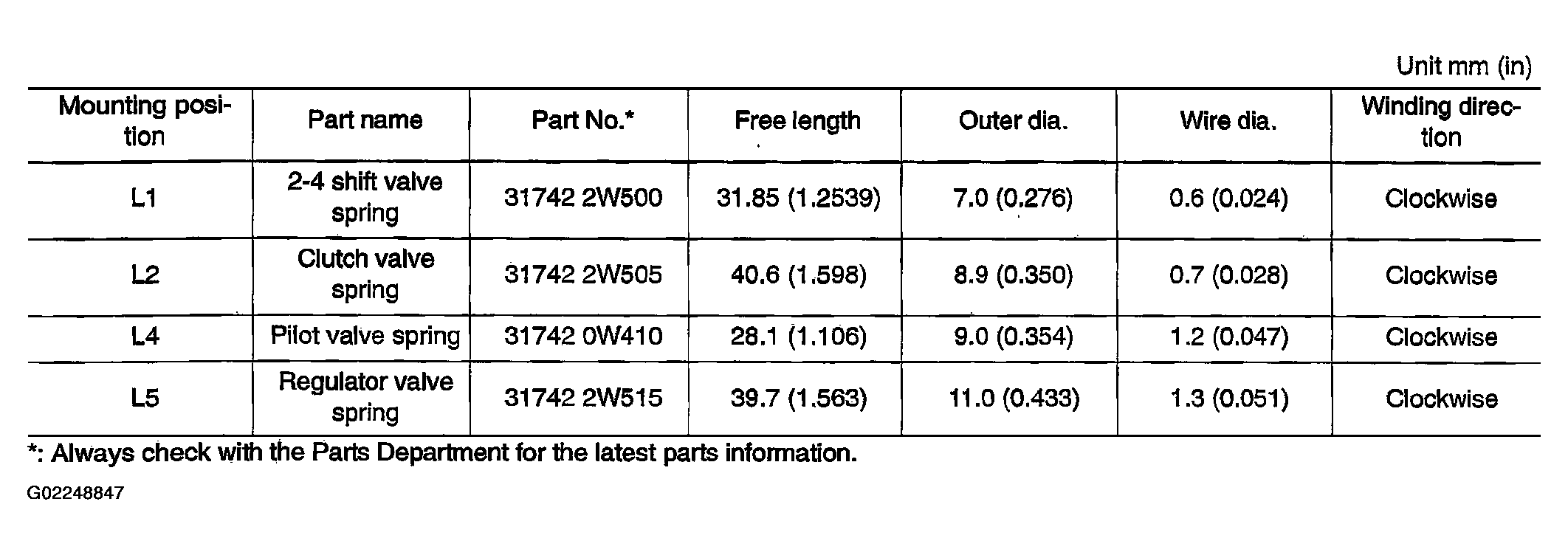

Fig 1: Control Valve - Spring - specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
