Transfer Oil Filter: Removal

Remove bolts and remove oil filter.

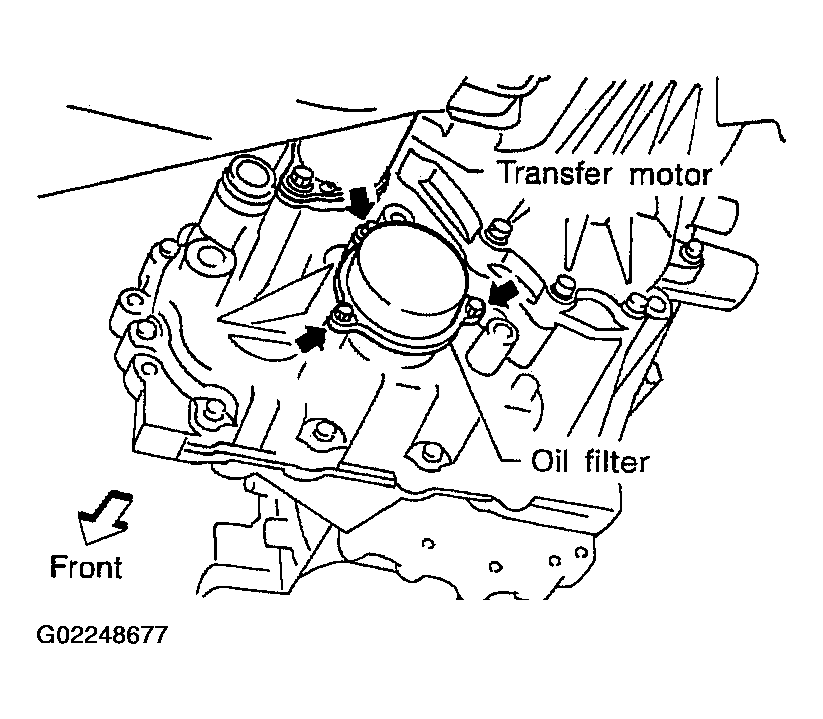

Fig 1: Removing Oil Filter
G02248677Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: When removing oil filter from transfer, avoid damaging it.
NOTE:
  • When removing oil filter, be sure to replace O-ring with a new one.
  • Be sure to loosen the bolts evenly.
