Transfer Control Unit Inspection Table

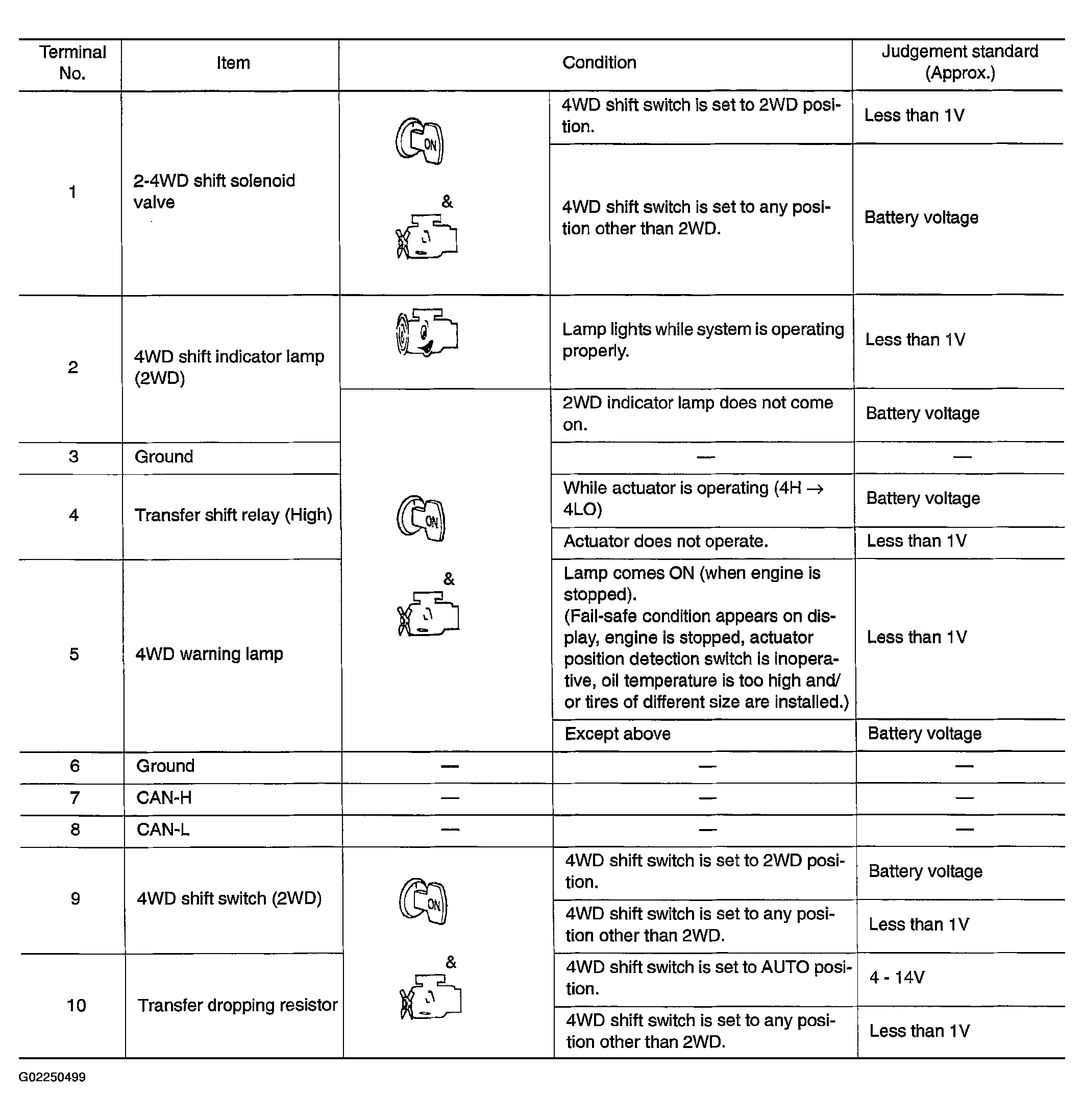

Fig 1: Transfer Control Unit Inspection Table (1 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

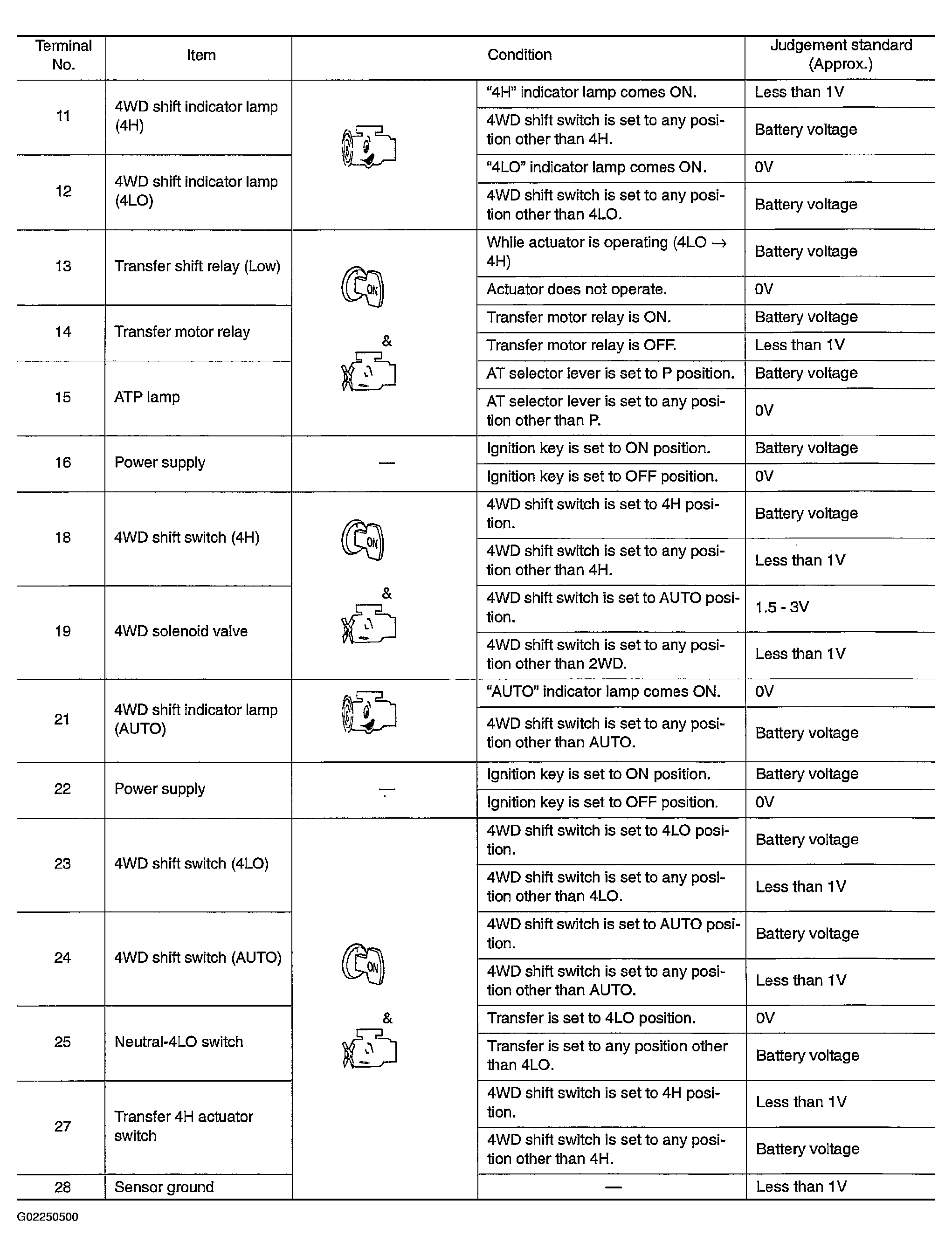

Fig 2: Transfer Control Unit Inspection Table (2 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

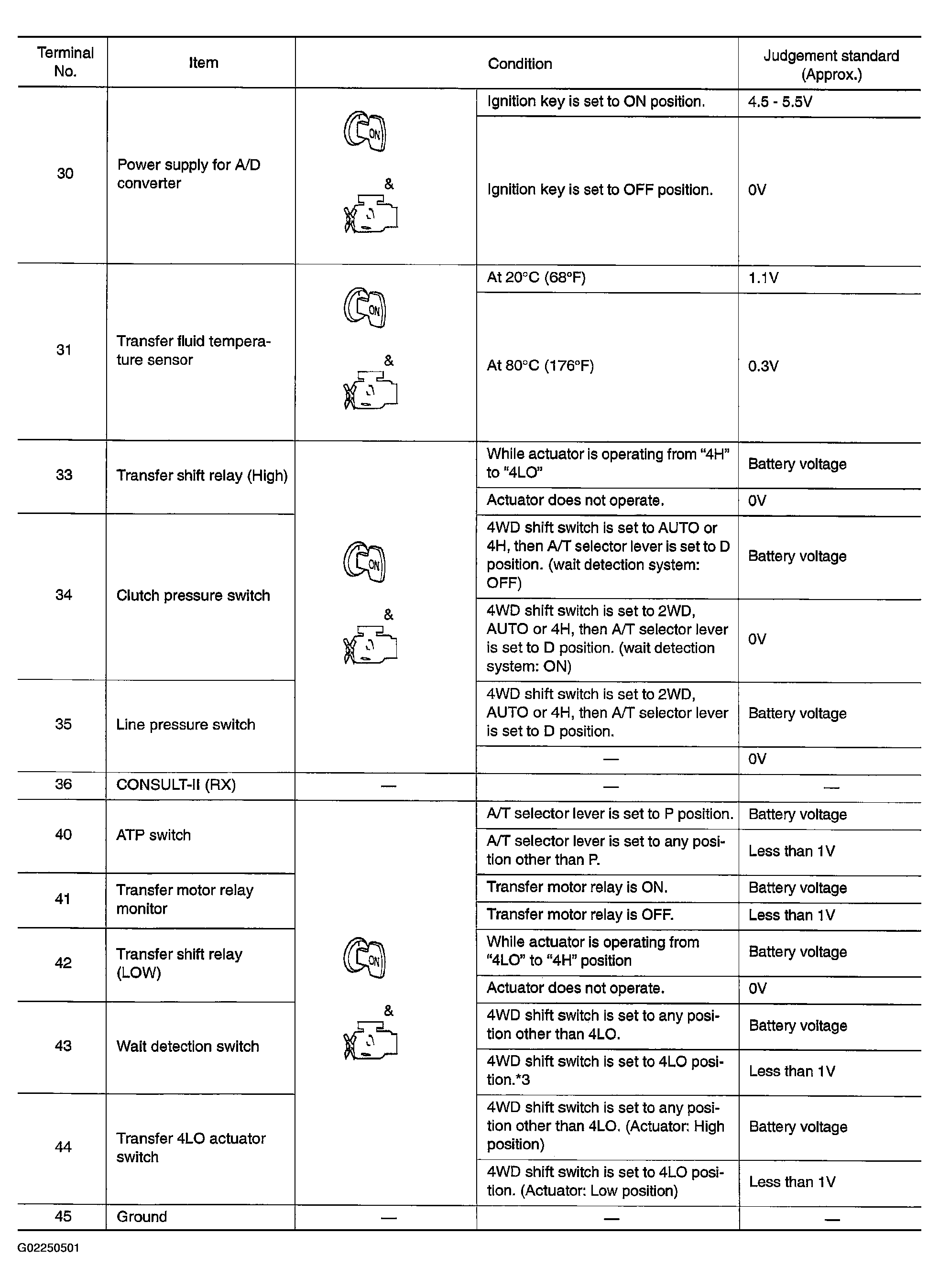

Fig 3: Transfer Control Unit Inspection Table (3 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

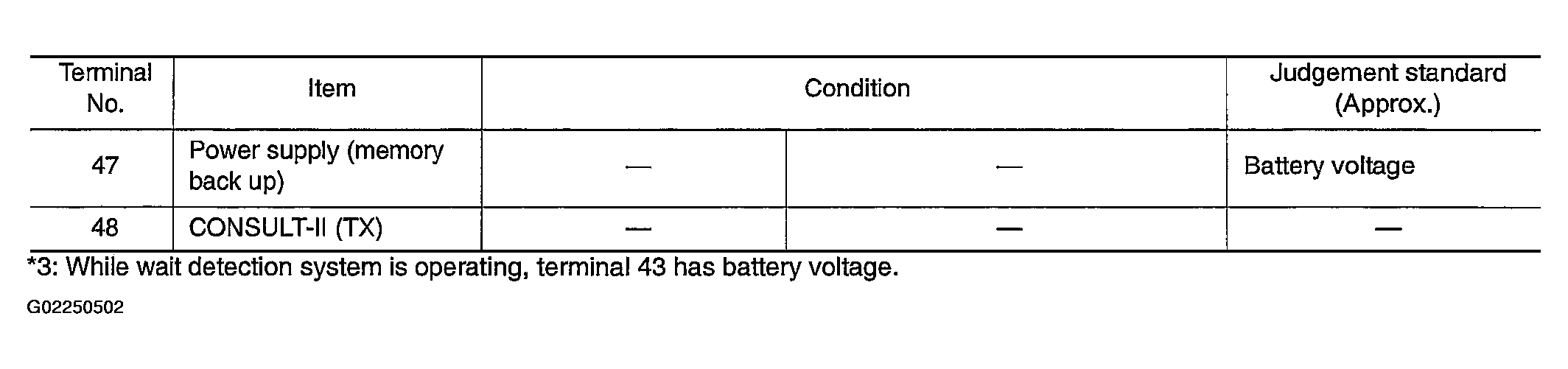

Fig 4: Transfer Control Unit Inspection Table (4 of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
