CONSULT-II Function
›
Data Monitor
›
Display Item List
Display Item List

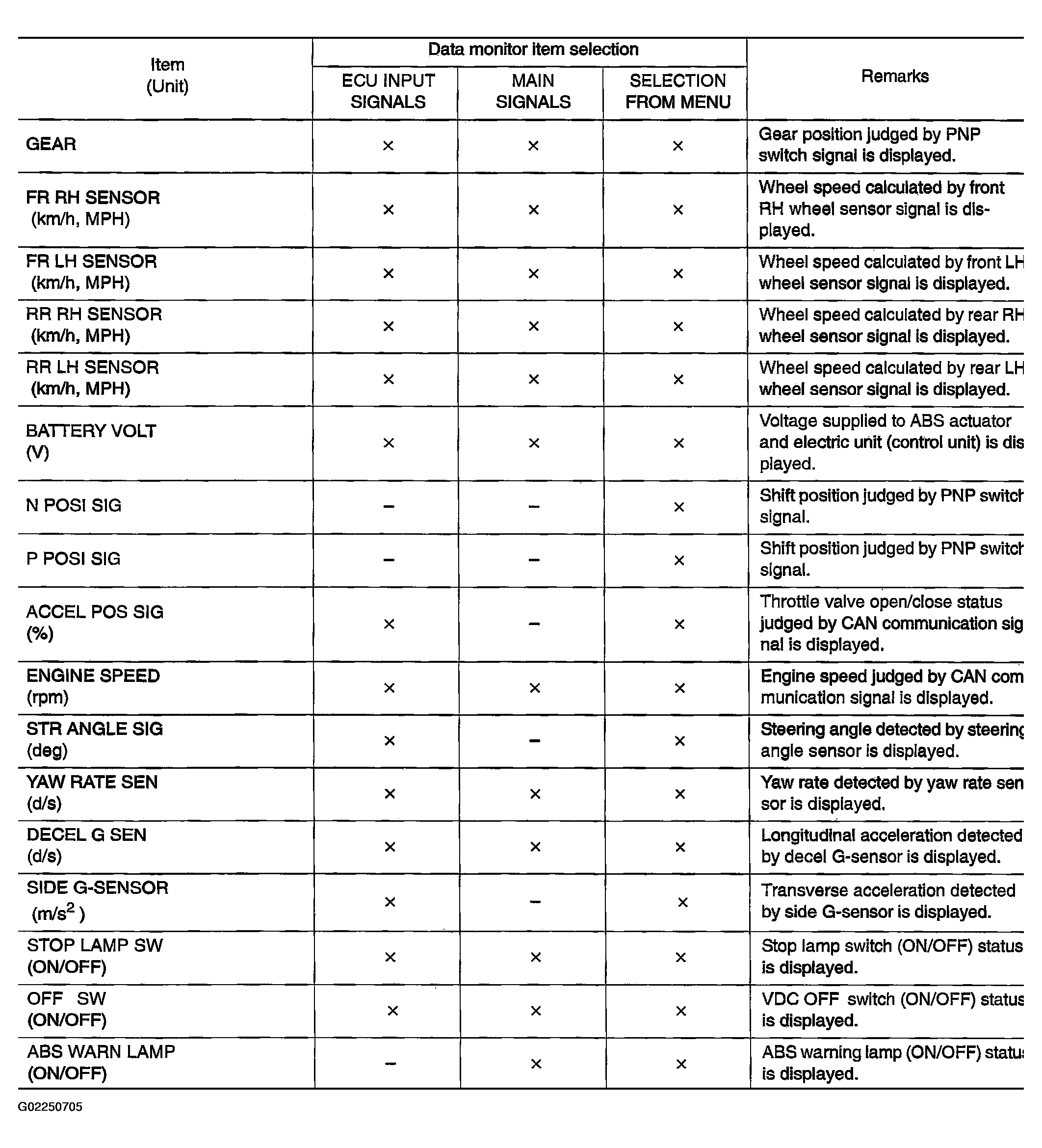

Fig 1: Data Monitor Item List (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Data Monitor Item List (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitor Item List (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
