Engine Control System
›
ASCD Brake Switch
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

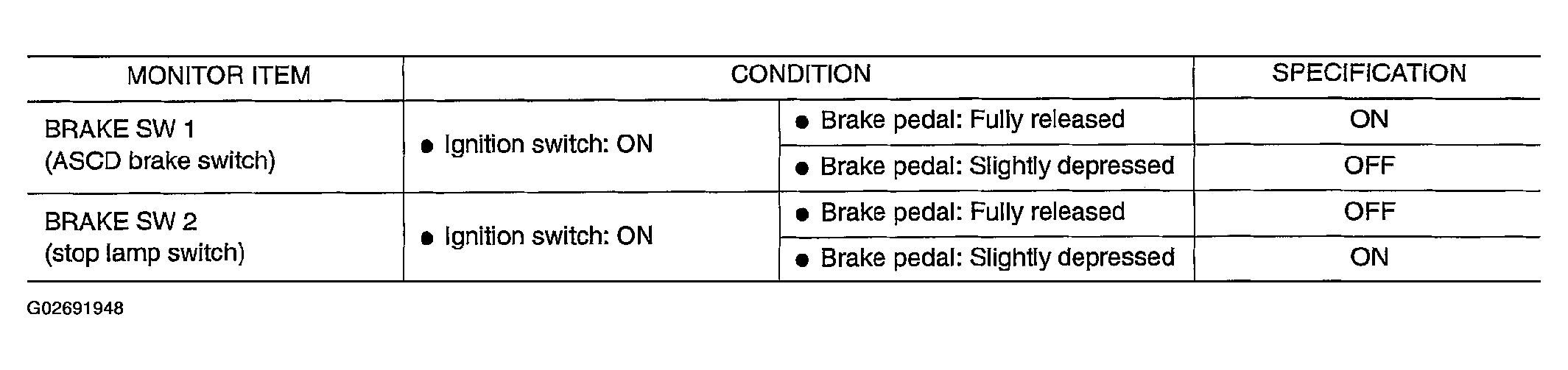

Fig 1: Data Monitor Mode Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
