Without CONSULT-II

  1. Remove fuel pump fuse located in IPDM E/R.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

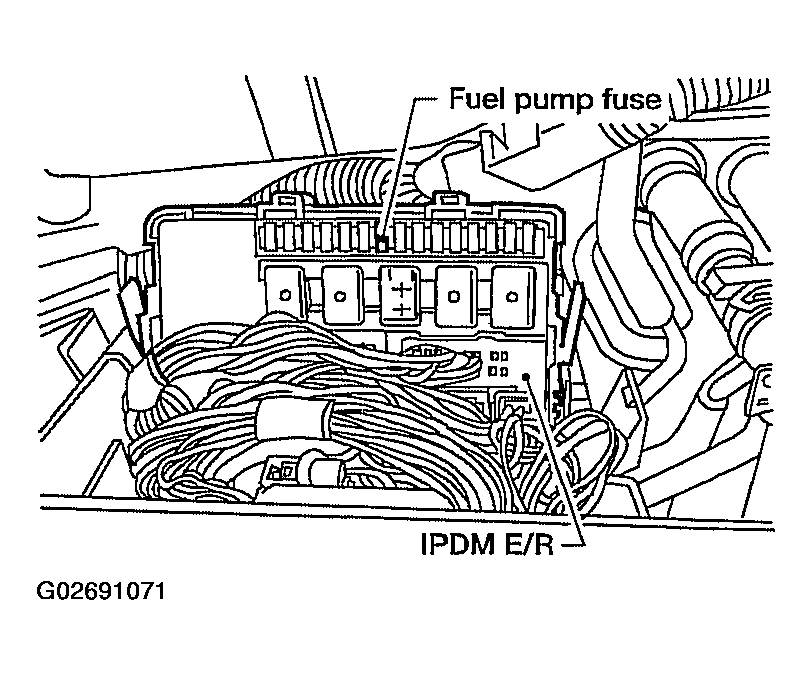

    Fig 1: Locating Fuel Pump Fuse In IPDM E/R
    G02691071Courtesy of NISSAN MOTOR CO., U.S.A.
