DTC P0117, P0118: ECT Sensor
›
On Board Diagnosis Logic
›
Fail-Safe Mode
Fail-Safe Mode
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

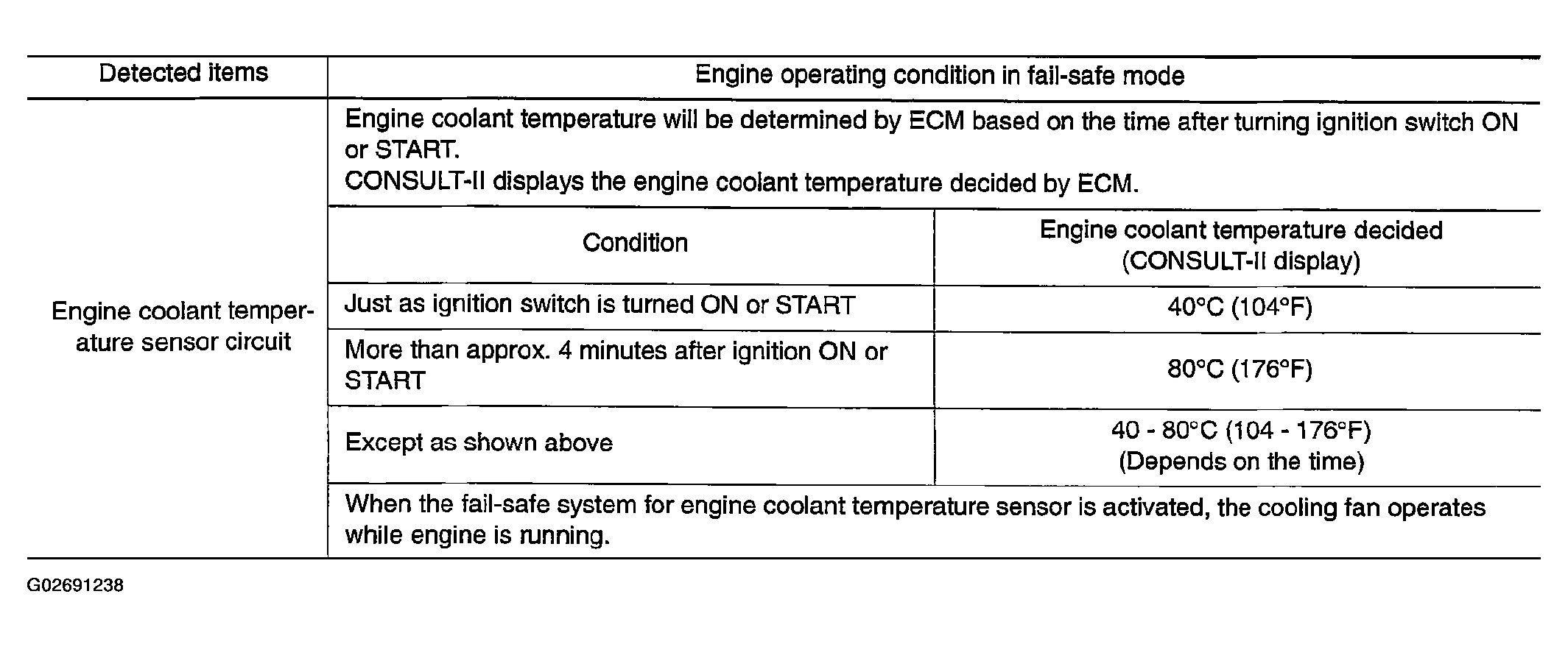

Fig 1: DTC P0117, P0118 ECT Sensor - Fail-Safe Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
