DTC P0172, P0175: Fuel Injection System Function
›
Wiring Diagram
›
Bank 1
Bank 1

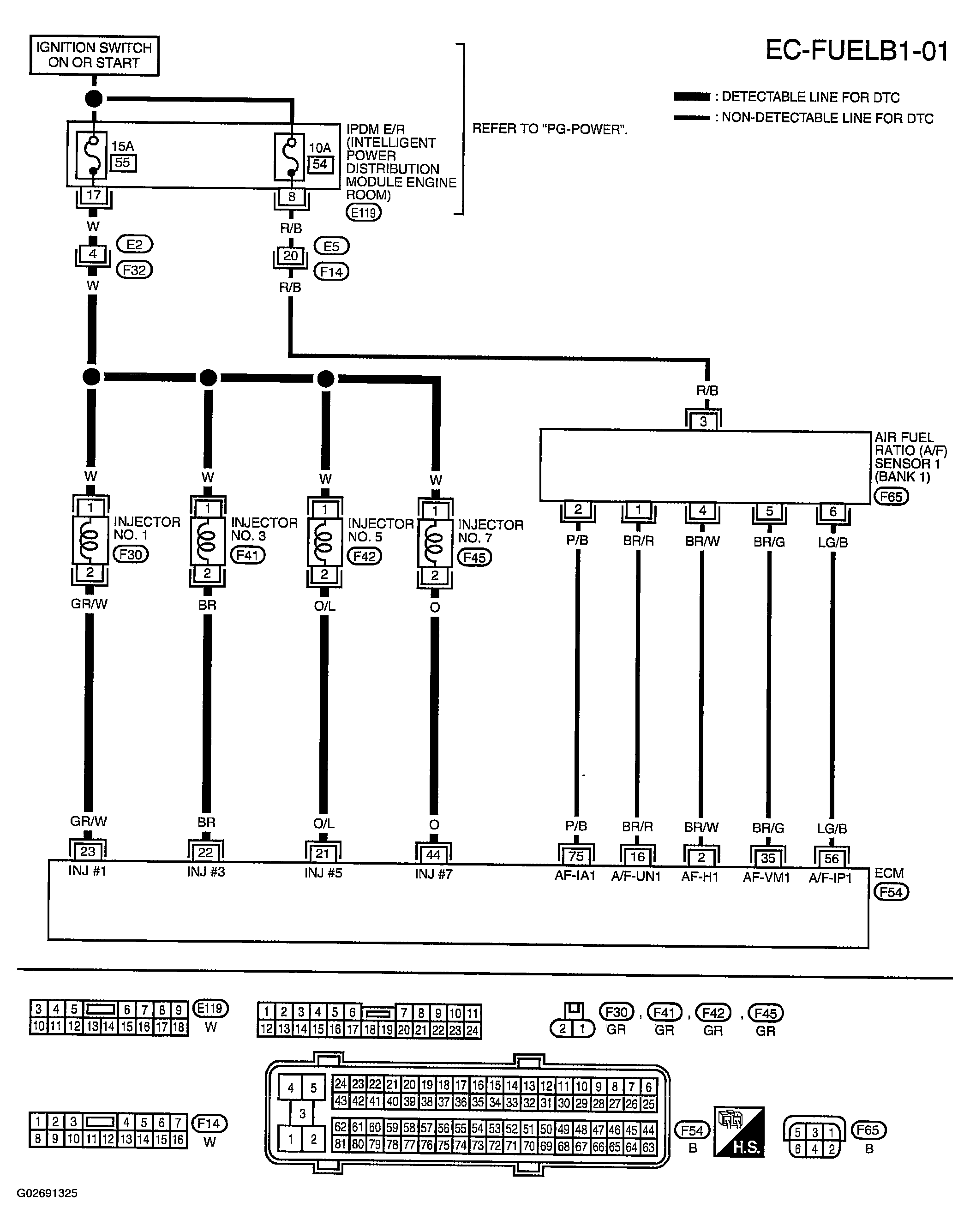

Fig 1: DTC P0172, P0175 Fuel Injection System Function - Wiring Diagram (Bank 1) - EC-FUELB1-01
Courtesy of NISSAN MOTOR CO., U.S.A.
