DTC P1147, P1167: Ho2S2
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

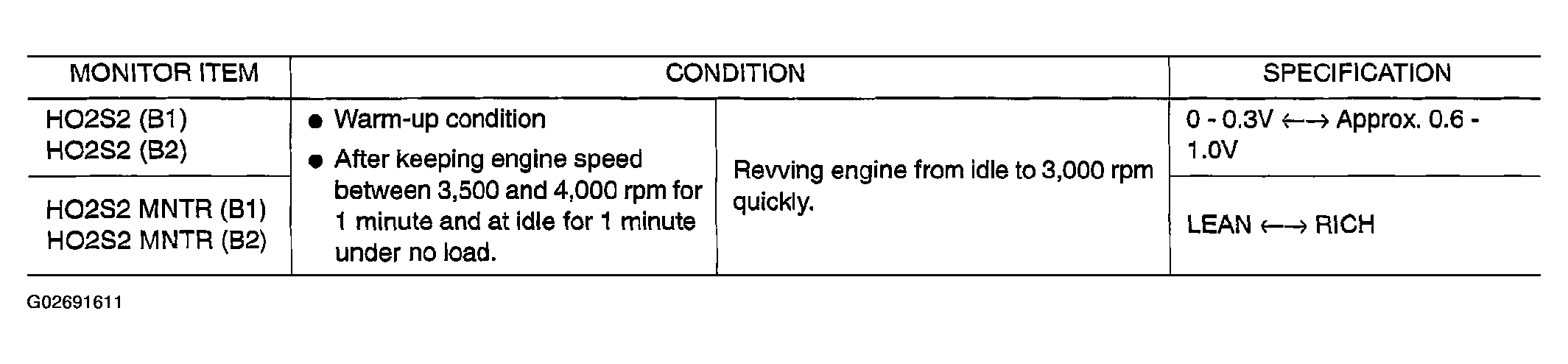

Fig 1: DTC P1147, P1167 HO2S2 CONSULT-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
