Engine Control System
›
System Diagram
System Diagram

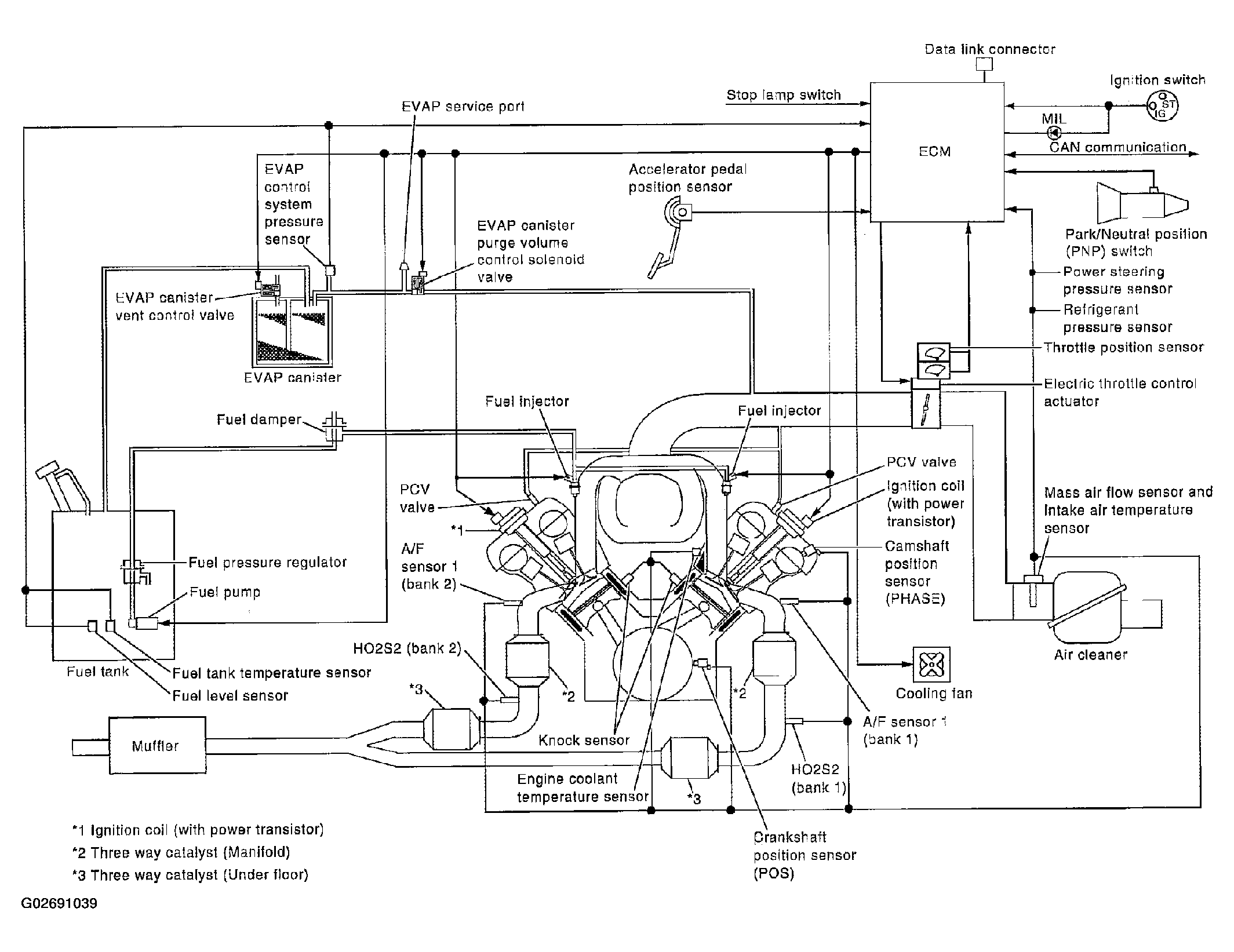

Fig 1: Identifying Engine Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
