Monitored Item
Monitored Item

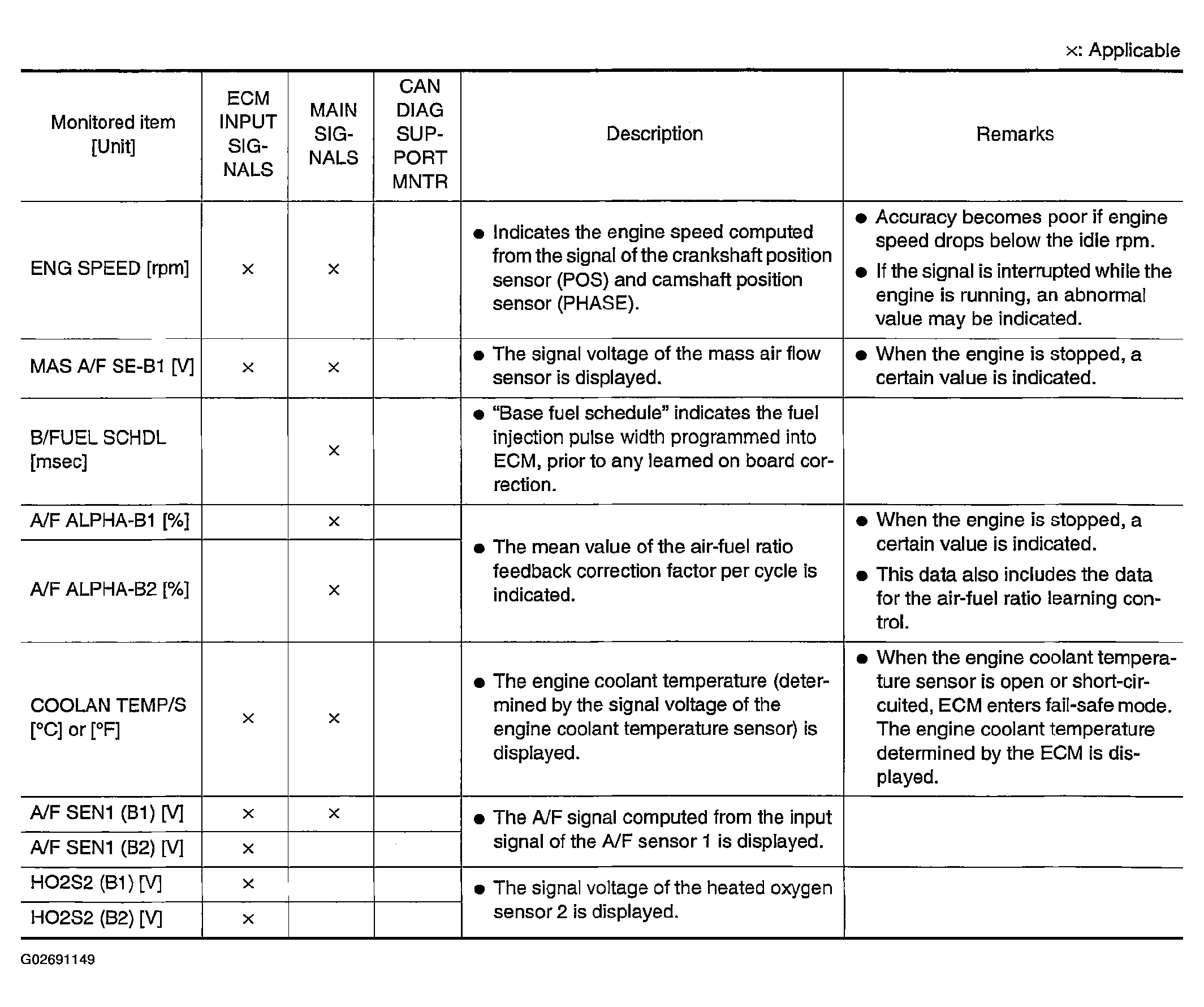

Fig 1: Data Monitor Mode - Monitored Item Description (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

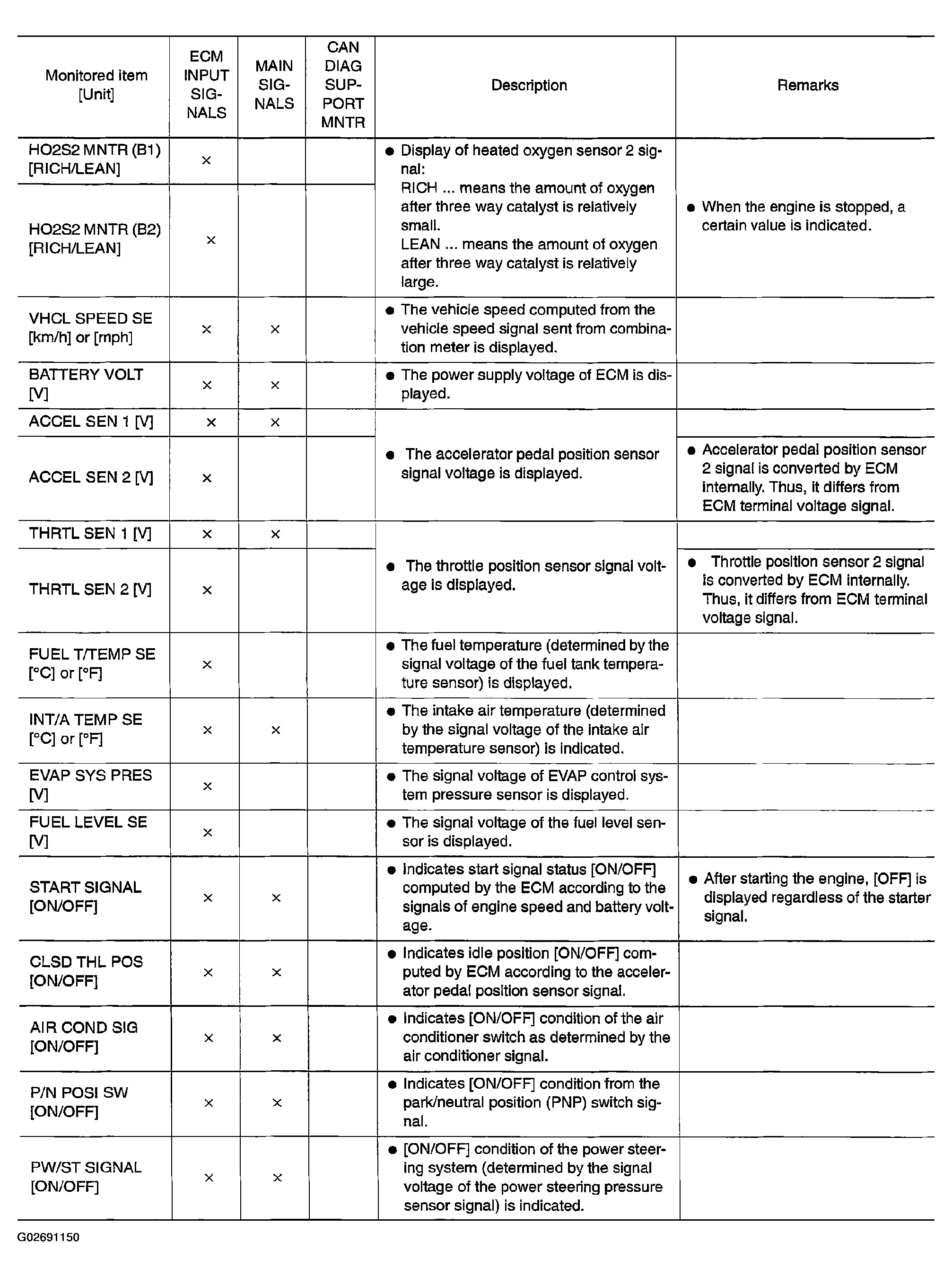

Fig 2: Data Monitor Mode - Monitored Item Description (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

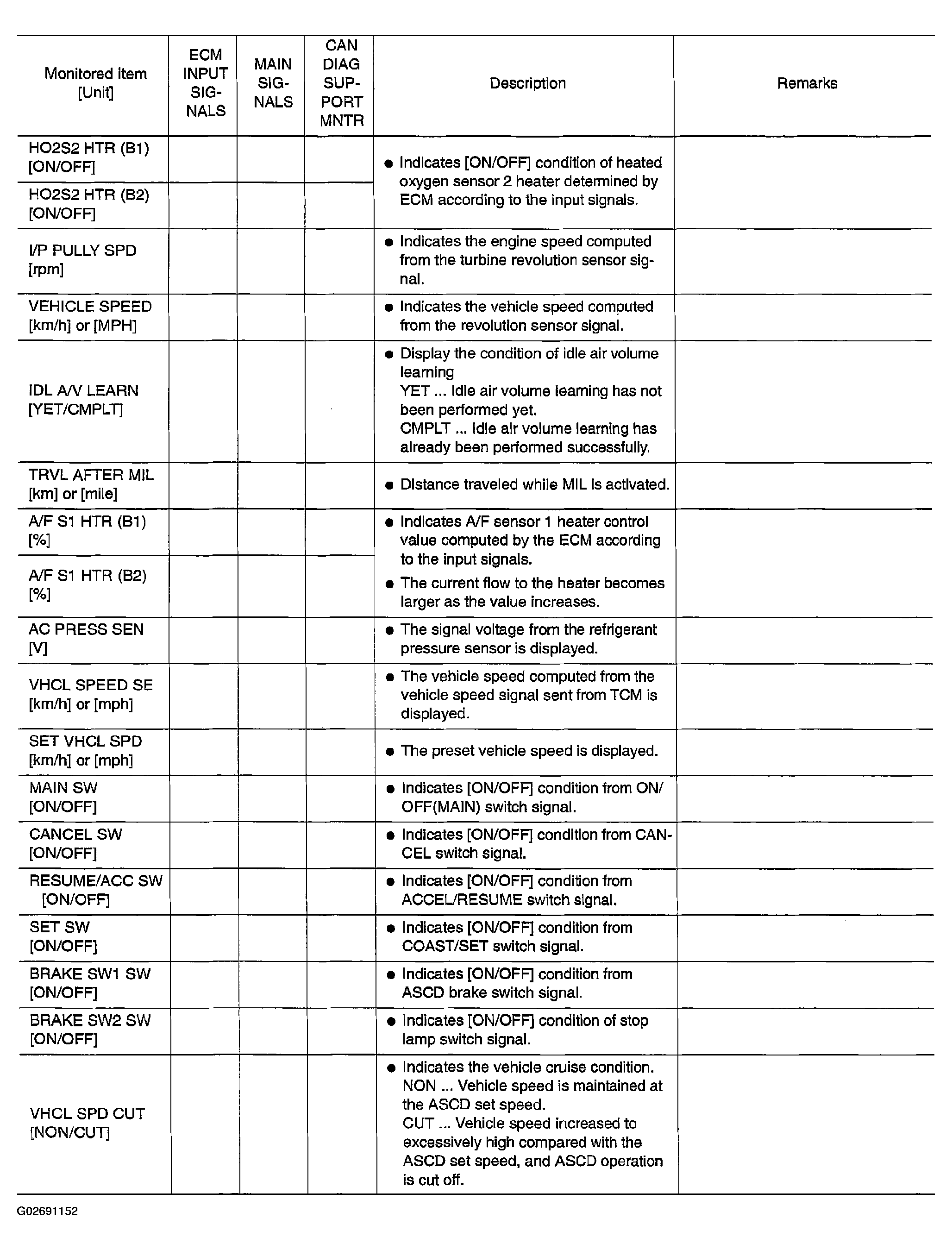

Fig 3: Data Monitor Mode - Monitored Item Description (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

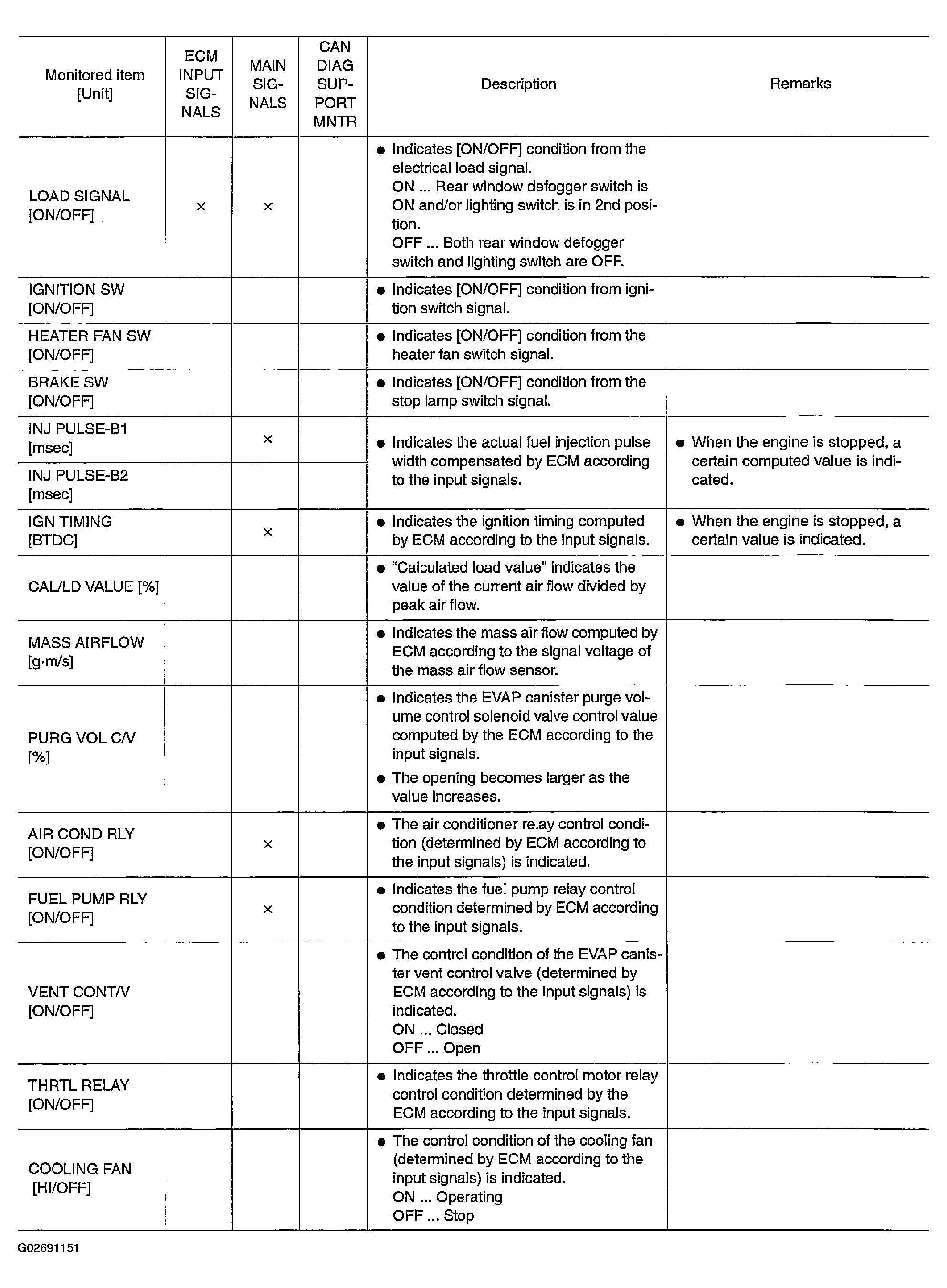

Fig 4: Data Monitor Mode - Monitored Item Description (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

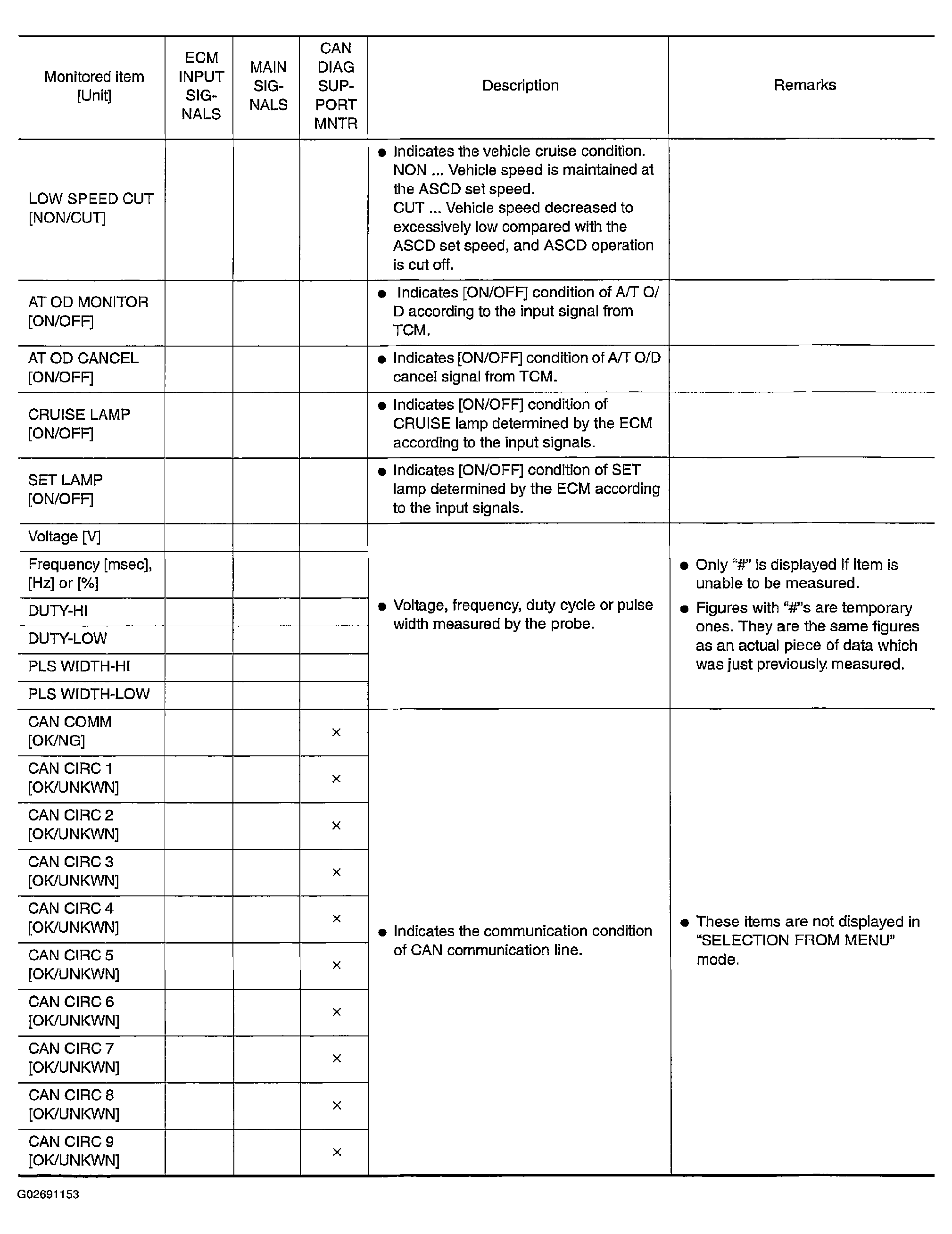

Fig 5: Data Monitor Mode - Monitored Item Description (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
