Work Support Mode

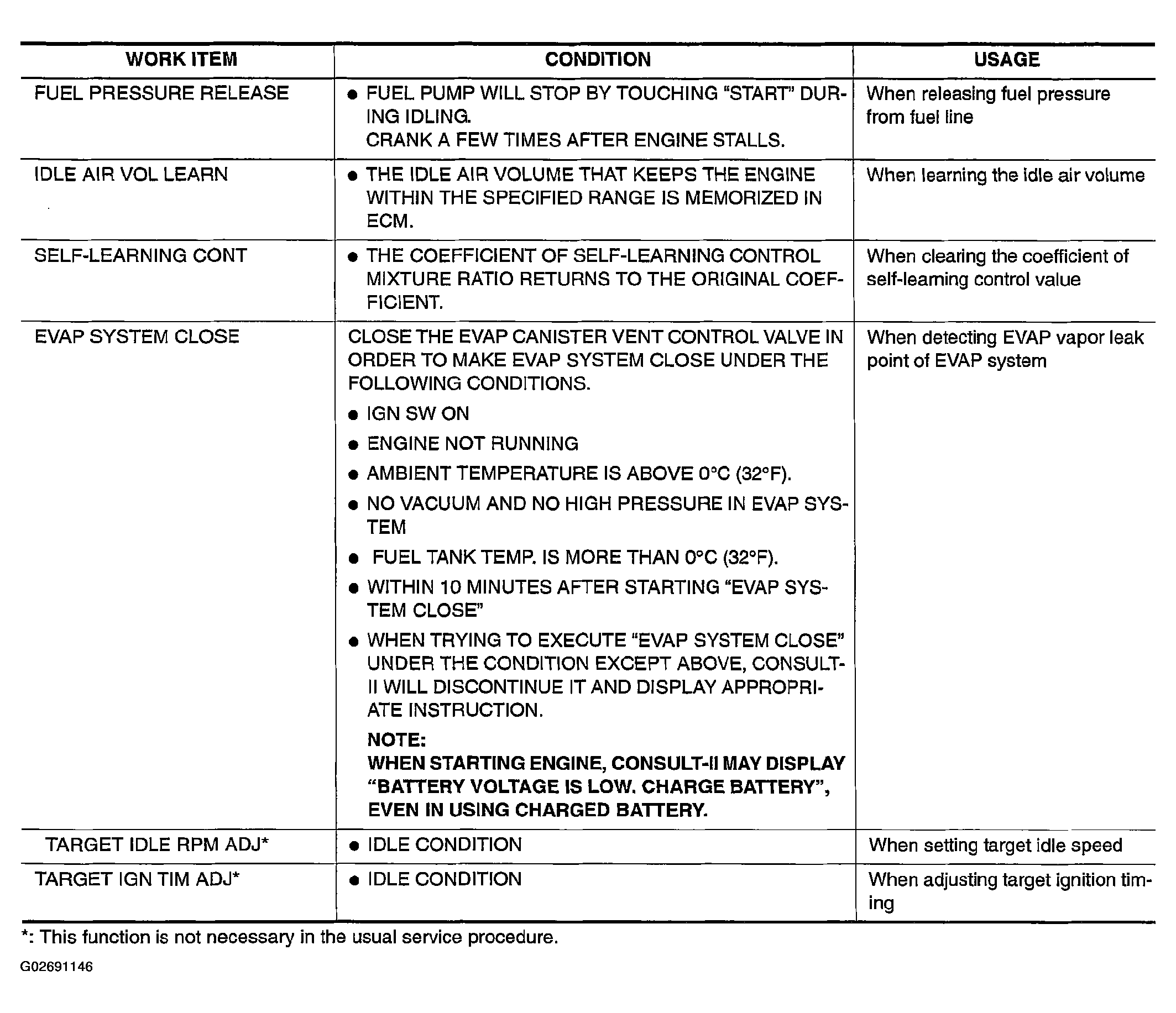

Fig 1: Work Support Mode - Work Item Usage
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
