Cross-Sectional View (2WD models)
Cross-Sectional View (2WD models)

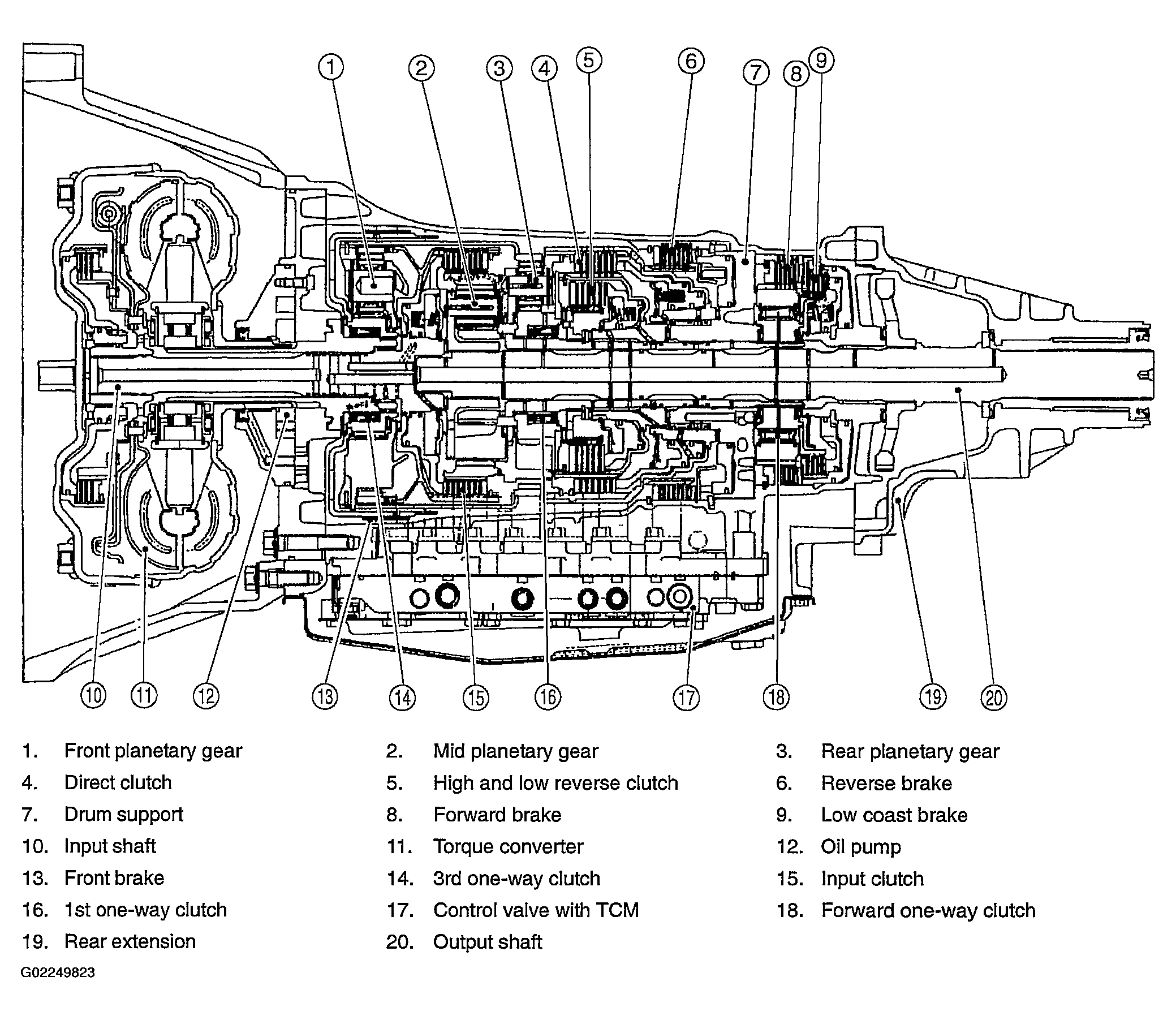

Fig 1: Cross-Sectional View Of A/T Assembly (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
