Diagnostic Procedure

CHECK DTC
With CONSULT-II
1. Turn ignition switch "ON". (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II
3. Touch "ERASE".
4. Turn ignition switch "OFF" and wait at least 10 seconds.
5. Perform "DTC Confirmation Procedure", DTC CONFIRMATION PROCEDURE .
Is the "TCM.ROM" displayed again?
1. YES: Replace the control valve with TCM. Refer to CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 .
2. NO: INSPECTION END

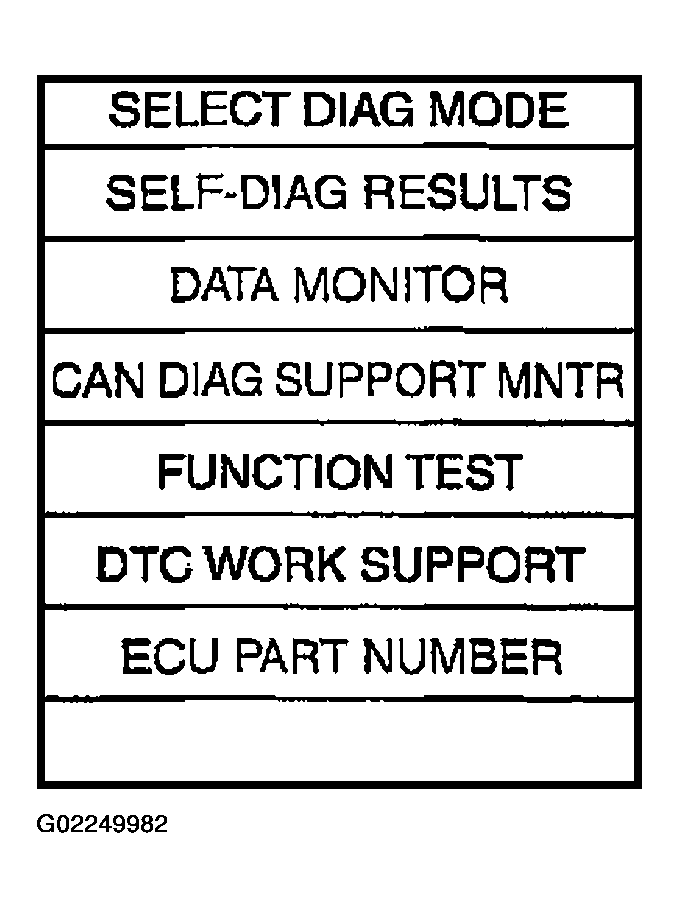

Fig 1: Displaying CONSULT-II SELECT DIAG MODE Screen

G02249982

Courtesy of NISSAN MOTOR CO., U.S.A.
