Front Power Window Motor (Passenger Side) Circuit Check

CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between front power window switch (passenger side) connector and ground.

  Fig 1: Connector Terminal Wire Color Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

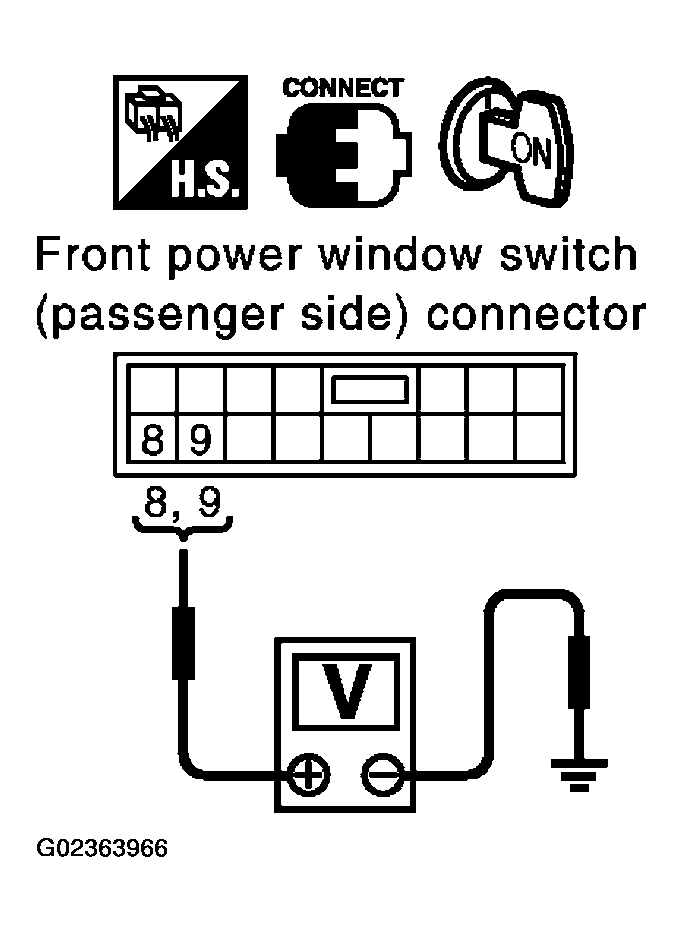

  Fig 2: Checking Voltage Between Front Power Window Switch (Passenger Side) Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace front power window switch (passenger side).
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) and front power window motor (passenger side) connector.
3. Check continuity between front power window switch (passenger side) connector D36 terminals 8, 9 and front power window motor (passenger side) connector D38 terminals 1, 2.
  1. 8 (L) - 2 (L): Continuity should exist.
  2. 9 (G) - 1 (G): Continuity should exist.
OK or NG
1. OK: Replace front power window motor (passenger side).
2. NG: Repair or replace harness.
Fig 3: Checking Harness Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
