Limit Switch Circuit Check (Passenger Side)

  1. CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) LIMIT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between front power window motor (passenger side) connector and ground.

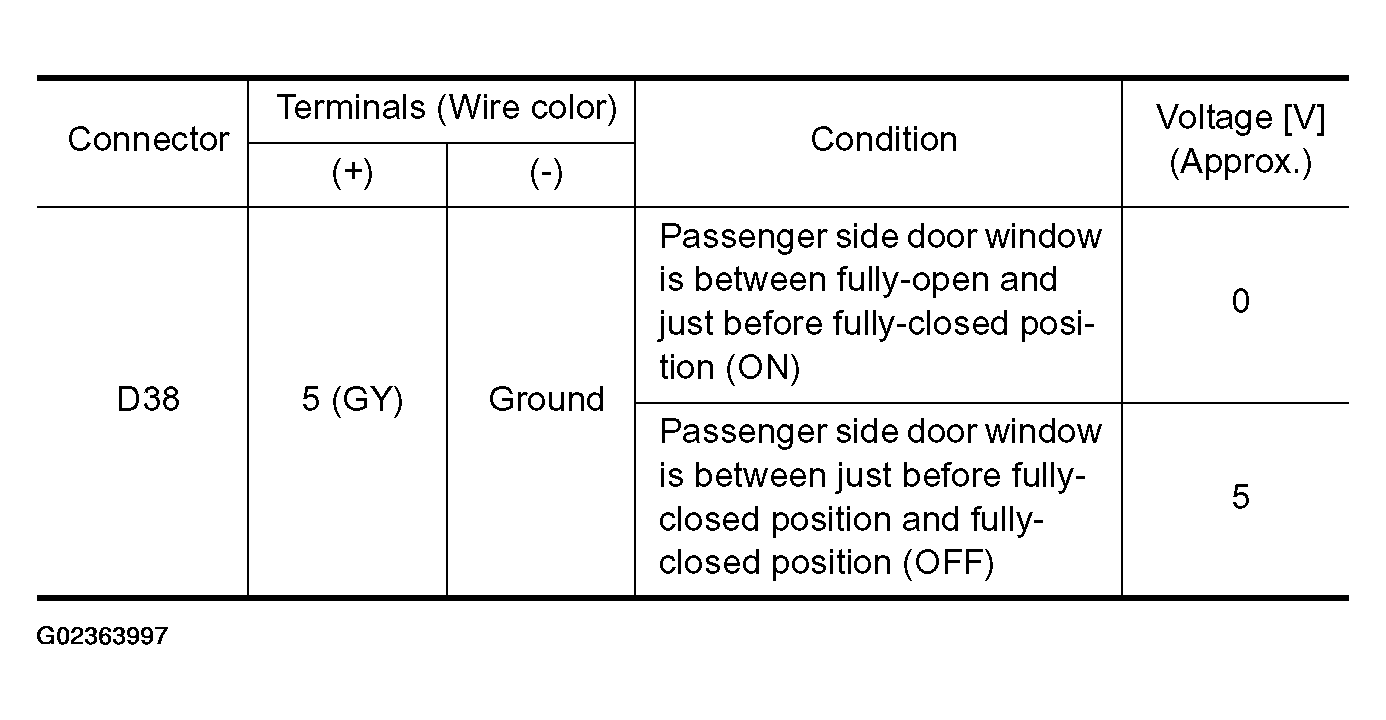

      Fig 1: Connector Terminal Wire Color Specification
      G02363997Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 2: Checking Voltage Between Front Power Window Motor (Passenger Side) Connector And Ground
      G02363998Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Limit switch circuit is OK.
    2. NG: GO TO 2.
  2. CHECK GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor (passenger side) connector.
    3. Check continuity between front power window motor (passenger side) connector D38 terminal 6 and ground.
      1. 6 (SB) - Ground: Continuity should exist.

    OK or NG

    1. OK: GO TO  4 .
    2. NG: GO TO 3.
    Fig 3: Checking Continuity Between Front Power Window Motor (Passenger Side) Connector D38 Terminal 6 And Ground
    G02363999Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS CONTINUITY 1
    1. Disconnect front power window switch (passenger side) connector.
    2. Check continuity between front power window switch (passenger side) connector D36 terminal 3 and front power window motor (passenger side) connector D38 terminal 6.
      1. 3 (SB) - 6 (SB): Continuity should exist.

    OK or NG

    1. OK: Replace front power window switch (passenger side).
    2. NG: Repair or replace harness.
    Fig 4: Checking Harness Continuity 1
    G02364000Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between front power window switch (passenger side) connector D36 terminal 15 and ground.
      1. 15 (GY) - Ground: Approx. 5V

    OK or NG

    1. OK: GO TO 5
    2. NG: Replace front power window switch (passenger side).
    Fig 5: Checking Voltage Between Front Power Window Switch (Passenger Side) Connector D36 Terminal 15 And Ground
    G02364001Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS CONTINUITY 2
    1. Turn ignition switch OFF.
    2. Disconnect front power window switch (passenger side) connector.
    3. Check continuity between front power window switch (passenger side) connector D36 terminal 15 and front power window motor (passenger side) connector D38 terminal 5.
      1. 15 (GY) - 5 (GY): Continuity should exist.

    OK or NG

    1. OK: Replace front power window motor (passenger side).
    2. NG: Repair or replace harness.
    Fig 6: Checking Harness Continuity 2
    G02364002Courtesy of NISSAN MOTOR CO., U.S.A.
