Home › Infiniti › 2005 › FX35 AWD › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System › Oil Pump › Components

Oil Pump: Components

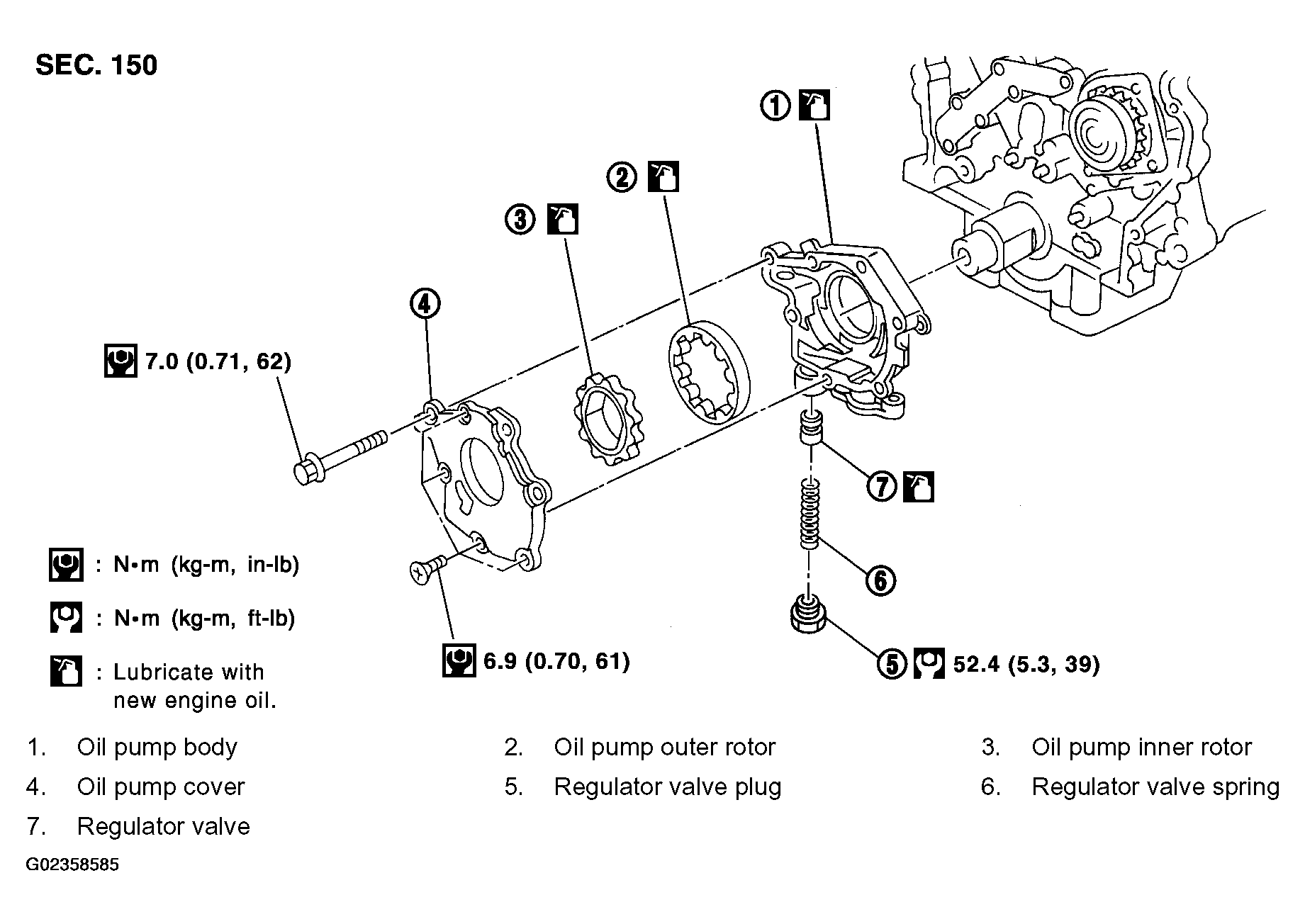

Fig 1: Oil Pump Replacement Components With Torque Specifications
G02358585Courtesy of NISSAN MOTOR CO., U.S.A.
