Intake Air Temperature Sensor

Check resistance between mass air flow sensor terminals 5 and 6 under the following conditions.

RESISTANCE CHECK SPECIFIED CONDITION

Intake air temperature °C (°F)	Resistance kohm
25 (77)	1.94-2.06

If NG, replace mass air flow sensor (with intake air temperature sensor).

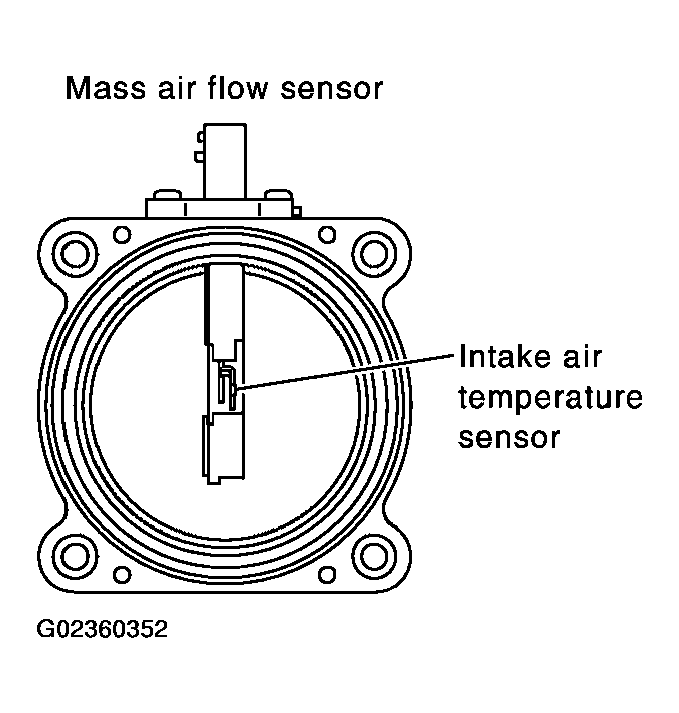

Fig 1: Identifying Intake Air Temperature Sensor Location
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Resistance Vs Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
