On Board Diagnosis Logic

NOTE: If DTC P0452 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229, Refer to "DTC P1229 SENSOR POWER SUPPLY  ".

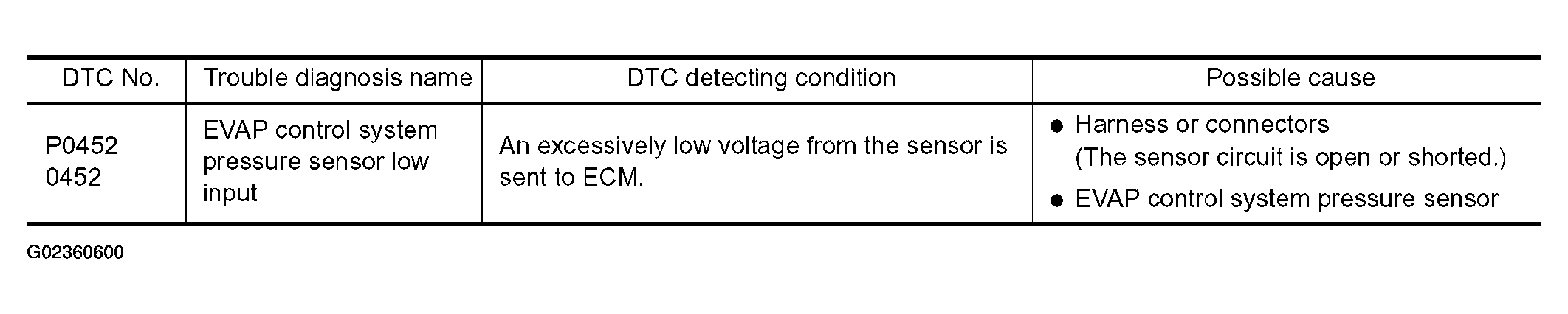

Fig 1: DTC P0452 Diagnosis Trouble Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
