CONSULT-II Function (ENGINE)
›
Active Test Mode
›
Test Item
Test Item

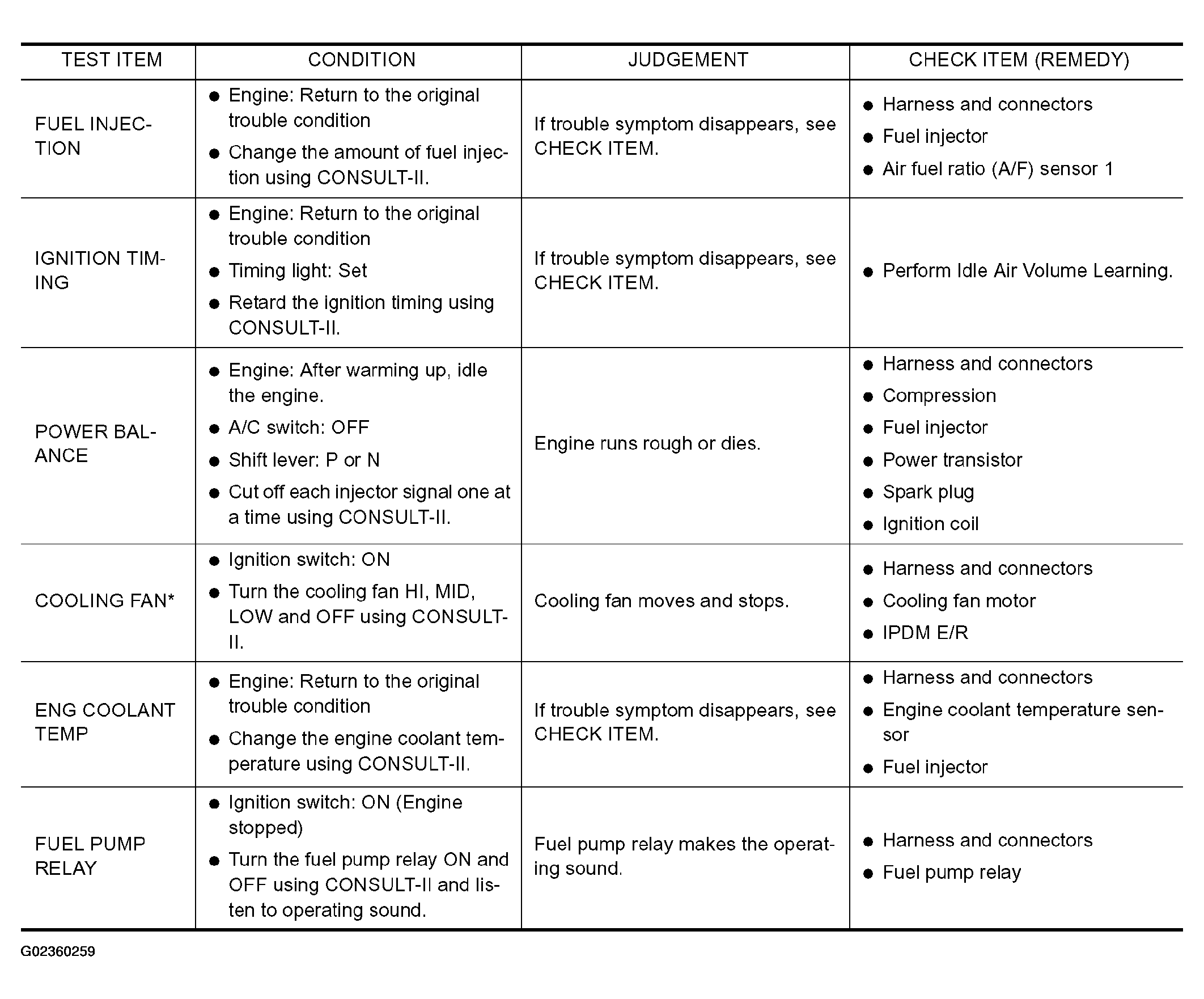

Fig 1: Active Test Mode Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

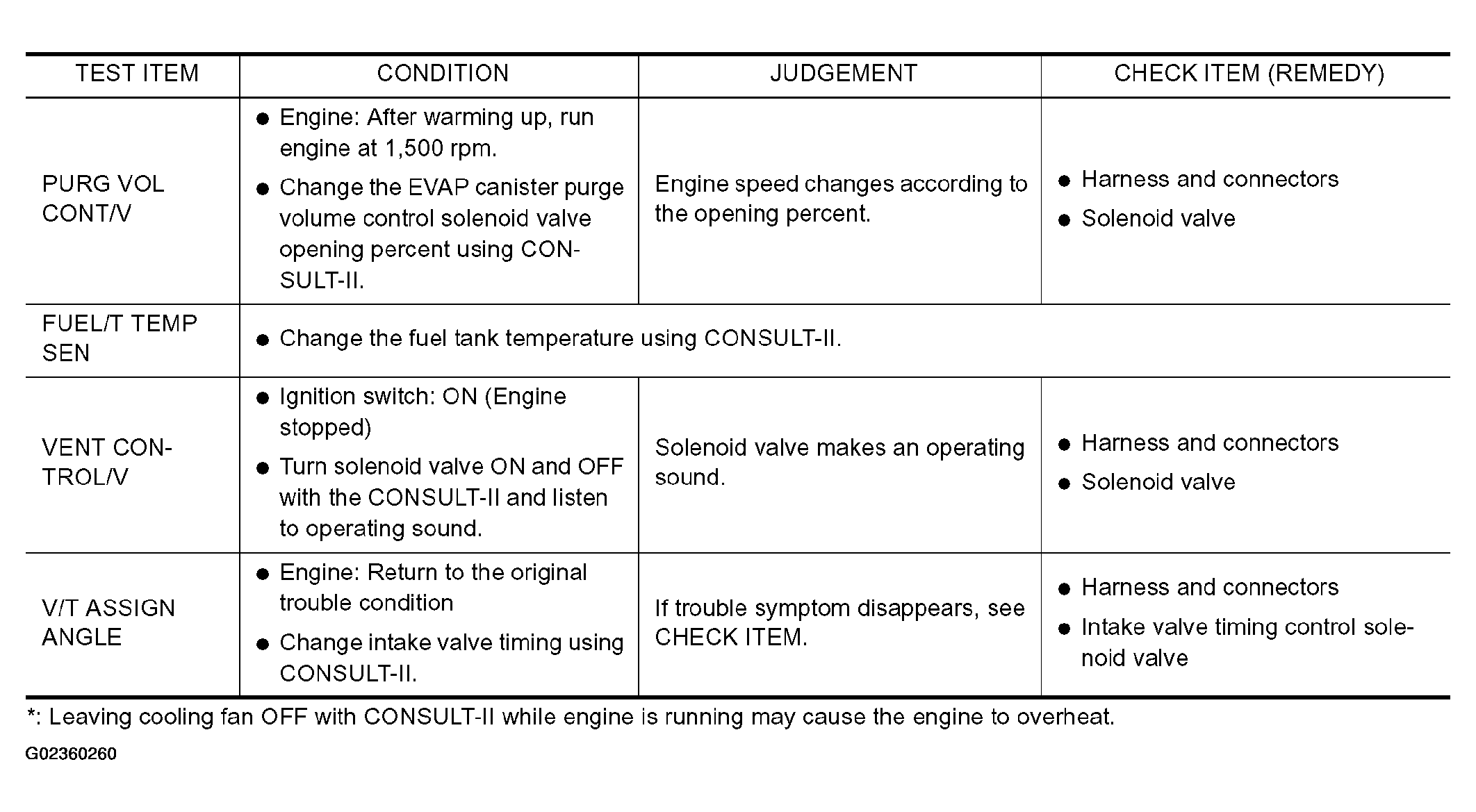

Fig 2: Active Test Mode Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
