Setting Change Function

The settings of the automatic driving positioner system can be changed, using CONSULT-II and the display unit in the center of the instrument panel.

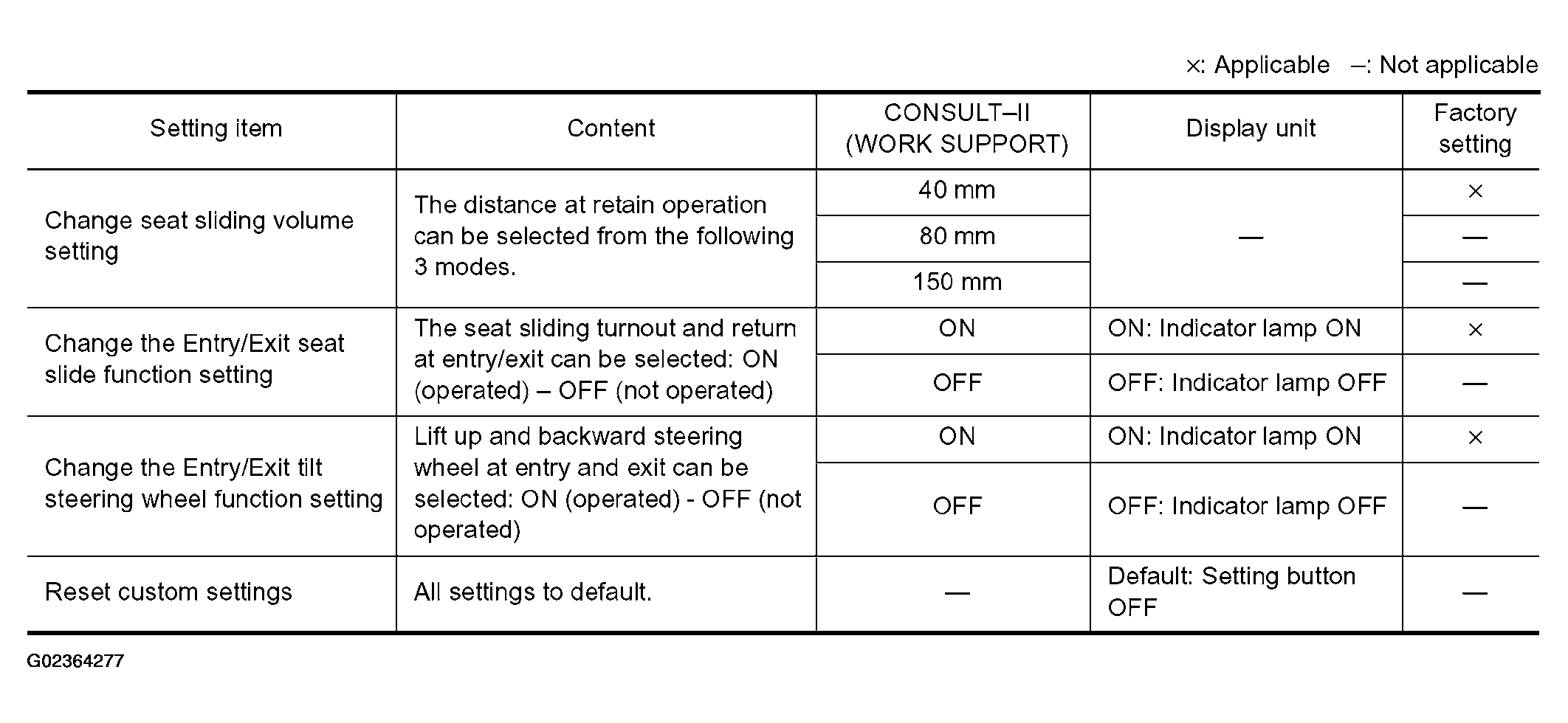

Fig 1: Setting Change Function Table

Courtesy of NISSAN MOTOR CO., U.S.A.

It is possible to set sliding driver seat for entry/exit of vehicle by pressing set switch.

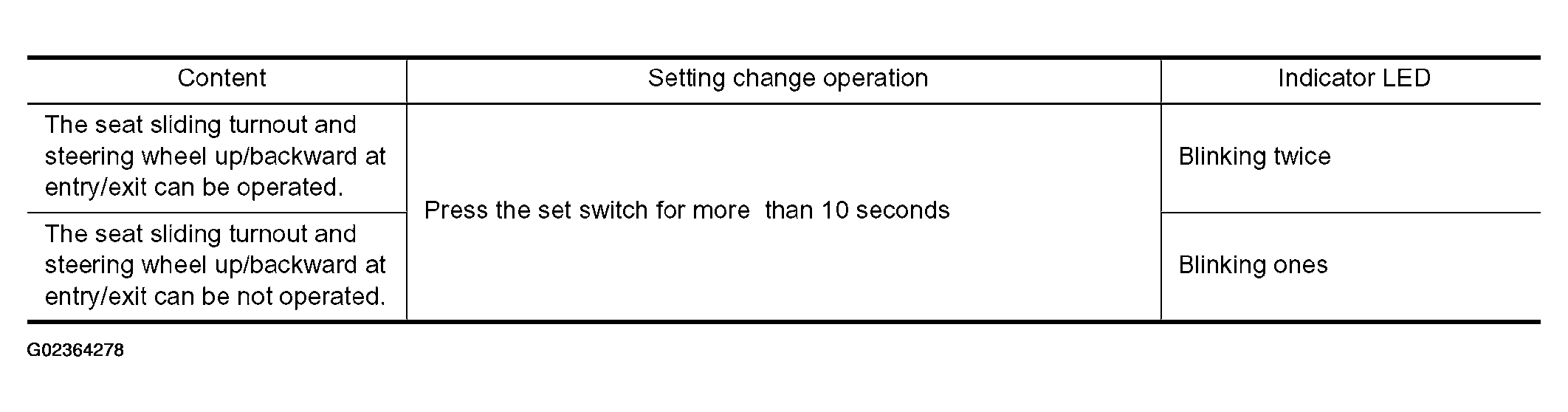

Fig 2: Setting Change Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.
