Automatic Operation

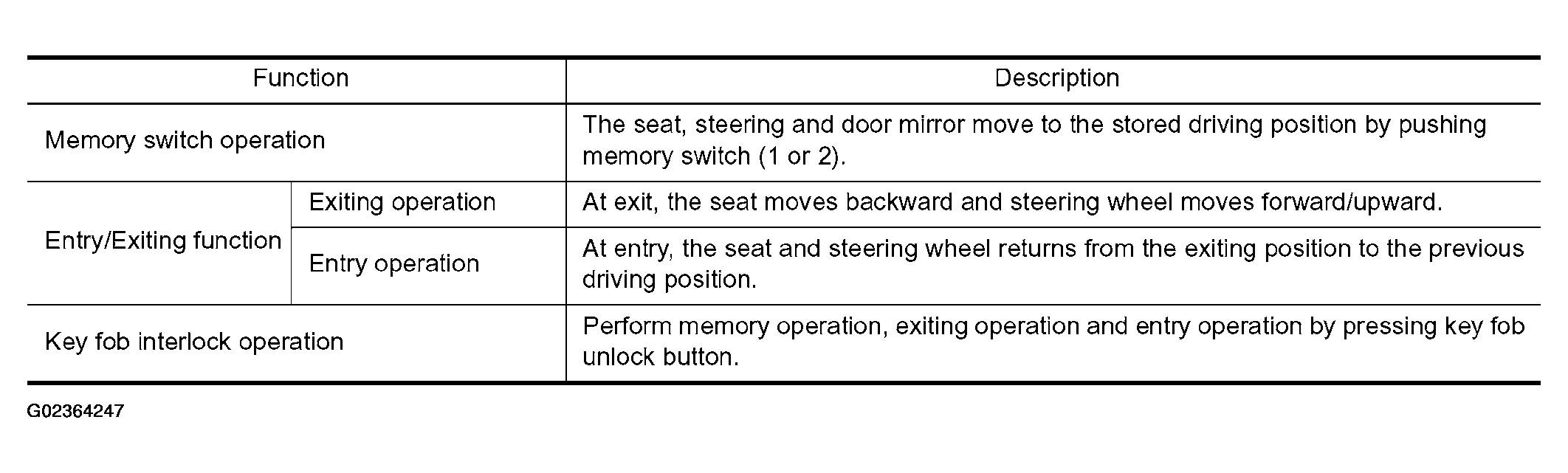

Fig 1: Automatic Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)-->OFF (close)-->ON (open), the Entry/ Exiting operation becomes possible.
After exiting operation is carried out, return operation can be operated.

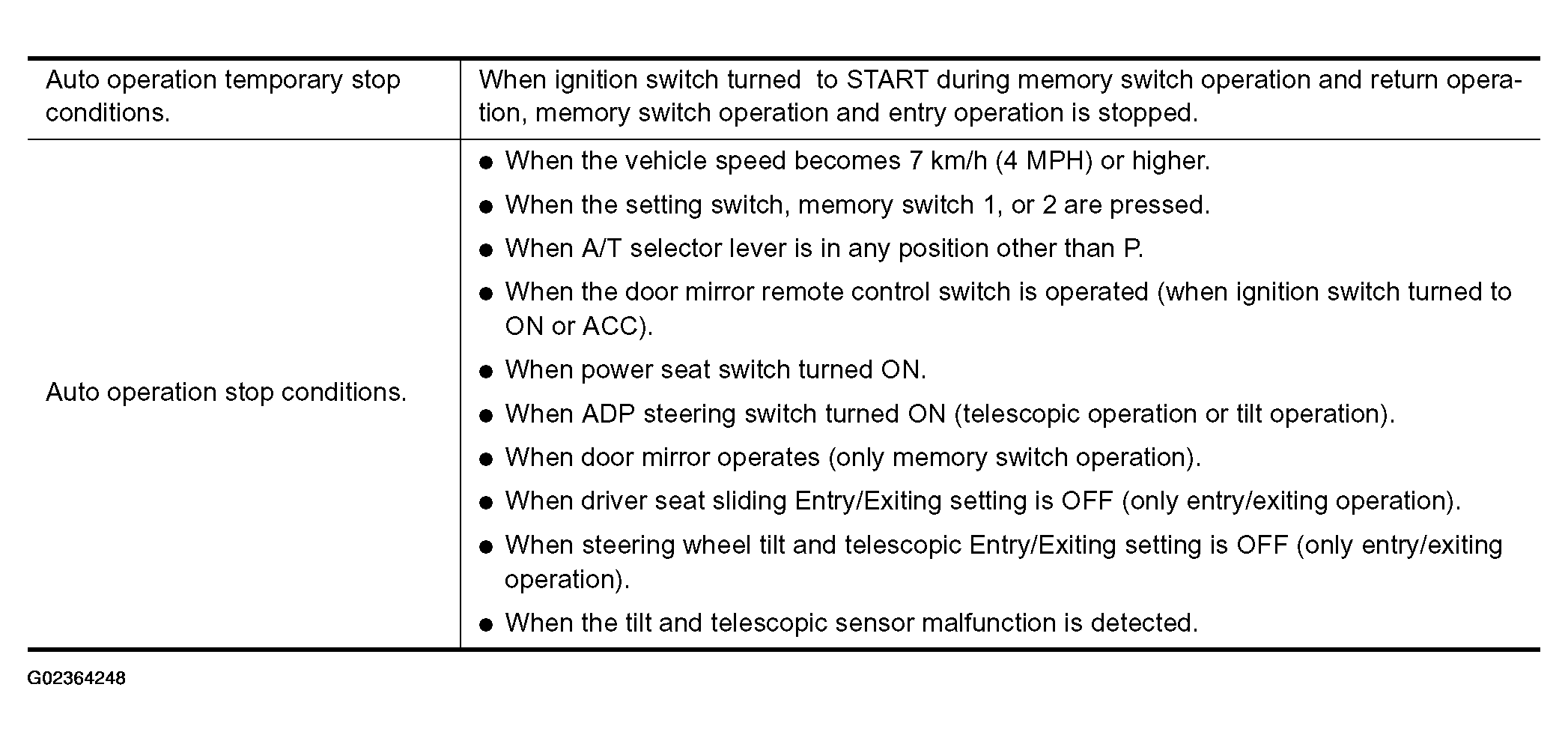

Fig 2: Auto Operation Stop Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: During automatic operation, if the ignition switch is turned ON-->START, the automatic operation is suspended. When the ignition switch returns to ON, it resumes.
