Terminals and Reference Values for BCM
Terminals and Reference Values for BCM

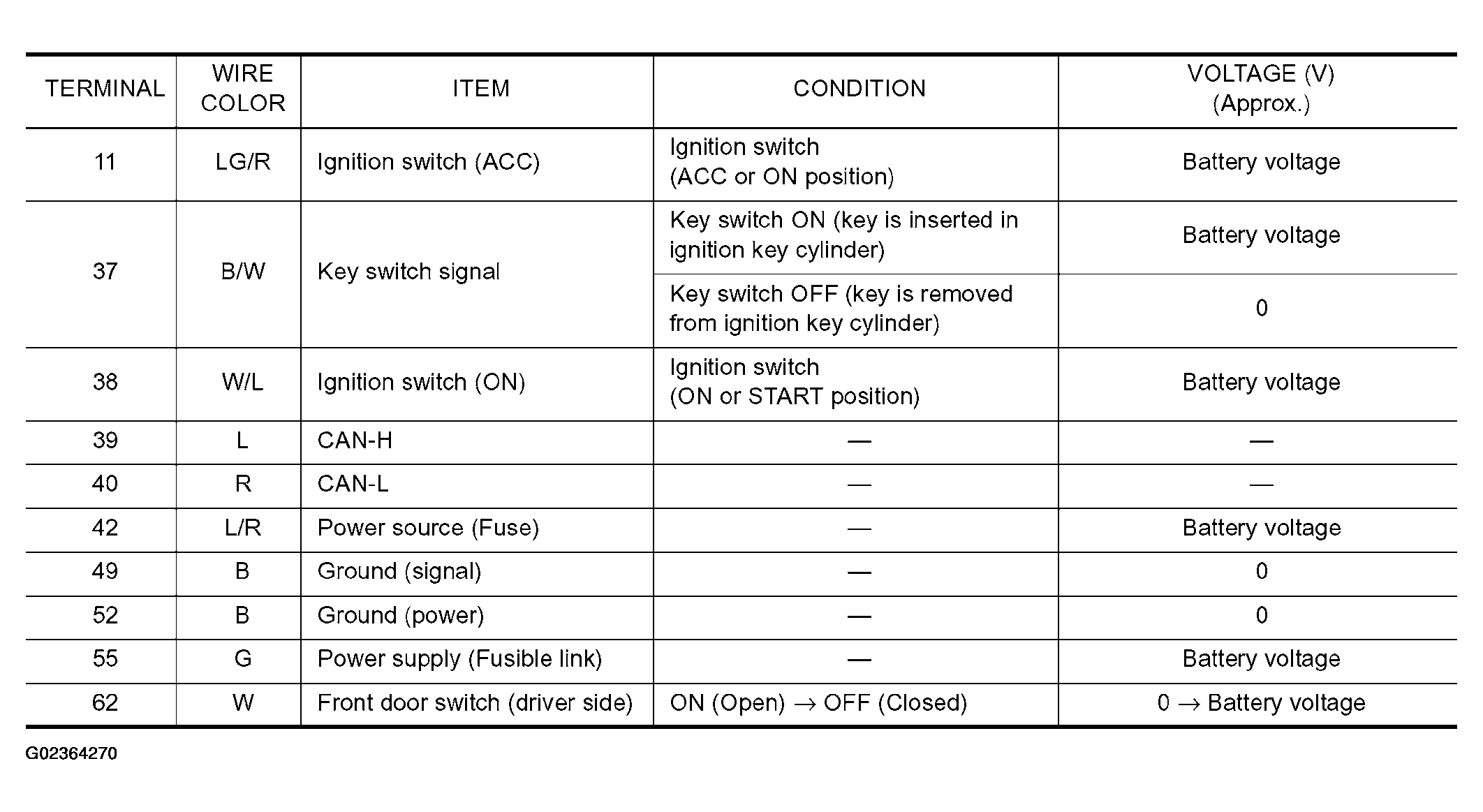

Fig 1: Terminals And Reference Values For BCM Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
