Front Door Key Cylinder Switch Check

With CONSULT-II

Check ("KEY CYL LK-SW", "KEY CYL UN-SW") in "DATA MONITOR" mode for "POWER DOOR ROCK SYSTEM" with CONSULT-II. Refer to "DATA MONITOR "

Fig 1: Monitor Item Condition Description

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Data Monitor - Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Check voltage between power window main switch connector and ground.
   Fig 3: Connector Terminal Wire Color Specification

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 4: Checking Voltage Between Power Window Main Switch Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Further inspection is necessary. Refer to SYMPTOM CHART  .
2. NG: GO TO 2.

1. Disconnect power window main switch and front door key lock assembly (driver side) connector.
2. Check continuity between power window main switch connector D6 terminals 4, 6 and front door lock assembly (driver side) connector D10 terminals 1, 6.
   1. 4 (P) - 1 (P): Continuity should exist.
   2. 6 (OR) - 6 (OR): Continuity should exist.

OK or NG

1. OK: GO TO 3.
2. NG: Repair or replace harness.

Fig 5: Checking Harness Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between front door lock assembly (driver side) connector D10 terminal 5 and ground.

1. 5 (B) - Ground: Continuity should exist.

OK or NG

1. OK: GO TO 4.
2. NG: Repair or replace harness.

Fig 6: Checking Continuity Between Front Door Lock Assembly (Driver Side) Connector D10 Terminal 5 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between door lock assembly terminals 1, 6 and 5.

Fig 7: Terminal Continuity Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Further inspection is necessary. Refer to SYMPTOM CHART  .
2. NG: Replace front door key cylinder (driver side) switch.

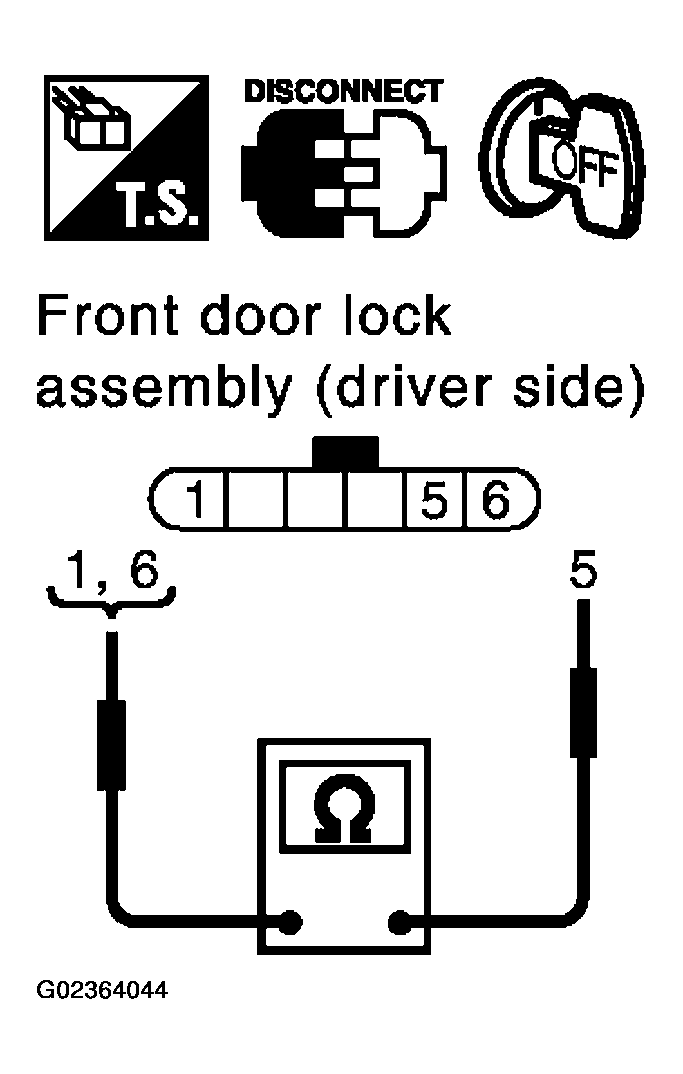

Fig 8: Checking Continuity Between Door Lock Assembly Terminals 1, 6 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.
