Power Window Serial Link Check (Passenger Side)

With CONSULT-II

Check ("CDL LOCK SW", "CDL UNLOCK SW") in DATA MONITOR mode for "REMOTE KEYLESS ENTRY SYSTEM" with CONSULT-II. Refer to "DATA MONITOR ".

Fig 1: Monitor Item Condition Description

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Data Monitor - Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Remove key from ignition switch, and the door of driver side and passenger side is closed.
2. Check signal between BCM connector and ground with oscilloscope when door lock and unlock switch (driver side and passenger side) is turned "LOCK" or "UNLOCK".
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door lock and unlock switch (driver side and passenger side) is turned "LOCK" or "UNLOCK".
   Fig 3: Connector Terminal Wire Color Specification

   Courtesy of NISSAN MOTOR CO., U.S.A.

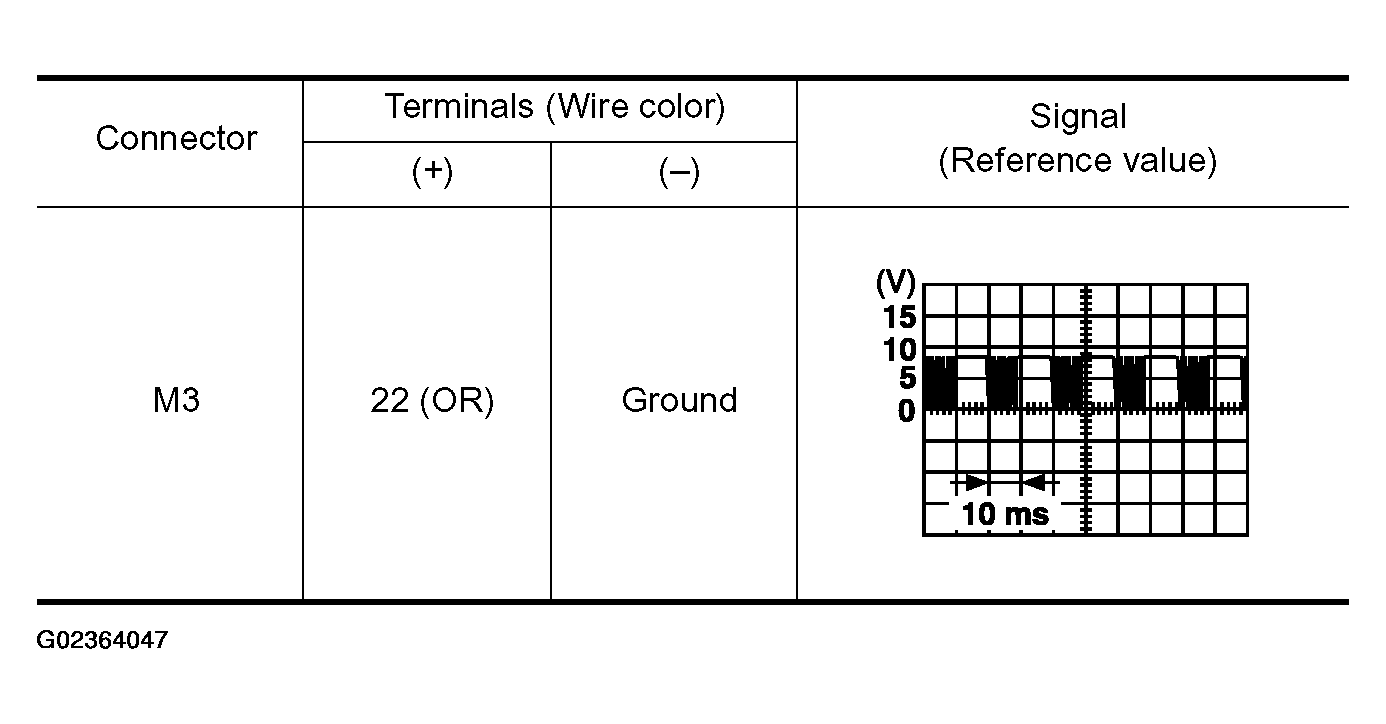

   Fig 4: Checking Signal Between BCM Connector And Ground With Oscilloscope

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: GO TO  3 .

Check ("POWER WINDOW DOWN") in "ACTIVE TEST" mode for "REMOTE KEYLESS ENTRY SYSTEM" with CONSULT-II. Refer to "ACTIVE TEST "

1. When "ACTIVE TEST" is performed, is the window of driver side and passenger side lowered.

OK or NG

1. OK: Further inspection is necessary. Refer to SYMPTOM CHART  .
2. NG: Replace BCM.

Fig 5: Data Monitor - Active Test Display

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect power window main switch and front power window switch (passenger side) connector.
3. Check continuity between power window main switch connector D7 terminal 17 and ground.
   1. 17 (B) - Ground: Continuity should exist.
   Fig 6: Checking Continuity Between Power Window Main Switch Connector D7 Terminal 17 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between front power window switch (passenger side) connector D36 terminal 11 and ground.
   1. 11 (B) - Ground: Continuity should exist.

OK or NG

1. OK: GO TO 4.
2. NG: Repair or replace harness.

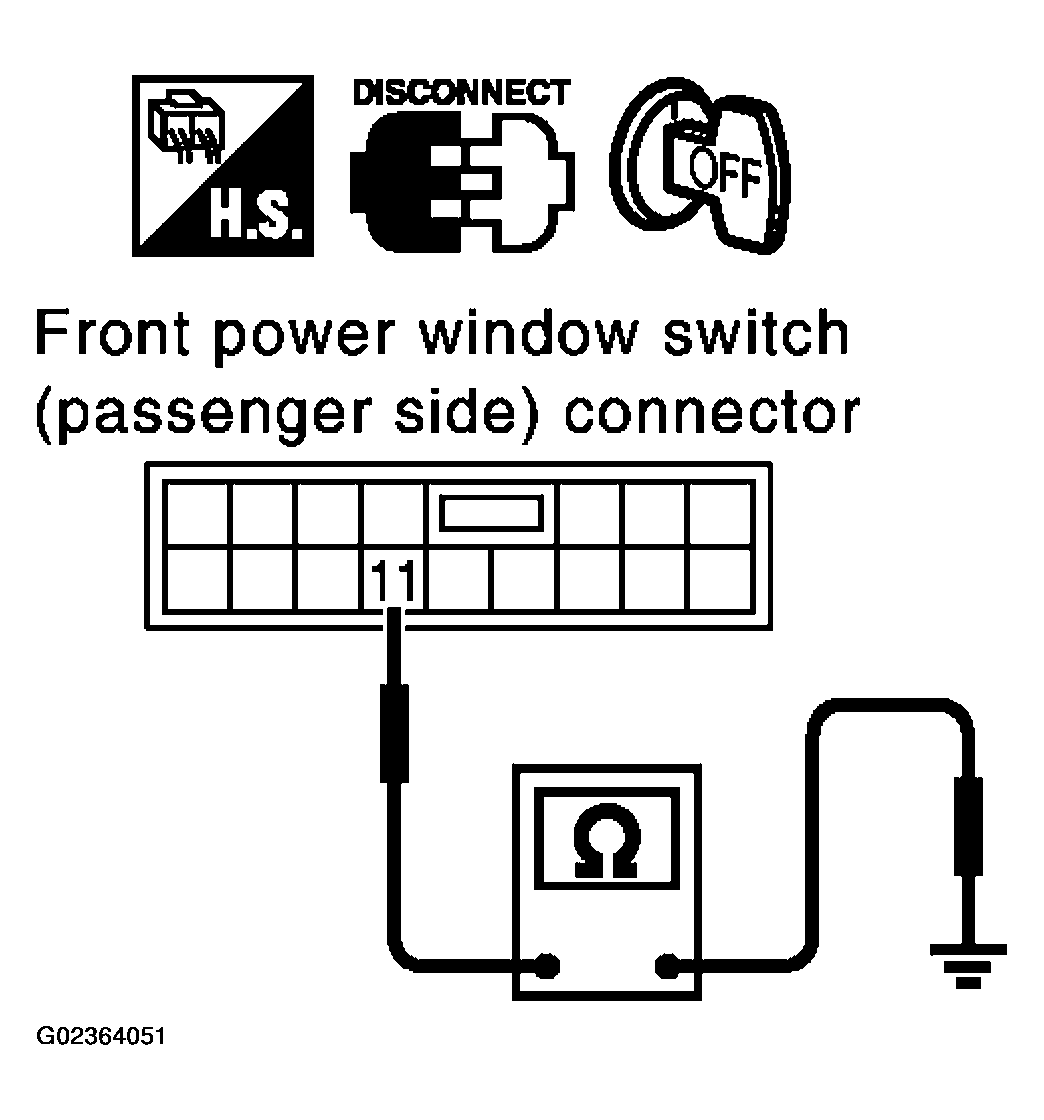

Fig 7: Checking Continuity Between Front Power Window Switch (Passenger Side) Connector D36 Terminal 11 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM connector.
2. Check continuity between BCM connector M3 terminal 22 and power window main switch connector D6 terminal 14.
   1. 22 (OR) - 14 (Y): Continuity should exist.
   Fig 8: Checking Continuity Between BCM Connector M3 Terminal 22 And Power Window Main Switch Connector D6 Terminal 14

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between BCM connector M3 terminal 22 and front power window switch (passenger side) connector D36 terminal 16.
   1. 22 (OR) - 16 (Y): Continuity should exist.

OK or NG

1. OK: Replace power window main switch.
2. NG: Repair or replace harness.

Fig 9: Checking Continuity Between BCM Connector M3 Terminal 22 And Front Power Window Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
