Home › Infiniti › 2005 › FX45 › Repair and Diagnosis › Brakes › Traction Control › Brake Control System › Steering Angle Sensor › Removal and Installation › Removal

Removal and Installation: Removal

  1. Remove spiral cable assembly. Refer to "SPIRAL CABLE ".
  2. Remove steering angle sensor from spiral cable assembly.

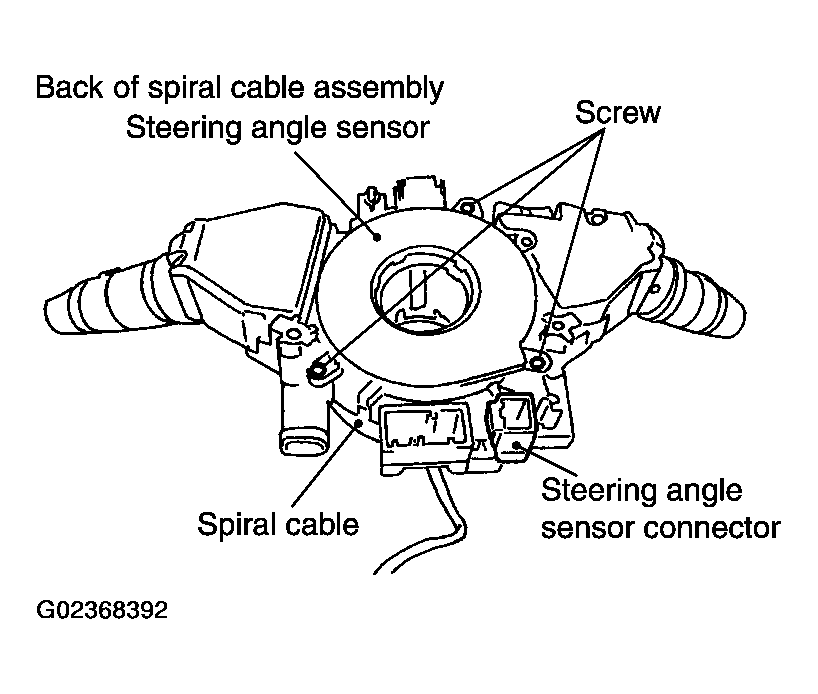

    Fig 1: Removing Steering Angle Sensor From Spiral Cable Assembly
    G02368392Courtesy of NISSAN MOTOR CO., U.S.A.
