Service Data And Specifications (SDS): Alternator

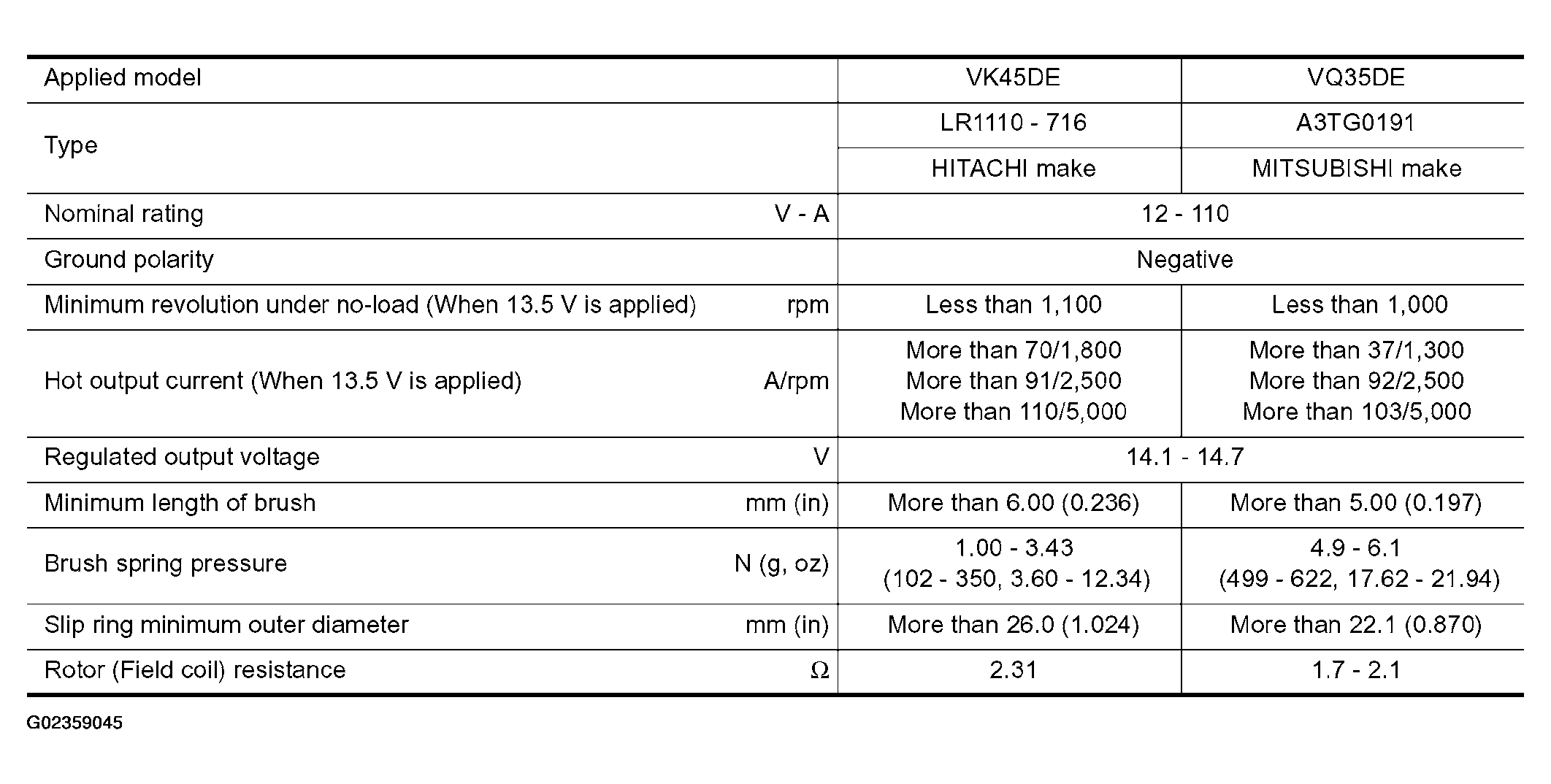

Fig 1: Alternator Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
