Lubrication System
›
System Chart
System Chart

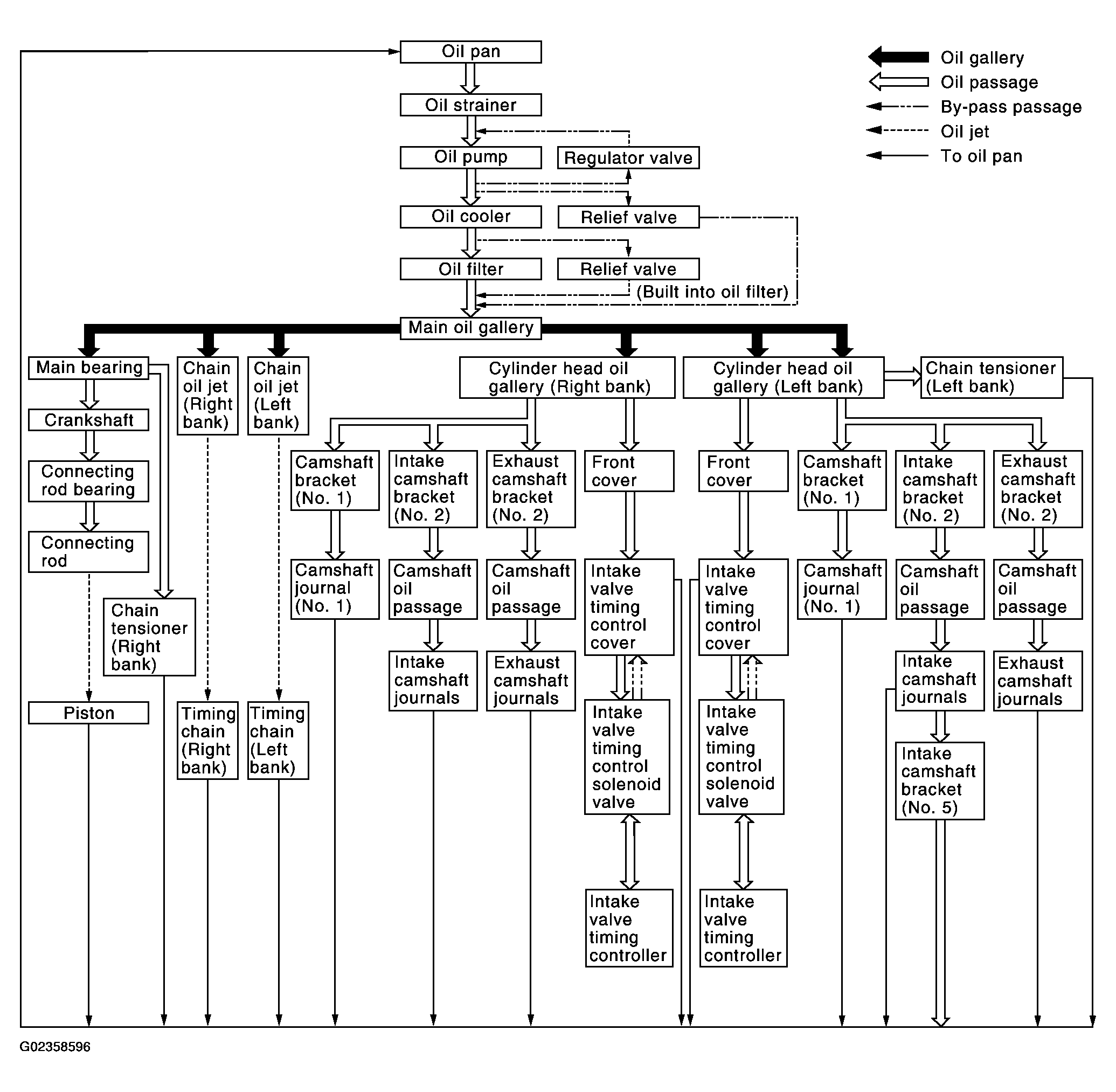

Fig 1: Lubrication System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
