Engine Control System - VK45DE
›
Basic Service Procedure
›
Idle Speed and Ignition Timing Check
›
Ignition Timing
›
Method B
Method B

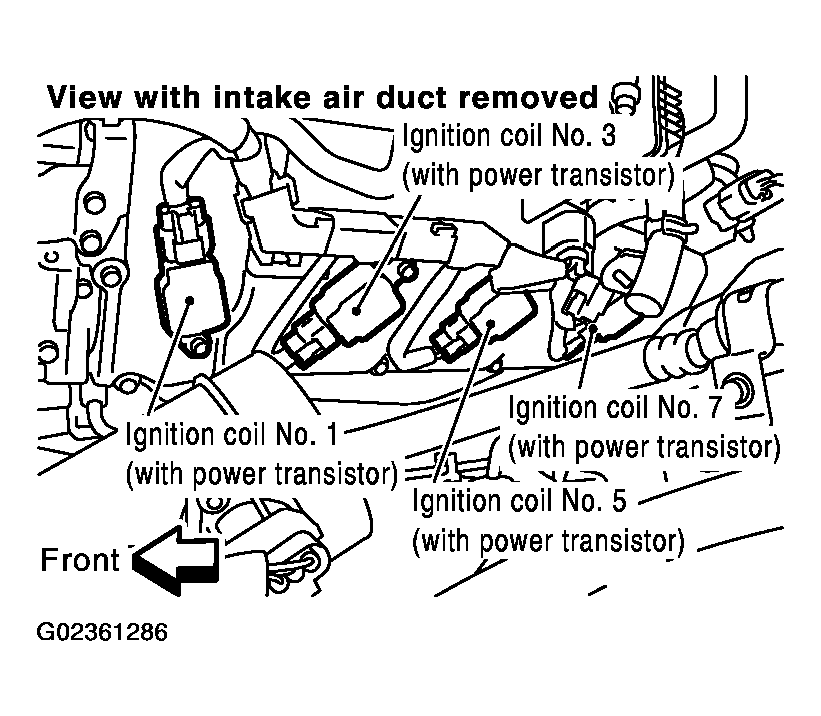

Remove ignition coil No. 1.
Fig 1: Removing Ignition Coil No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.

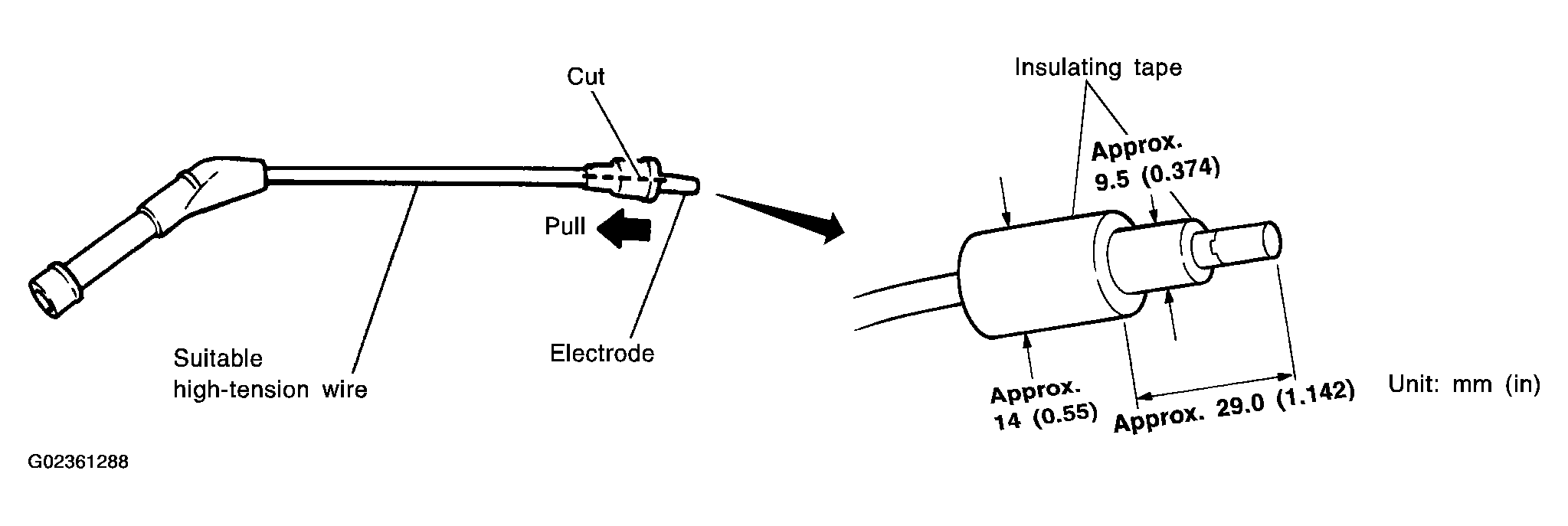

Connect ignition coil No. 1 and spark plug No. 1 with suitable high-tension wire as shown, and attach timing light clamp to this wire.
Fig 2: Connecting Ignition Coil No. 1 And Spark Plug No. 1 With Suitable High-Tension Wire (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

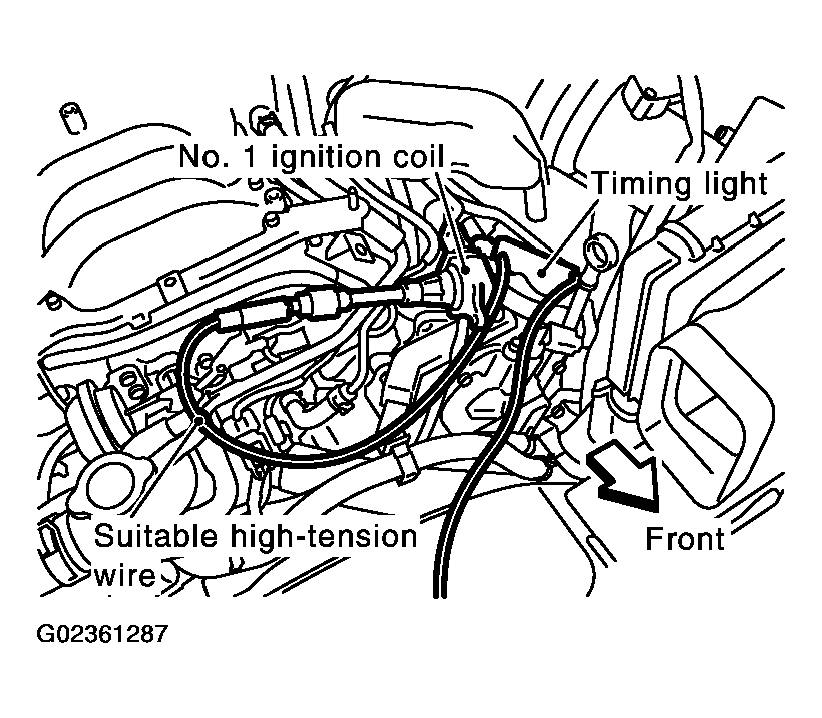

Fig 3: Connecting Ignition Coil No. 1 And Spark Plug No. 1 With Suitable High-Tension Wire (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.
Fig 4: Checking Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
