With CONSULT-II

Maintain the following conditions for at least 10 consecutive seconds.

ENGINE SPEED

ENG SPEED	More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S	More than 70°C (158°F)
Selector lever	1st or 2nd position
Driving location uphill	Driving vehicle uphill (Increased engine load will help maintain the driving conditions required for this test.)

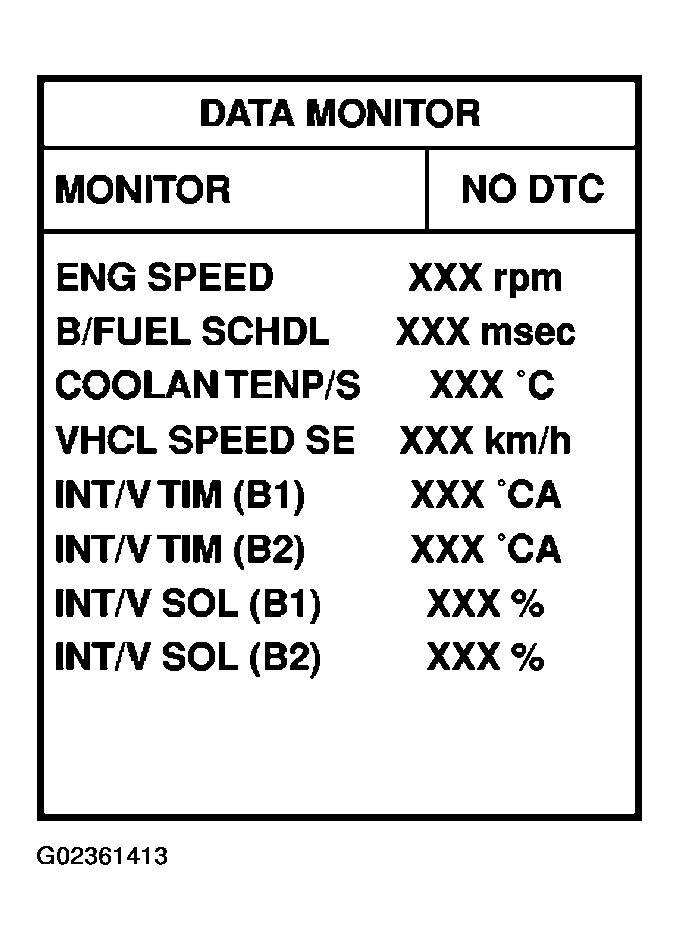

Fig 1: Identifying Consult-II Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Maintain the following conditions for at least 20 consecutive seconds.

ENGINE SPEED

ENG SPEED	Idle
COOLAN TEMP/S	More than 70°C (158°F)
Selector lever	P or N position
